FEATURES AND MENUS

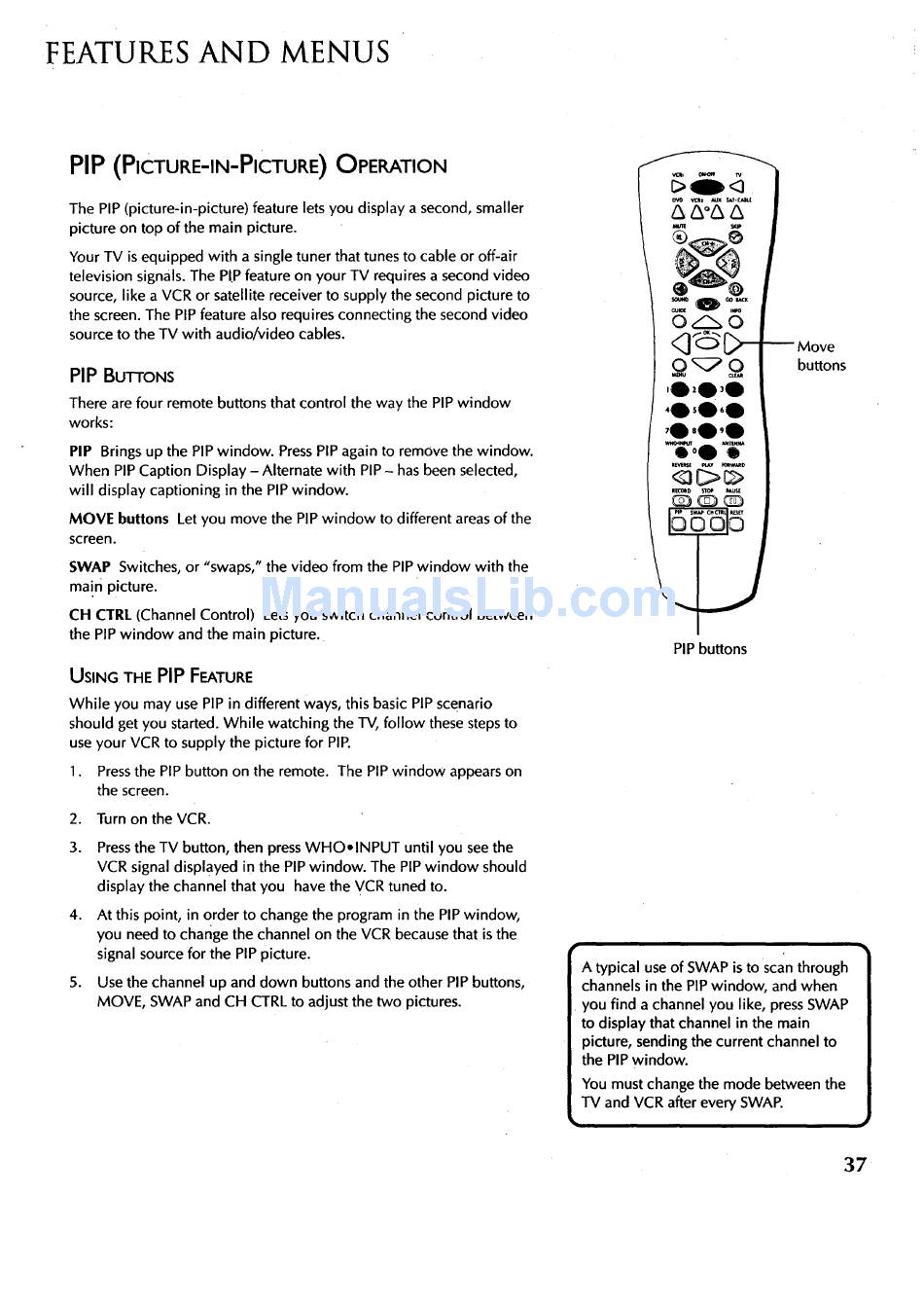

PIP
(PICTURE-IN-PICTURE) OPERATION
The PIP (picture-in-picture) feature lets you display a second, smaller
picture on top of the main picture.
Your TV is equipped with a single tuner that tunes to cable or off-air
television signals. The PIP feature on your TV requires a second video
source, like a VCR or satellite receiver to supply the second picture to
the screen. The PIP feature also requires connecting the second video
source to the TV with audio/video cables.
PIP Bul-rONS
There are four remote buttons that control the way the PIP window
works:
PIP Brings up the PIPwindow. Press PIP again to remove the window.
When PIP Caption Display - Alternate with PIP - has been selected,
will display captioning in the PIP window.
MOVE buttons Let you move the PIP window to different areas of the
screen.
SWAP Switches, or "swaps," the video from the PIPwindow with the
main picture.
CH CTRL (Channel Control) Lets you switch channel control between
the PIP window and the main picture.
USING THE
PIP
FEATURE
While you may use PIP in different ways, this basic PIP scenario
should get you started. While watching the TV, follow these steps to
use your VCR to supply the picture for PIP.
1. Press the PIP button on the remote. The PIP window appears on
the screen.
2. Turn on the VCR.
.
4.
S.
Press the TV button, then press WHO.INPUT until you see the
VCR signal displayed in the PIPwindow. The PIP window should
display the channel that you have the VCR tuned to.
At this point, in order to change the program in the PIP window,
you need to change the channel on the VCR because that is the
signal source for the PIP picture.
Use the channel up and down buttons and the other PIP buttons,
MOVE, SWAP and CH CTRL to adjust the two pictures.
O
CL_
,o,o,o
0,0'0
,O,O,Q
....
PIP buttons
Move
buttons
A typical use of SWAP is to scan through
channels in the PIP window, and when
• you find a channel you like, press SWAP
to display that channel in the main
picture, sending the current channel to
the PIPwindow.
You must change the mode between the
TV and VCR after every SWAP.
37
