The Basic Connection (Pip Not Available) - ProScan PS27500 User Manual

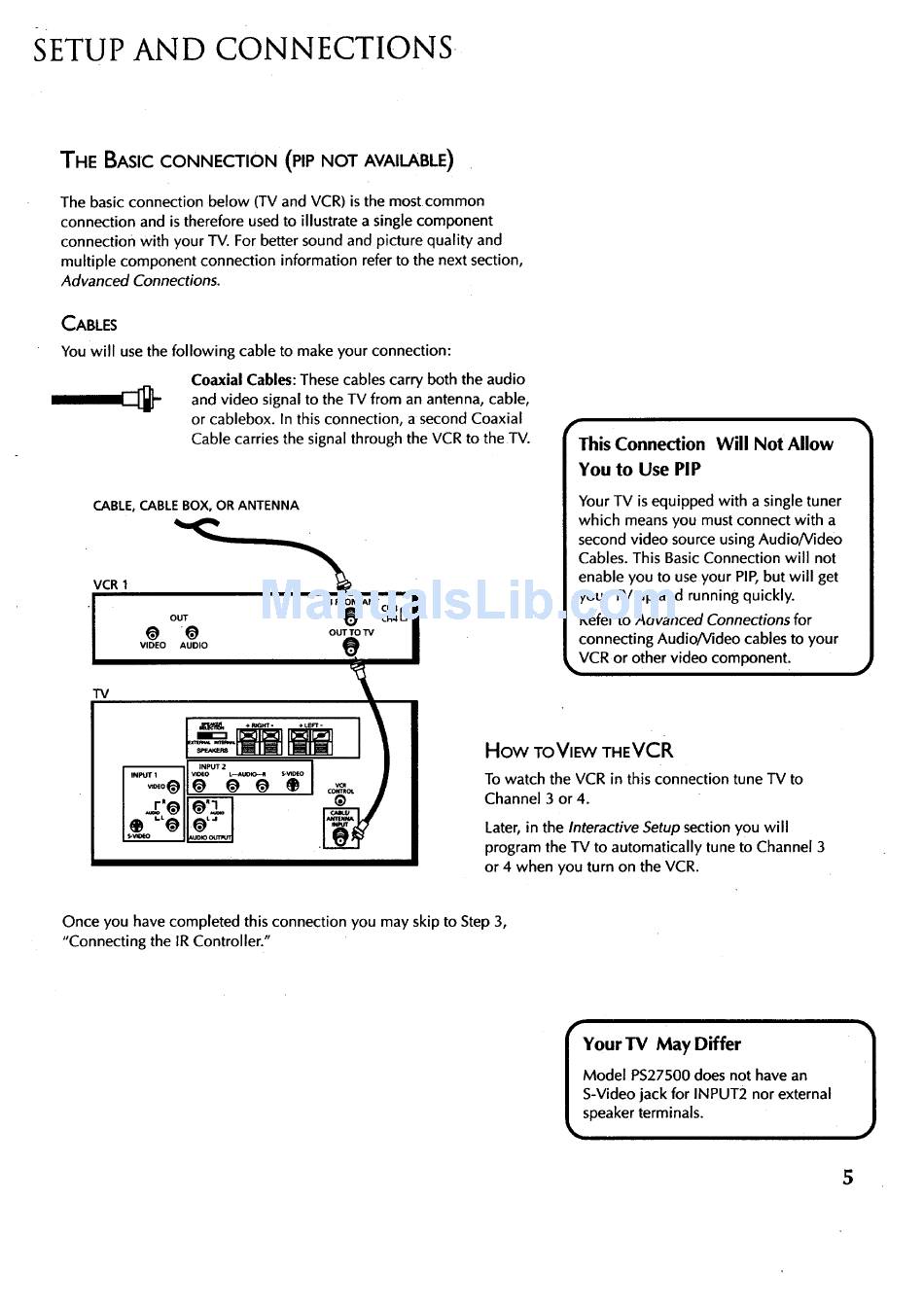

SETUP AND CONNECTIONS-
THE BASIC
CONNECTION (PIP NOT AVAILABLE)
The basic connection below (TV and VCR) is the most common
connection and is therefore used to illustrate a single component
connection with your TV. For better sound and picture quality and
multiple component connection information refer to the next section,
Advanced Connections.
CABLES
You will use the following cable to make your connection:
Coaxial Cables: These cables carry both the audio
and video signal to the TV from an antenna, cable,
or cablebox. In this connection, a second Coaxial
Cable carries the signal through the VCR to the TV.
CABLE, CABLE BOX, OR ANTENNA
VCR 1
"1
"Iv
OUT
@ @
VIDEO AUDIO
"%LoO
r'ol
IN FROM ANT CH3
OUT TO TV
e,
f
This Connection Will Not Allow
You to Use PIP
Your TV is equipped with a single tuner
which means you must connect with a
second video source using Audio/Video
Cables. This Basic Connection will not
enable you to use your PIP, but will get
your TV up and running quickly.
Refer to Advanced Connections for
connecting Audio/Video cables to your
_VCR or other video component.
How
ToVIEW THEVCR
To watch the VCR in this connection tune TV to
Channel 3 or 4.
Later, in the Interactive Setup section you will
program the TV to automatically tune to Channel 3
or 4 when you turn on the VCR.
Once you have completed this connection you may skip to Step 3,
"Connecting the IR Controller."
YourTV May Differ
Model PS27500 does not have an
S-Video jack for INPUT2 nor external
speaker terminals.
J
5
