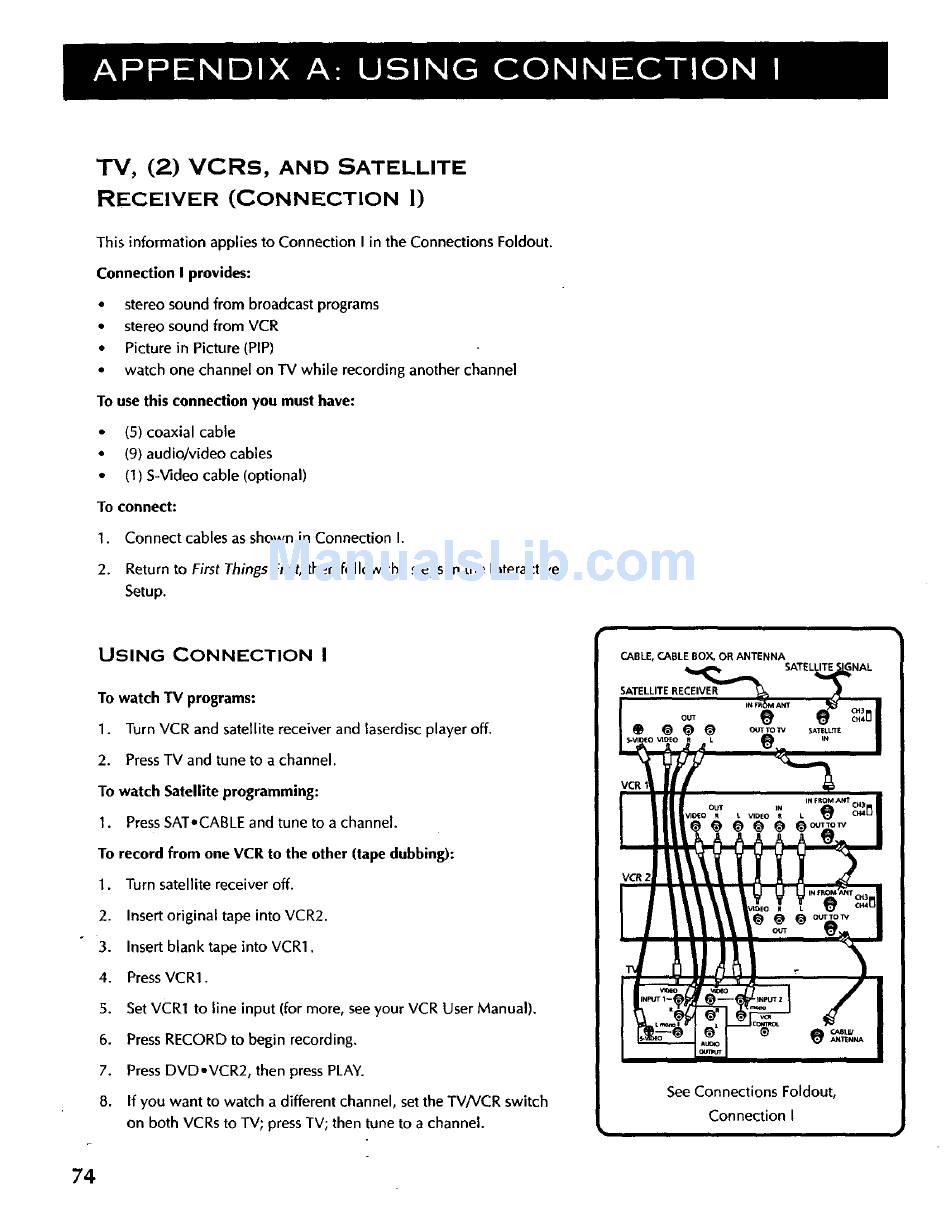

TV, (2) VCRs, AND SATELLITE
RECEIVER (CONNECTION
I)
This information applies to Connection I in the Connections Foldout.
Connection I provides:
• stereo sound from broadcast programs
• stereo sound from VCR
• Picture in Picture (PIP)
• watch one channel on TV while recording another channel
To use this connection you must have:
• (5) coaxial cable
• (9) audio/video cables
• (I) S-Video cable (optional)
To connect:
I. Connect cables as shown in Connection I.
2. Return to First Things First, then follow the steps in the Interactive
Setup.
USING CONNECTION
I
To watch TV programs:
I. Turn VCR and satellite receiver and laserdiscplayer off.
2. Press TV and tune to a channel.
To watch Satellite programming:
I. Press SAT.CABLE and tune to a channel.
To record from one VCR to the other (tape dubbing):
I. Turn satellite receiver off.
2. Insert original tape into VCR2.
3. Insert blank tape into VCRI.
4. Press VCRI.
5. Set VCRI to line input (for more, see your VCR User Manual),
6. Press RECORD to begin recording,
7. Press DVDoVCR2, then press PLAY.
8. If you want to watch a different channel, set the TViVCR switch
on both VCRs to TV; press TV; then tune to a channel.
CABLE, CABLE BOX, OR ANTENNA
SATELLITE
SATELLITERECEIVER
0
See Connections Foldout,
Connection I
