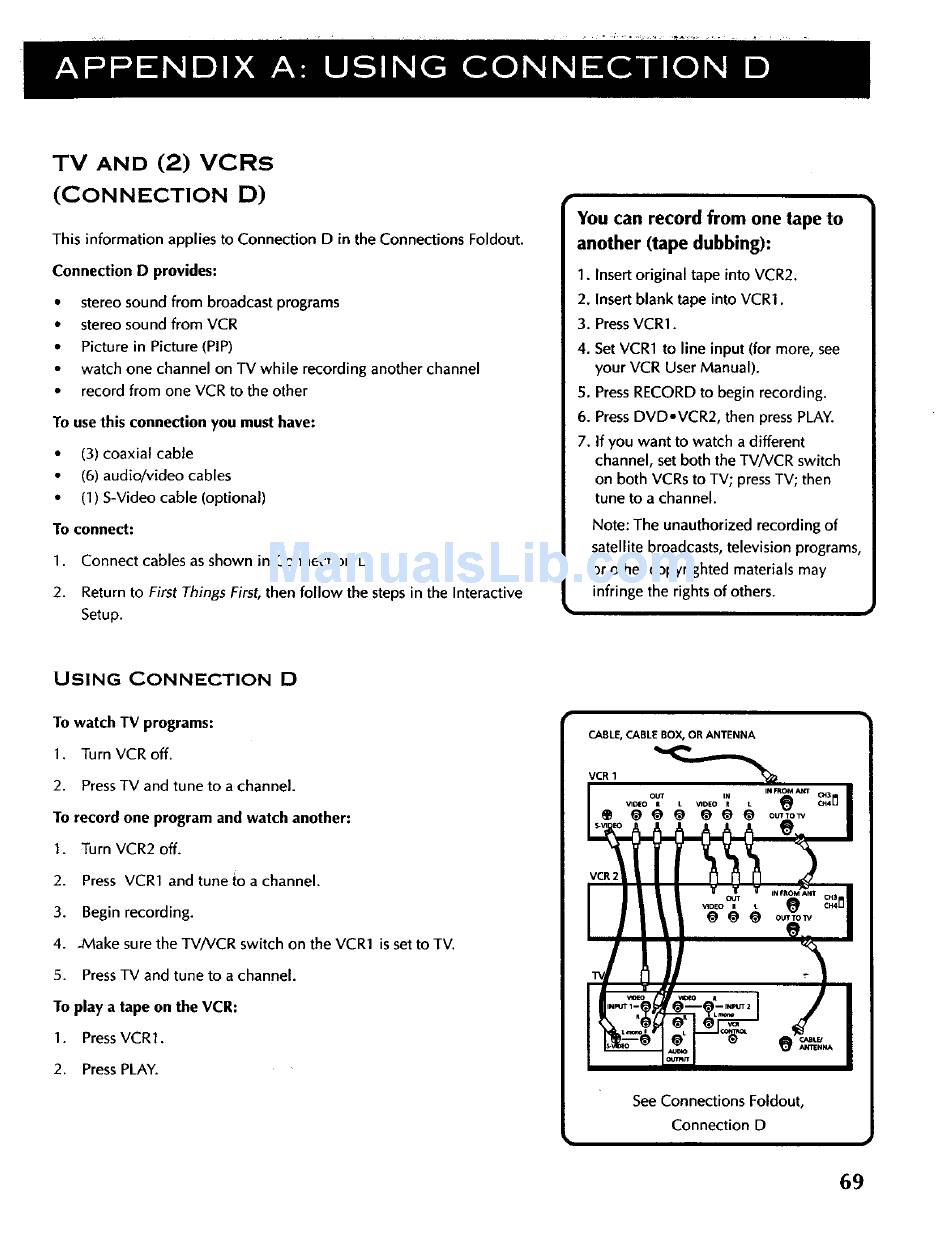

TV AND (2) VCRS
(CONNECTION D)
This information applies to Connection D in the Connections Foldout.
Connection D provides:
• stereo sound from broadcast programs
• stereo sound from VCR
• Picture in Picture (PIP)
• watch one channel on TV while recording another channel
• record from one VCR to the other
To use this connection you must have:
• (3) coaxial cable
• (6) audio/video cables
• (I) S-Video cable(optional)
To conned:
I. Connect cables as shown in Connection D.
2. Return to First Things First, then follow the steps in the Interactive
Setup.
You can record from one tape to
another (tape dubbing):
1. Insert original tape into VCR2.
2. Insert blank tape into VCR1.
3. Press VCR1.
4. Set VCR1 to line input (for more, see
your VCR User Manual).
5. Press RECORD to begin recording.
6. Press DVD-VCR2, then press PLAY.
7. If you want to watch a different
channel, set both the TViVCR switch
on both VCRs to TV; press TV; then
tune to a channel.
Note: The unauthorized recording of
satellite broadcasts, television programs,
or other copyrighted materials may
infringe the rights of others.
USING CONNECTION
D
To watch TV programs:
I. Turn VCR off.
2. PressTV and tune to a channel.
TOrecord one program and watch another:
1. Turn VCR2 off.
2. Press VCR1 and tune to a channel.
3. Begin recording.
4. -Make sure the TV/VCR switch on the VCR1 is set to TV.
5. Press TV and tune to a channel.
To play a tape on the VCR:
1. PressVCR1.
2. Press PLAY.
CABLE, CABLE BOX, OR ANTENNA
See Connections Foldout,
Connection D
69
