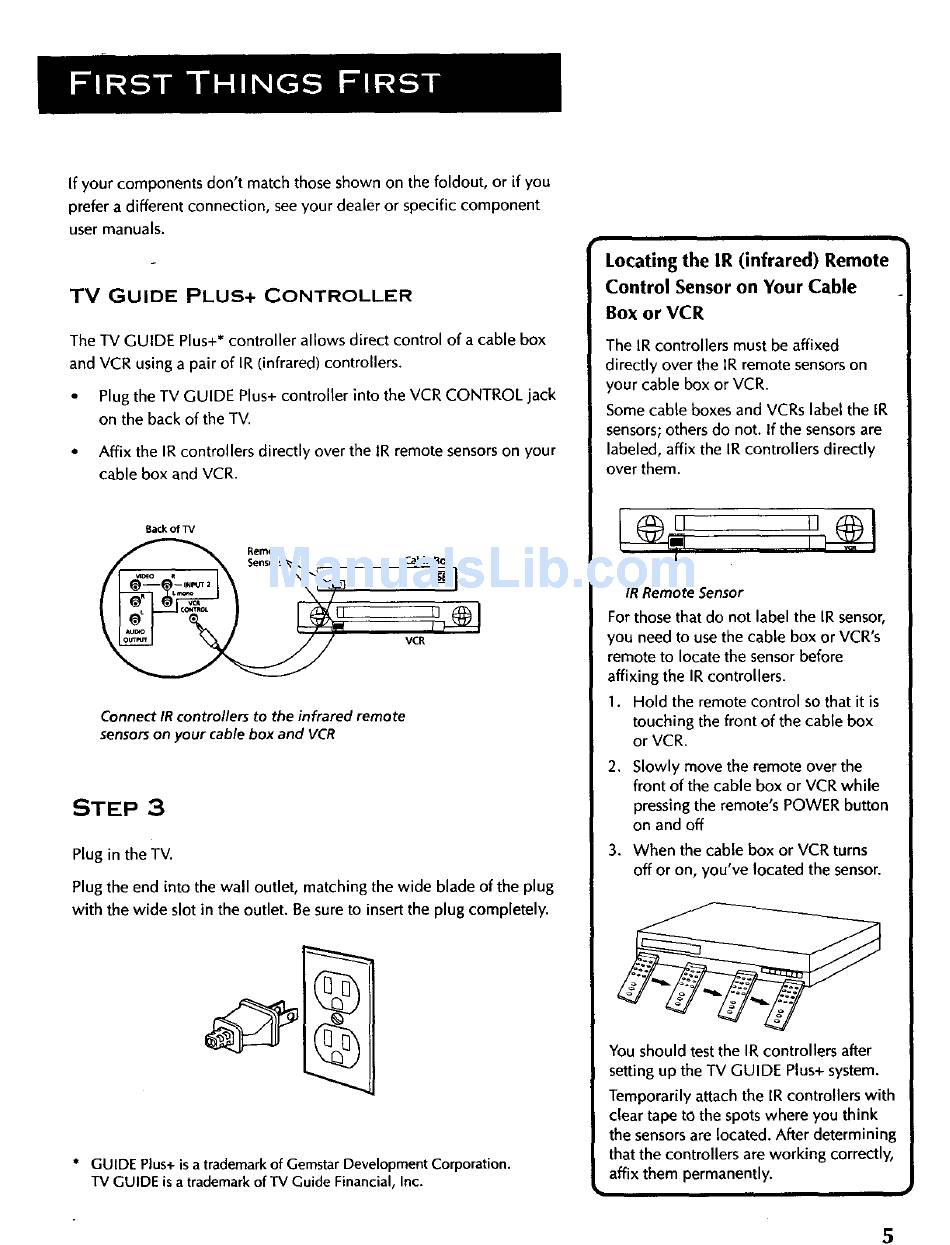

Tv Guide Plus+ Controller - ProScan PS27125 User Manual

If your components don't match those shown on the foldout, or if you
prefer a different connection, see your dealer or specific component
user manuals.
TV GUIDE PLUS+ CONTROLLER
The TV GUIDE Plus+* controller allows direct control of a cable box
and VCR using a pair of IR (infrared) controllers.
• Plug the TV GUIDE Plus+ controller into the VCR CONTROL jack
on the back of the TV.
• Affix the IR controllers directly over the lR remote sensors on your
cable box and VCR.
Back of TV
vcRI _J
Connect IR controllers to the infrared remote
sensors on your cable box and VCR
STEP 3
Plug in the TV.
Plug the end into the wall outlet, matching the wide blade of the plug
with the wide slot in the outlet. Be sure to insert the plug completely.
* GUIDE Plus+ is a trademark of Gemstar Development Corporation.
TV GUIDE is a trademark of'IV Guide Financial, Inc.
Locating the IR (infrared) Remote
Control Sensor on Your Cable
Box or VCR
The IR controllers must be affixed
directly over the IR remote sensors on
your cable box or VCR.
Some cable boxes and VCRs label the IR
sensors; others do not. If the sensors are
labeled, affix the IR controllers directly
over them.
IR Remote Sensor
For those that do not label the IR sensor,
you need to use the cable box or VCR's
remote to locate the sensor before
affixing the IR controllers.
1. Hold the remote control so that it is
touching the front of the cable box
or VCR.
2. Slowly move the remote over the
front of the cable box or VCR while
pressing the remote's POWER button
on and off
3. When the cable box or VCR turns
off or on, you've located the sensor.
You should test the IR controllers after
setting up the TV GUIDE Plus+ system.
Temporarily attach the IR controllers with
clear tape to the spots where you think
the sensors are located. After determining
that the controllers are working correctly,
affix them permanently.
5
