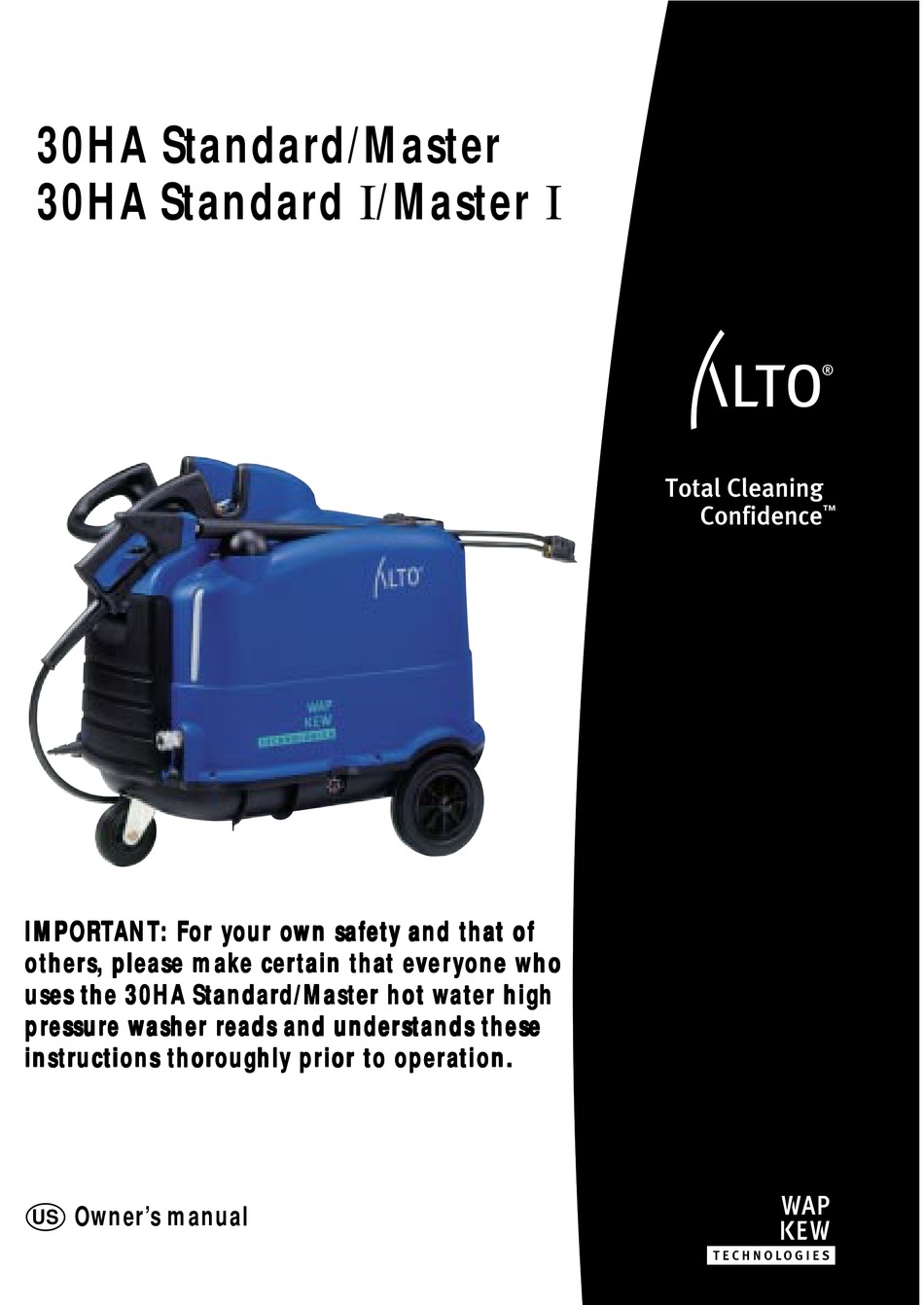

30HA Standard/Master 30HA Standard I/Master I IMPOR IMPORT T T T T ANT IMPOR ANT: F : For y or y or your o or y our o our o our own saf IMPOR IMPOR or y our o other...
Page 3
Congratulations! We’d like to say, “Thank you!” for choosing one of the ALTO 30HA series machines. This operator’s manual is provided with your new high pressure washer to ensure that you obtain the best results, in the safest manner, with your new machine. IMPORTANT: This machine is a High Pressure Washer, capable of producing as much as 2100 psi.
IMPORTANT: Read this instruction manual before you start up your high pressure washer for the first time. This machine is a hot water high pressure washer producing a water jet under high pressure and of a high temperature which is why severe injuries and scalding can occur if the safety precautions are not observed. Therefore a complete understanding of the contents of this instruction manual is required in order to pre- vent injuries to yourself, objects and persons near-by, and the machine itself.
1.0 Technical data Model Working pressure Permissible overpressure Volumetric flow Max. temperature, inlet water Rated power Fuse Water temperature Protection class Type of protection Water volume of the heater coil Heating capacity Fuel tank capacity Cleaning agent tank capacity Permissible water inlet pressure Dimensions L x W x H Mahine weight Recoil forces...
2.0 Instructions for use Before starting your high pressure washer for the first time, we advise you to read through the following sections: 2.0 Instructions for use and 3.0 Operating instructions and to follow all instructions to ensure the protection of user, surroundings and machine. This Product Is To Be Used Only By Trained Operators.
27. WARNING! The integrity of high pressure hoses, nozzles and connections are important for safety when operating the machine. Only use the high temperature high pressure hoses (with an imprinted max. temperature of 150°C), nozzles and connections prescribed by ALTO. 28.
Use only 3-wire extension cords that have 3-prong, grounding-type plugs and 3-pole cord connectors that accept the plug from the product. Use only extension cords that are intended for outdoor use. These exten- sion cords are identified by a marking "Acceptable for use with outdoor appliances; store indoors while not in use".
3.0 Operating instructions 3.1 Connections High pressure hose The high pressure hose with imprinted max. working pressure and temperature (150°C) should be attached to outlet socket (1) using the quick coupler (6). The total length of the high pressure hose must not exceed 66 ft.
Refueling Filling of fuel for the burner through the filler opening (4). Capacity of tank: 4 gal. Only use clean heating oil, diesel fuel, or kerosene. The fuel level can be read on the level indicator (5). If the burner stops unintentionally, check the fuel level in the tank and if necessary, refill (at least 2 gal). To protect the life of the fuel pump, it is important that the machine is not allowed to run without fuel in the tank.
Scale prevention - No Scale To avoid scaling of the burner coil, and thus ensure optimum operation, an scale preventer - “No Scale” should be added. This product is available from your ALTO distributor. Fill through the socket (13) and it will automatically be added to the water at the proper rate.
3.4 Temperature control Choose the desired temperature with the control knob (16). Note: If the machine is put away immediately after hot water or steam operation, it should be cooled in “cold water” operation until the temperature is below 120°F. This will take approximately 2 minutes. IMPORTANT (only 30HA Master): Adjustment to temperatures above 176°F should be made with the trigger released.
3.6 End of operation Turn the control knob (16) to position “cold water” (in the blue sector) and squeeze the trigger until the temperature is below 120°F. The cooling period from 176°F to 120°F is approx. 2 min. Then, turn off the water supply and stop the machine by turning the control knob (16) to position - O -. Now the high pressure hose can be detached.
Operating instructions 3.8 Storage Frost-free room or anti-freeze solution! We recommend you to store the machine in a frost-free room between cleaning tasks. The machine must be emptied of water prior to storing for a longer period. This is done as follows: 1.
4.0 Applications and working methods 4.1 Applications Typical applications for this product are: Agriculture Cleaning machinery, implements, stalls, and buildings Transport Cleaning vehicles, engine rooms, and large parts Construction Building renovation and maintenance, cleaning vehicles and equipment Industry Degreasing and cleaning of machines, tooling and vehicles. Service Contract cleaning of vehicles, public facilities, and many degreasing tasks.
4.5 Working methods Your high pressure washer has been developed for cleaning according to the so-called „2-step method“. STEP 1 Application of detergent STEP 2 High pressure cleaning In practice the working process is dictated by the actual job, but as a starting point, the following working method can be described: 1.
6.0 Maintenance 6.1 General To ensure that your ALTO high pressure washer is always in an operational condition it is advisable to have it checked by an ALTO service technician at regular intervals. However, with respect to exposed components, a minimal maintenance program helps ensure a prolonged and problem-free operation. Therefore, it’s a good idea to make a habit of the following: Before attaching the inlet water or high pressure hose, the quick couplers should be free of dirt and sand.
7.0 Troubleshooting chart You have chosen the best quality and deserve the best performance. To speed returning the machine to service, check the following before contacting the nearest ALTO service organization: Fault Machine will not start Machine stops unintentionally Pressure fluctuating and pulsating Pressure varies from max.
