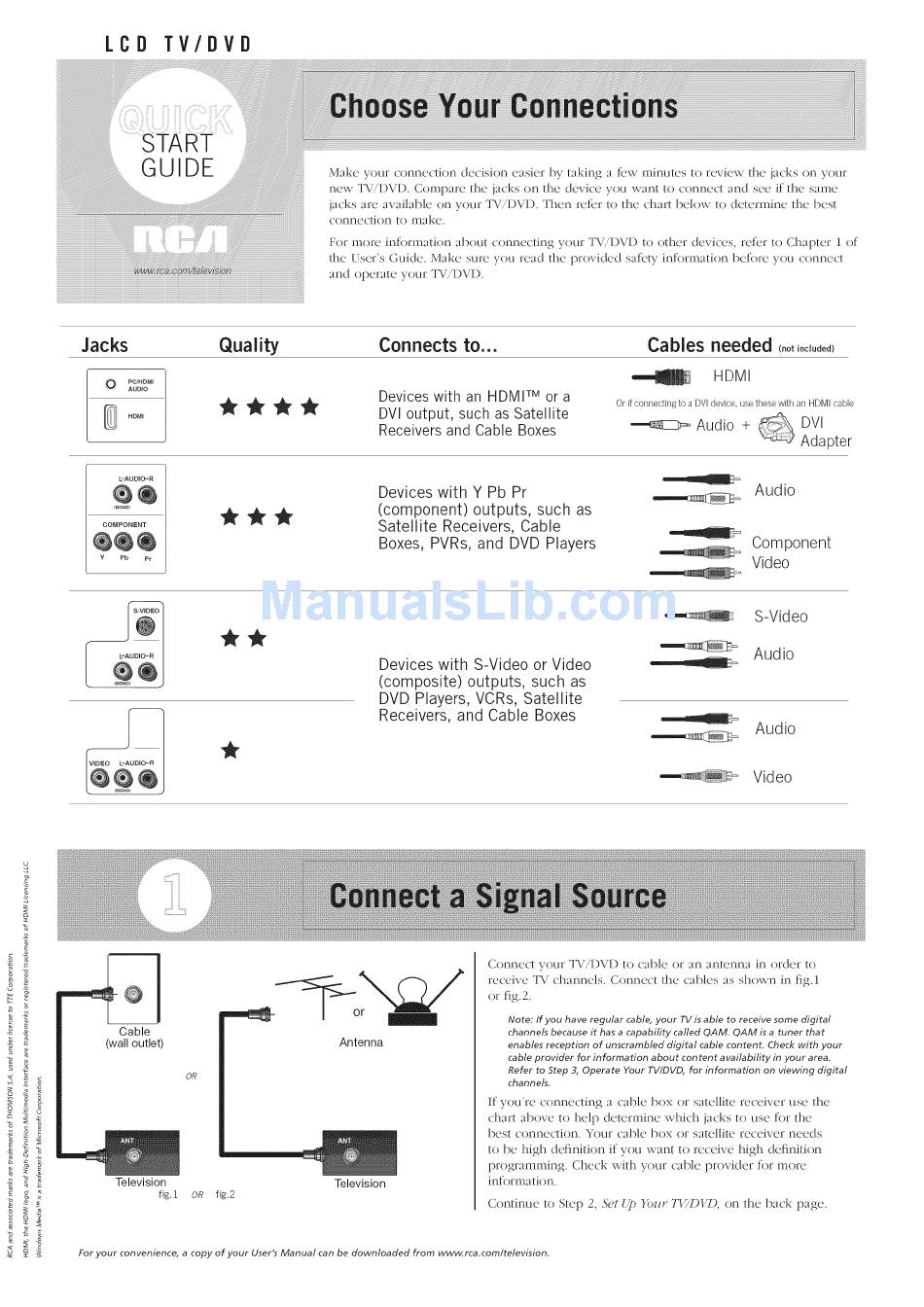

RCA L32WD26D Quick Start Manual

LCI] TV/I]VB
GUIDE
Make your connection decision easier by taking a few minutes to review the jacks on your
new TVi/1)V1). Compare tl_e jacks on the device you want to connect and see if the same
jacks are available on your TVi/1)V1). Then reKr to the chart below to determine the best
connection to make.
For more information about connecting your TV/1)V1) to other devices, refer to Chapter 1 of
the User's Guide. Make sure you read the provided safety information before you connect
and operate your TV/1)V1).
Jacks
PC/HDM[
AUDIO
HDMI
Quality Connects to... Cables needed
(not included)
Jr
Devices with an HDMI
TM
or a
DVI output, such as Satellite
Receivers and Cable Boxes
HDMI
Or if connecting to a DVI device, use these with an HDMI cable
Audio + _ DVi
Adapter
L-AUDIO-R
(MONO)
COMPONENT
Y Pb Pr
Devices with Y Pb Pr
(component) outputs, such as
Satellite Receivers, Cable
Boxes, PVRs, and DVD Players
Audio
Component
Video
VIDEO
L-AUDIO-R
(MONO)
L-AUDIO-R
(MONO_
Devices with S-Video or Video
(composite) outputs, such as
DVD Players, VCRs, Satellite
Receivers, and Cable Boxes
S-Video
Audio
,-,,,,,,_,_c==
Audio
Video
Cable
(wall outlet)
OR
Television
fig.1 OR fig.2
Antenna
Television
Connect your TV/DVD to cable or an antenna in order to
receive TV channels. Connect the cables as shown in fig.1
or fig.2.
Note: If you have regular cable, your TV is able to receive some digital
channels because it has a capabifity tailed QAM. QAM is a tuner that
enables reception of unscrambled digital cable content. Check with your
cable provider for information about content availability in your area.
Refer to Step 3, Operate Your TV/DVD, for information on viewing digital
channels.
If you're connecting a cable box or satellite receiver use the
chart above to help determine which jacks to use for the
best connection. Your cable box or satellite receiver needs
to be high definition if you want to receive high definition
programming. Check with your cable provider for more
inf()rma tion.
Continue to Step 2, Set L_) Yore" TV/DVD, on the back page.
For your convenience, a copy of your User's Manual can be downloaded from www.rca,com/television,
