{_C!__,C o,t d e r #Co n n e c t i,olnlsi

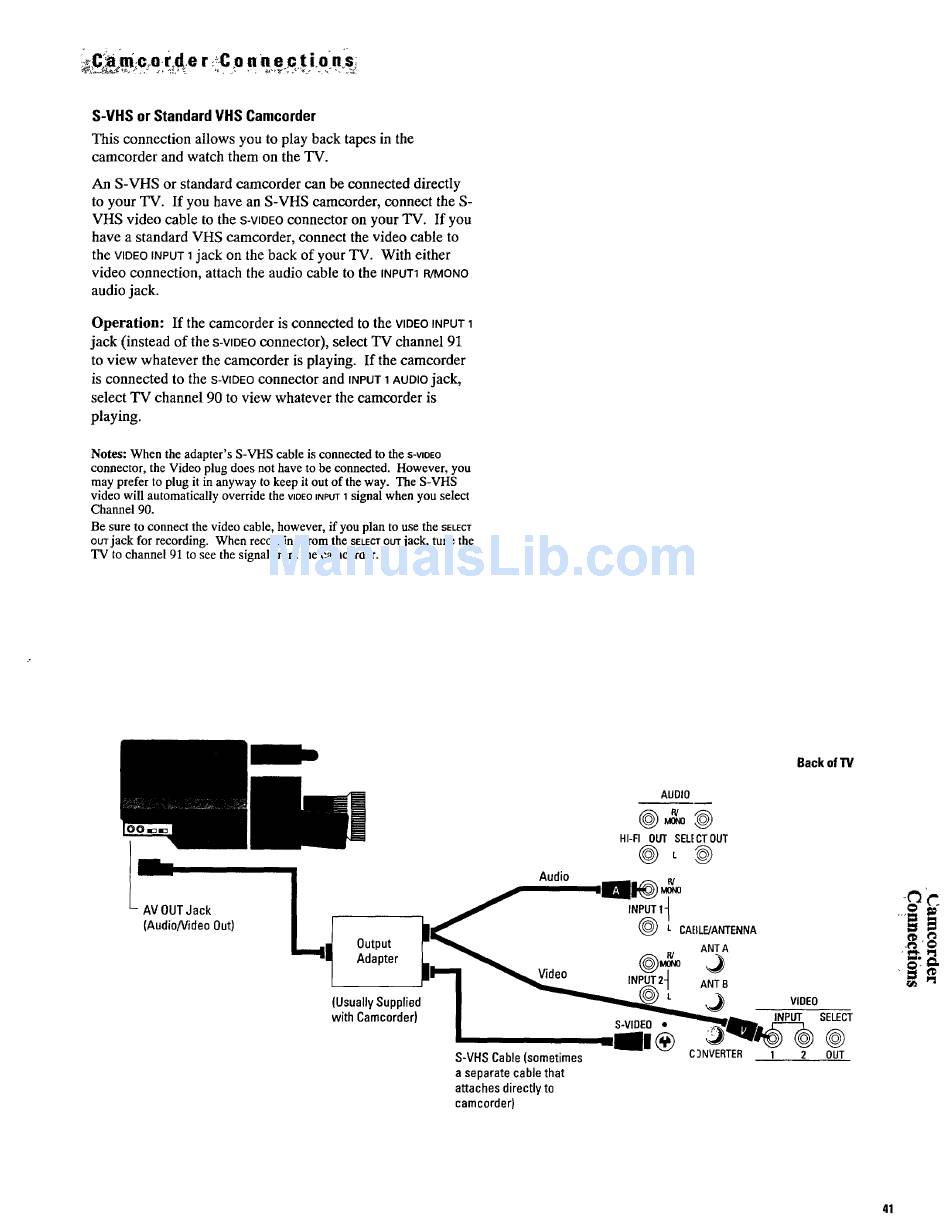

S-VHS or Standard VHS Camcorder
This connection allows you to play back tapes in the
camcorder and watch them on the TV.
An S-VHS or standard camcorder can be connected directly
to your TV. If you have an S-VHS camcorder, connect the S-
VHS video cable to the S-VIOEO connector on your TV. If you
have a standard VHS camcorder, connect the video cable to
the VIDEO INPUT 1jack on the back of your TV. With either
video connection, attach the audio cable to the INPO'rlR/MONO
audio jack.
Operation: If the camcorder is connected to the VIDEO INPUT 1
jack (instead of the S-VIOEO connector), select TV channel 91
to view whatever the camcorder is playing. If the camcorder
is connected to the S-VIDEO connector and _NPUT 1 AUDIO jack,
select TV channel 90 to view whatever the camcorder is
playing.
Notes: When the adapter's S-VHS cable is connected to the s-vmeo
connector, the Video plug does not have to be connected. However, you
may prefer to plug it in anyway to keep it out of the way. The S-VHS
video will automatically override the VJOEO I NPUT 1 signal when you select
Channel 90.
Be sure to connect the video cable, however, if you plan to use the SELECT
OUTjack for recording. When recording from the SELECT OUTjack, tune the
TV to channel 91 to see the signal from the camcorder.
L
I_V 0UT Jack
(Audio/Video Out)
Back ofTV
AUDIO
HI-FI OUT $ELECTOUT
• Audio _v
Li4 i 0A::Ptte r ;___ deo IN PU_2 _L/_ _ _:
(Usually Supplied I _ ,_ _ VIDE_.__O
withCamcorder) |
S.VIDE0 e__._ ,_llllr= _ SELECT
@ @
S-VHS Cable (sometimes C_NVERTER 1 2 OUT
a separate cable that
attaches d irectly t o
camcorder)
41
