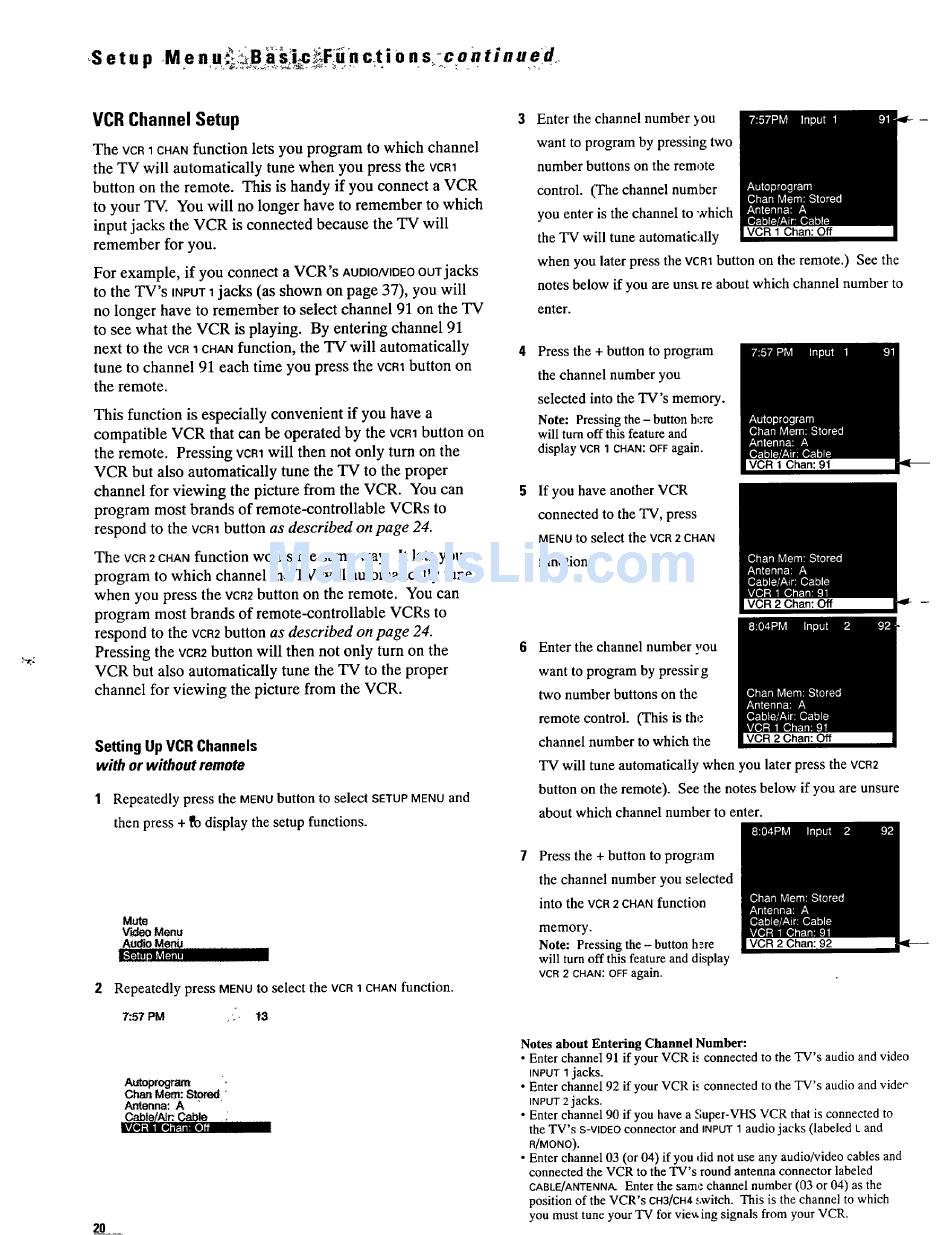

ProScan PS20112 Owner's Manual page 24

,-Setu p M e n u-:<°d3a sz_c]_F,un c,ts 0 n s,-con tinued,
VCR Channel Setup
The VCR 1CHAN function lets you program to which channel
the TV will automatically tune when you press the vcR1
button on the remote. This is handy if you connect a VCR
to your TV. You will no longer have to remember to which
input jacks the VCR is connected because the TV will
remember for you.
For example, if you connect a VCR's
AUDIO/VIDEO
OUT jacks
to the TV's INPUT 1jacks (as shown on page 37), you will
no longer have to remember to select channel 91 on the TV
to see what the VCR is playing. By entering channel 91
next to the vca _CHAN function, the TV will automatically
tune to channel 91 each time you press the vcaa button on
the remote.
This function is especially convenient if you have a
compatible VCR that can be operated by the VCR_ button on
the remote. Pressing vcal will then not only turn on the
VCR but also automatically tune the TV to the proper
channel for viewing the picture from the VCR. You can
program most brands of remote-controllable VCRs to
respond to the VCRabutton as described on page 24.
The VCR 2CHAN function works the same way. It lets you
program to which channel the TV will automatically tune
when you press the vca2 button on the remote. You can
program most brands of remote-controllable VCRs to
respond to the VCR2 button as described on page 24.
Pressing the VCR2 button will then not only turn on the
VCR but also automatically tune the TV to the proper
channel for viewing the picture from the VCR.
Setting Up VCR Channels
with or without remote
1 Repeatedly press the
MENU
button to select
SETUP
MENUand
then press + _ display the setup functions.
Mute
Vkleo Menu
udio MerdJ
Repeatedly press MENUto select the VCR1CHANfunction.
7:57 PM _3
Autoprogram
ChartMere:Stored,"
Antenna: A
CabW_J_ ¢__le
'
iV_O] _=ile_ n_._ilO]_ l i III I
20
Enter the channel number }ou
want to program by pressing two
number buttons on the remote
control. (The channel number
you enter is the channel to which
the TV will tune automatically
when you later press the VCR_button on the remote.) See the
notes below if you are unst re about which channel number to
enter.
Press the + button to program
the channel number you
selected into the TV's memory.
Note: Pressing the - button here
will turn off this feature and
display VCR_ eHAN:OFFagain.
If you have another VCR
connected to the TV, press
MENUto select the VCRz
CHAN
function.
Enter the channel number you
want to program by pressirg
two number buttons on the
remote control. (This is the
channel number to which the
TV will tune automatically when you later press the VCR2
button on the remote). See the notes below if you are unsure
about which channel number to enter.
Press the + button to program
the channel number you selected
into the VCR2 CHANfunction
memory.
Note: Pressing the - button h_re
will turn off this feature and display
VCR 2 CHAN: OFF
again.
Notes about Entering Channel Number:
• Enter channel 91 if your VCR i_connected to the TV's audio and video
INPUT
1
jacks.
• Enter channel 92 if your VCR i,.connected to the TV's audio and vide("
INPUT 2
jacks•
• Enter channel 90 if you have a Super-VHS VCR that is connected to
the TV's S-VIDEO connector and iNPUT I audio jacks (labeled Land
R/MONO),
• Enter channel 03 (or 04) if you did not use any audio/video cables and
connected the VCR to the TV's round antenna connector labeled
CABLE/ANTENNA.
Enter the sam,',channel number (03 or 04) as the
position of the VCR's CH3/CH4 .,.witch. This is the channel to which
you must tune your TV for view ing signals from your VCR.
