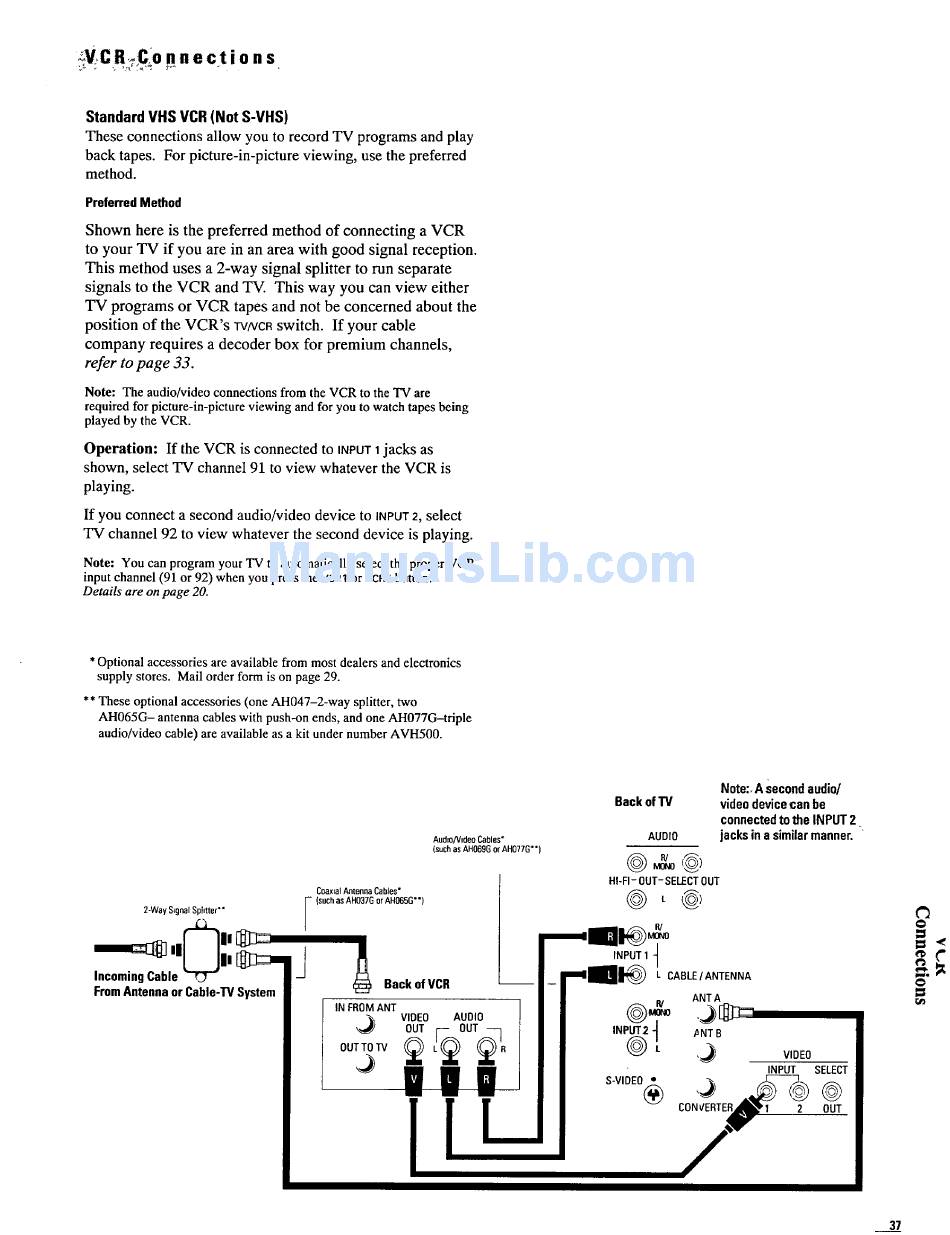

:_V_,C R_:¢.o nnecti o n s
Standard VHS VCR(Not S-VHS)
These connections allow you to record TV programs and play
back tapes. For picture-in-picture viewing, use the preferred
method.
Preferred Method
Shown here is the preferred method of connecting a VCR
to your TV if you are in an area with good signal reception.
This method uses a 2-way signal splitter to run separate
signals to the VCR and TV. This way you can view either
TV programs or VCR tapes and not be concerned about the
position of the VCR's rv/vca switch. If your cable
company requires a decoder box for premium channels,
refer to page 33.
Note: The audio/video connections from the VCR to the TV are
required for picture-in-picture viewing and for you to watch tapes being
played by the VCR.
Operation:
If the VCR is connected to INPUT 1jacks as
shown, select TV channel 91 to view whatever the VCR is
playing.
If you connect a second audio/video device to INPUT 2, select
TV channel 92 to view whatever the second device is playing.
Note: You can program your TV to automatically select the proper VCR
input channel (91 or 92) when you press the VCR1 or VCR2 button.
Details are on page 20.
*Optional accessories are available from most dealers and electronics
supply stores. Mail order form is on page 29.
** These optional accessories (one AH047-2-way splitter, two
AH065G- antenna cables with push-on ends, and one AH077G-triple
audio/video cable) are available as a kit under number AVH500.
2-Way S_goalSplitter**
From Antenna or Cable-TV System
Audio/Video Cables*
(such as AH069Gor AH077G**)
CoaxialAntennaCables*
I (such as AH037Gor AH065G*')
J
Back of VCR
IN FROM ANT
OUT TOTV
Note:, A second audio/
Back of TV video device can be
connected to the INPUT 2
AUDIO jacks in a similar manner.
.,F,-OUT-SE, CT00T
INPUT1
_ -,lUI L CABLE/ANTEN.A
VIDEO AUDIO
OUT _
OUT
ANTA
.aNTB
@' V,OEO
INPUT SELECT
• J,
¢'1
r_
37
