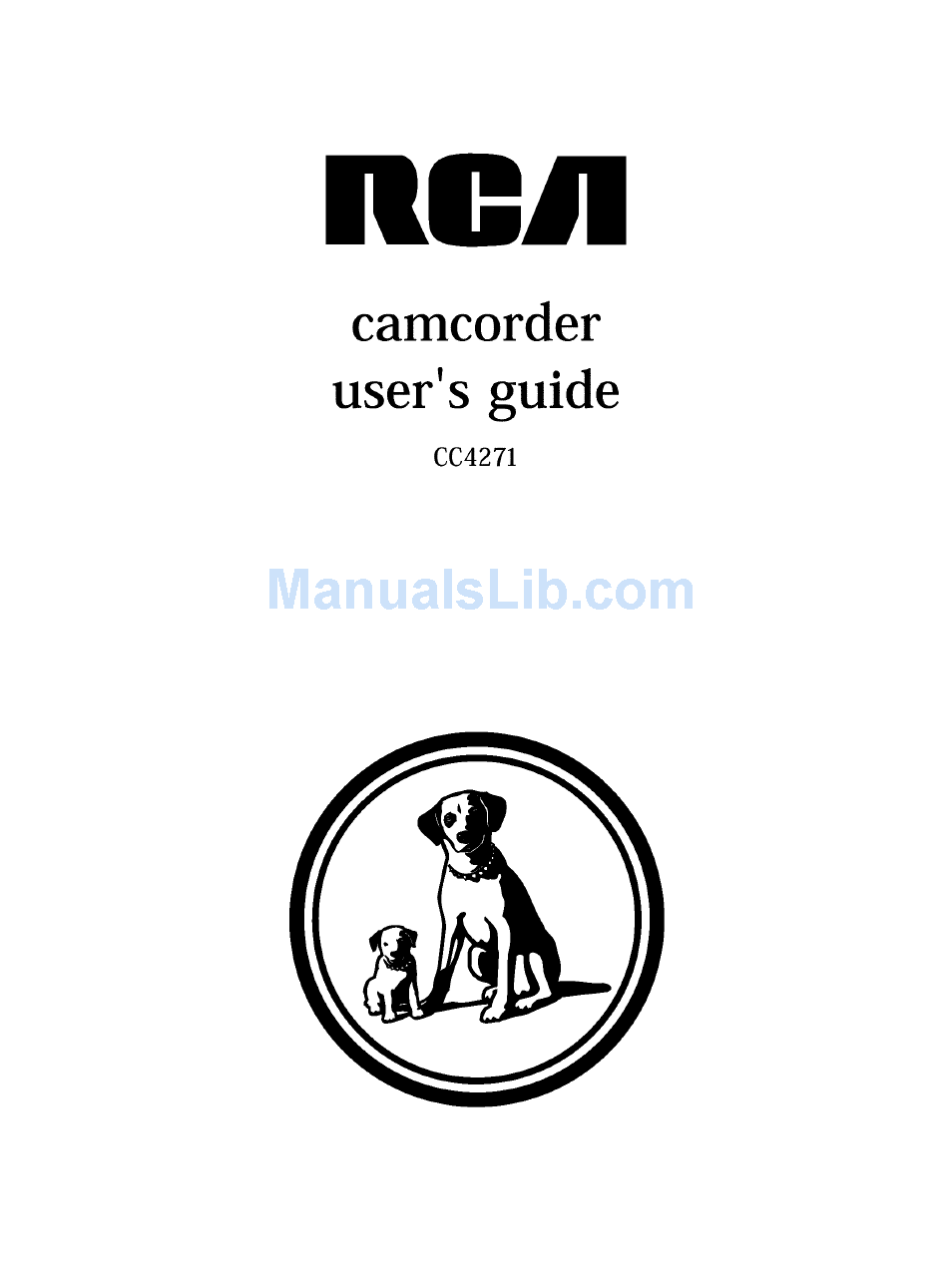

  • Page 1 camcorder user's guide CC4271...
  • Page 2 Important Safety Information Be sure to read all the safety information before you begin to use this product. camcorder or AC adapter/charger to rain or moisture. I WARNING: To reduce the risk of fire or shock hazard, do not expose This symbol indicates "dangerous...

  • Page 3: Table Of Contents

    We want to make sure you enjoy your new camcorder. If you have any questions, call: Cnmeorder Exchange Warranty ... 800-283-6503 (pages 60-6I) Customer Service ........800-336-1900 (page 59) Accessories ..........800-338-0376 (pages 45-51) Attach the Shoulder Strap ....11 Safety Information ......
  • Page 4 DateandTimeDisplay • Playback on TV (or VCR) with • Audio/Video Inputs ..... 40-41 Set the Time and Date ....• Playback on TV Without • Record Time and Date, AUTO Audio/Video Inputs ..... 42-43 Date, Auto TITLE, or Date ..23 Travel and Recording •...

  • Page 5: Assistance

    This section describes the basic steps necessary to set up your camcorder to record. Refer to the other sections for detailed operation and feature options. Assistance The toll-free numbers are available to help you with any problem you may encounter. Camcorder Exchange Warranty ....

  • Page 6: Attach The Adapter/Charger

    Attach the adapter/charger. To AC 120V, 50/60 Hz Adapter/ Charger DC Cable DC IN 9.6V Jack 2. Attach the other end of the cable Since the battery must be charged before it can be used the first time, to the DC IN 9.6V jack on the camcorder.

  • Page 7: Insert A Tape

    Insert a tape. Safety Tab STOP/EJECT Button Tape Windows Cassette _Cassette Door Press Here to Close 3. Press the cassette down gently 1. Press STOP/EJECTto open the until it locks into place, and close cassette compartment. the cassette compartment door. 2.

  • Page 8: Adjust The Viewfinder And Eyepiece Focus Control

    Eyepiece Focus Control Electronic Viewfinder (Grasp here to BRIGHT 6. Adjust the viewfinder and eyepiece focus control. • Grasp the viewfinder and rotate it • Turn the eyepiece focus control to horizontally. adjust the focus of the viewfinder for your vision. •...

  • Page 9: Set Lightauto/Off/On

    RE C/PA USE LIGHT AUTO/OFF/ON Switch 7. Set the LIGHTAUTO/OFF/ Start and stop recording. ON switch to AUTO. • Press and release the REC/PAUSE button to start recording. • The color enhancement light helps appears in the viewfinder when you create brighter and sharper the camcorder is recording.

  • Page 10: Play Back What You Have Recorded

    REW/ PLAY STOP/ RE VIE W Button CAMERA/ EJECT OFF/VCR Button RE C/PA USE Lens Cap_ 10. Set the CAMERA/OFF/VCR 9. Play back what you have recorded. switch to OFF to turn off the camcorder. 1. Press the REC/PAUSE button to pause recording.

  • Page 11: Review Camcorder's

    12. Review camcorder's operating controls. DISPLAY Button RE W (R ewind)/RE VIE W Button (Also - Button) RESET Button PLA Y Button DATE/TIME Button EFWD (Fast Forward) Button TITLER Button (Also + Button) STOP/EJECT CAMERA/ Button OFF/VCR Switch (Also EDIT-ADV Button) Button Light...
  • Page 12 12. Review camcorder's operating controls. (continued) BRIGHT Control (on Bottom Viewfinder Eyepiece Focus Control Shoulder Strap Attachment Ring BATTERY EJECT Button Attach Rechargeable DC IN 9.6V Jack Handstrap with Lens Cap Holder Attach Adapter/ Power Zoom Buttons Cassette Door Charger's (Wand Cord Here...

  • Page 13: Attach The Shoulder Strap

    Attach the Shoulder Strap The camcorder's shoulder strap is designed to let you carry the camcorder from your shoulder and - when you are ready to shoot - bring the camcorder to shooting position in one quick movement. To Attach the Shoulder Strap 1.

  • Page 14: Built-In Color Enhancement Light

    Built-In Color Enhancement Light The built-in color enhancement light automatically adds light when needed. To operate the video light, press and hold the small button on the CAMERA/OFF/VCR switch while you set it to CAMERA. CAMERA/OFF/VCR Switch Video Light LIGHT AUTO/OFF/ON Switch To Use the Light Set the LIGHT AUTO/OFF/ON...
  • Page 15 Replace Light Bulb Light Case Reflection Plate Lower Hook Remove and Replace the Light Bulb 1. Press and hold the lower hook of the reflection plate and attach the lower light cover while removing the light hook to the light case on the camcorder. cover from the light case.

  • Page 16: Use The Adapter/Charger To

    Use the Adapter/Charger to Power Your Camcorder The adapter/charger attaches to the camcorder and lets you power your camcorder directly from standard household power. The adapter/charger operates on 120 volts, 50/60 Hz, and can be used to power the camcorder or recharge the battery.

  • Page 17: Use The Battery To Power Your Camcorder

    Use the Battery to Power Your Camcorder Charge the Battery You must charge the battery before you can use it the first time. Initial charging will take approximately two hours. The camcorder's operating time depends on how often you turn the power on and off and how much you use zoom and pause. Conserve battery power by turning the camcorder...

  • Page 18: Attach The Battery

    Use the Battery to Power Your Camcorder (continued) CAMERA/ OFF/VCR Switch BATTERY EJECT Button Rechargeable Battery Hold Battery Flush and Slide Down Attach the Charged Battery 3. Press and hold the small button on the If the DC cable is attached to the CAMERA/OFF/VCR switch while you camcorder, remove it before attaching...

  • Page 19: Battery Level Indicator

    Use the Battery to Power Your Camcorder (continued) Battery Level Indicator The battery level indicator appears in the viewfinder and shows you the amount power in the rechargeable battery. Battery Level Indicator Display in Viewfinder Note: If the battery level display does not Notes: When recording using the recharge- appear, press DISPLA Y able battery, the battery level indicator...

  • Page 20: Battery Care

    Use the Battery to Power Your Camcorder (continued) Battery Care • Your battery will provide better service if operated at temperatures above and longer performance if you charge 122°F (50°C). Operation time will if before and after use, and store it at decrease at extremely low tempera- tures.

  • Page 21: Car Cord Adapter

    Use the RCA Optional Car Cord Adapter The optional DCC096 car cord shown on page 45 allows you to power your camcorder from the cigarette lighter socket of a car, truck, or RV. It converts 12-volts to a 9.6-volt output.

  • Page 22: Erase Protection

    Make sure you select good quality tapes for your camcorder. Use of poor quality tapes or tapes that have been damaged or mishandled can contaminate the video heads, resulting in a snowy picture or no picture at all during playback. Because there is no control over the type of tape purchased...

  • Page 23: Insert And Remove Cassettes

    Insert and Remove Cassettes STOP/ EJECT Button Windows Press here to close. Cassette Holder 1. Attach a power source to the out. Gently push the cassette down camcorder. until it locks into place. Press the STOP/EJECT button. Gently close the cassette holder with The cassette holder opens your hand.

  • Page 24: Set The Time And Date

    Set the Time and Date You must set the correct date and time before it can be displayed and recorded on your tapes. The built-in clock cell must be charged as described on the next page. REW! CAMERA/ REVIEW EFWD Button DATE/TIME OFF/VCR Button...

  • Page 25: Record Time And Date, Auto Date, Auto Title, Or Date

    Record the Time and Date, A UTO Date, Auto TITLE, or Date The time and date, AUTO date, auto TITLE, date only, or no date can be recorded on your tape. Whenever one of these displays appears, it will be recorded. To Select the Display to Record Repeatedly press DATE/TIME...

  • Page 26: Use The Viewfinder

    the Viewfinder The camcorder's viewfinder is a miniature monitor that displays the picture seen by the camcorder when recording. Adjust Viewfinder for Convenient Viewing For convenient viewing, rotate the viewfinder horizontally, pull it out from the camcorder, and adjust the eyepiece. Eyepiece Focus Control...
  • Page 27 Use the Viewfinder (continued) Tilt Adjustment BRIGHT Control BRIGHT Control The brightness of the viewfinder can be adjusted by rotating the BRIGHT control. This does not affect the picture being recorded by the camcorder.

  • Page 28: Viewfinder Displays

    Viewfinder Displays AE:60 0000M r_T1 _9_ B/W INDEX ZOOM TAPE 10:30AM 11/18/1998 AE:60 (Auto Exposure) Shutter Speed Status Displays Press the DISPLAY button to display the The following displays appear to tell you the status of the camcorder. shutter speed selected by the camcorder. •...
  • Page 29 Tape Counter with Memory Stop Tape-Remaining Indicator (_l) (O000M) Press the DISPLAYbutton to display the Press the DISPLAY button to display the tape-remaining indicator. This display tape counter. The tape counter helps shows the approximate amount of tape locate segments of tape. left for recording or playback.

  • Page 30: Displaybutton

    RE W/RE VIE W Button DISPLAY Button F.FWD Button Microphone VCR Switch Zoom Buttons (T and W) DISPLAY Button Microphone The microphone picks up the sound The DISPLAY button lets you remove the during a recording. It is more sensitive to battery level, steady pix, tape speed, tape sounds coming from the direction the lens counter with memory stop, remaining...

  • Page 31: Camera Edit

    Camera Edit Feature operates on the wide-angle (W) side from 3/8 inch from the lens surface (macro- The camera edit feature allows you to focus) to infinity. position the tape when the camcorder Note: When the displays appear, the AE in record-pause.

  • Page 32: Tape-Remaining Display

    Electronic Indexing Tape-Remaining Display The tape-remaining display shows the Each time you begin recording (after the camcorder has been turned off for at least approximate amount of tape remaining for recording or playback. four hours), the camcorder automatically records an index mark at the beginning of the new recording.

  • Page 33: Zooming

    Zooming Press one of the zoom buttons to zoom in and out for close ups or wide- angle shots. Zoom Buttons (T and W) Use the Zoom Buttons (T and W) 1. To zoom in or out from wide angle to 32 times, press zoom button Tor W.

  • Page 34: Fade In And Out Of Scenes

    Fade In and Out of Scenes You can add a professional touch to your recordings when you fade in and out of scenes. Both the picture and sound gradually appear or disappear. The speed of the fade is controlled by the camcorder. FADE Button Fade In Press REC/PAUSE to pause...

  • Page 35: Steady Pix

    STEADY PIX Button Steady Feature The steady pix feature corrects slight Notes: Turn steady pix off when using a shaking of images during some record- tripod. Steady pix may not operate properly when wide-angle or telephoto lens adapters ing modes. are used.

  • Page 36: Tape Counter

    Tape Counter The tape counter acts as a handy reference to help you locate tape segments. The memory-stop feature helps locate a certain point on the tape. When the tape counter appears, the tape stops automatically during rewind or fast forward when the tape counter reaches O000Mi REW/ DISPLAY...
  • Page 37 Titler You can store a title in memory. The created title can be displayed and recorded at any time. The built-in character register contains more than 45 different characters. Your title can contain up to 32 characters on two lines. - Button (Also RE W/RE VIE W Button) + Button...

  • Page 38: Titler

    Titler (continued) To Create a Title 1. Attach a power source to the See the chart below for the characters camcorder. Press and hold the small available. button on the CAMERA/OFF/VCR 5. After you have selected the first switch while you slide it to CAMERA. character, press EDIT-ADV to move 2.
  • Page 39 Titler (continued) Record a Title on a Tape in the Camcorder The camcorder will now record 1. Attach a power source to the normally. If you do not want to camcorder. Press and hold the small continue recording, press REC/ button on the CAMERA/OFF/VCR PA USE.

  • Page 40: Viewfinder Playback And Playback Features

    Viewfinder Playback and Playback Features The simplest way to watch tapes using the camcorder is in the viewfinder. You can use the playback features during viewfinder playback. STOP/ CAMERA/ (rewind)/ F.FWD EJECT OFF/VCR REVIEW Button Button Button R E C/PA US E Eyepiece Button Buttons...

  • Page 41: Playback Features

    PlayBacka Tapein theViewfinder(continued) Adjust the viewfinder. • Turn the eyepiece focus control to adjust the focus of the viewfinder • Grasp the viewfinder and rotate your vision. it horizontally. Pull the viewfinder out from the • Rotate the BRIGHT control to adjust camcorder and rotate the the brightness.

  • Page 42: Playback On Tv (Or Vcr) With Audio/Video Inputs

    Playback on TV (or VCR) with Audio/Video Inputs To connect your camcorder to a TV monitor (or VCR) with audio and video inputs, need an optional audio/video cable, such as VH83 shown on page 47. If your TV is already connected to a VCR, attach the camcorder to the VCR and watch what the...
  • Page 43 Playback Operation and How to Copy Tapes on the VCR 1. A. Camcorder connected directly to 3. Press PLAY. TV: Turn on the TV and tune it to • During playback, use the playback the video input channel. features on page 39. B.
  • Page 44 Playback on a TV Without Audio/Video Inputs To connect your camcorder to a TV without audio/video inputs, you need an optional CRF95 RF output adapter and an optional coaxial RF cable, such as VH82 or VH90 shown on page 4 7. If your TV has audio and video inputs (or is connected to a VCR), refer to pages 40-41.
  • Page 45 Playback Operation 1. Set the CH3/CH4 switch on the 4. Press PLAYon the camcorder. RF output adapter to CH3 or CH4. • During playback, use the playback 2. Turn on the TV, and tune it to the features described on page 39. same channel you selected with the 5.

  • Page 46: Travel And Recording Tips

    Travel Tips Make sure you have any adapters that Write down your camcorder's serial you might need before taking your number and keep it separate from the camcorder to other countries. Consult camcorder when traveling. If your your dealer for advice. camcorder is lost or stolen, you will be able to identify it.

  • Page 47: Optional Accessories

    We invite you to take a look at some great ideas for sparking creativity and adding to the fun of using your VHS camcorder. The following pages have a selection of accessories to help make your memorable moments look and sound even better. These accessories are designed to make the process of recording and watching your videos more enjoyable.
  • Page 48 EP096FS and EP096FL Rechargeable Using the Optional AC093 Tripod Batteries Mounting the camcorder on a tripod, such as AC093, keeps the camcorder steady and produces excellent video results. This tripod's fluid-effect head provides smooth camera pan and tilt. The quick- release mount makes it easy to attach or remove the camcorder.

  • Page 49: Audio/Video Inputs

    VH54 Cable Transformer CRF95 RF Output Adapter This 75-to-300 ohm transformer is used to connect a standard 75-ohm antenna cable This RF output adapter is used with a (such as VH82 or VH90) to the 300 ohm coaxial RF cable, such as VH82 or VH90, screw terminals on a TV.

  • Page 50: Optional Accessories

    Remove the Lens Hood The lens hood can be removed so you can attach optional accessories, such as wide-angle lens, lens extenders, or lens filter kits. To Attach an Accessory Lens 3. Turn the accessory lens clockwise into 1. Attach the lens cap over the lens hood. the camcorder's lens.

  • Page 51: Accessory Order Form

    Order Form for Camcorder Model CC4271 Total Part No. Price Qty. Description AC093 $ 59.95 Deluxe Tripod Soft Camcorder Case AC202 $ 49.95 AH25 2.95 Y-Adapter CPS014 $219.95 AC Adapter/Charger (100-240V) CRF95 $ 69.95 RF Output Adapter DCC096 $ 49.95 Car Cord Adapter EP096FL $ 79.95...
  • Page 52 Charge your order on your VISA,MasterCard, or Discover Card by filling in below YOUR CREDIT CARD IMPORTANT: Copy complete account number from your VISA card IIII IV-1-V-]V-V-I-]V-V-I-] Expiration date: [""_ [""_ IMPORTANT: Copy complete account number from your MasterCard I I I I II I I I II I I I II I I I I I I I I I Copy Number above your name on MasterCard Expiration date: _...
  • Page 53 To order accessories, contact your local Dealer. If a dealer is not nearby, you can also follow the directions below to order by telephone or direct-by-mail. United States and Canada Orders To place your order by phone, have your Visa, MasterCard, or Discover card ready and call the toll-free number...

  • Page 54: Trouble Checks

    If you're having trouble with your camcorder, you probably can correct the problem yourself. Before you take your camcorder to an Authorized RCA Camcorder Service Center or call a service person, use the chart below. Find the problem and try the adjustment(s) that is listed to the right.
  • Page 55 Sound i stoolowor • Subject was toofarfromcamcorder. distorted Tape stops d uring • Whenever thetape counter appears, thecamcorder will rewind orfast f orward stop rewinding (orfast f orwarding) when counter reads orwill notoperate O000Mi Press REW/RE VIEW or EFWD again to during rewind orfast continue rewinding...
  • Page 56 Date and/or time are • Date or time may need to be set. See page 22. incorrect • Clock lithium cell battery may need recharging. See page 23. Camcorder does not Remove the power source. turn on and/or After one minute press the function buttons will reset switch gently using a...

  • Page 57: Information To User

    This equipment has b een t ested and found t o • Increase the separation between the comply withthe limits foraClass Bdigital equipment and receiver. device pursuant toPart 1 5 ofthe FCC Rules. • Connect the equipment into anoutlet ona These limits are designed toprovide circuit different from that t owhich t he...

  • Page 58: Clean The Camcorder

    Clean the Camcorder To clean the camcorder's exterior, remove any power source connected to the camcorder and gently wipe it with a clean soft cloth. Clean the Camcorder's Lens To clean the camcorder's lens, blow it with a blower brush, and then gently wipe the lens with cleaning tissue and commercially prepared...

  • Page 59: Proper Care And Storage

    Authorized RCA Camcorder • Do not aim your camcorder at the sun Service Center. or other bright objects. • Do not use an adapter/charger •...

  • Page 60: Specifications

    Camera Section General Scanning: 525 lines/60 fields/ Power requirement: 9.6VDC 30 frames Power consumption: Image Sensor: 1/4" CCD Imager Viewfinder 7.5 watts Lens: F1.4 Weight: 4.4 lbs. (2kg) 16:1 (4-64 mm) power zoom lens Diameter: 46 mm Dimensions - Including Viewfinder: 4-1/4"...

  • Page 61: Customer Assistance

    Thomson provides a toll-free telephone You can reach Thomson at the number to help you with any problems you following number: may encounter with your camcorder. Many 800-283-6503 can be diagnosed over the phone, and if (Toll free inside U.S.A.) necessary, repair or replacement will be arranged.

  • Page 62: Limited Warranty

    What your warranty covers: 2. The exchange location will notify you of its arrival. • Any defect in materials or workmanship. 3. Take your unit, excluding all accessories, For how long after your purchase: and your evidence of purchase date, such as a bill of sale, to the exchange location and •...
  • Page 63 • Evidence ofpurchase date, such a s a • Take your unit to the Authorized RCA billofsale, toverify your u nit's Camcorder Service Center of your choice. warranty eligibility. • Show the Authorized RCA Camcorder • Abrief n ote d escribing...
  • Page 64 CAMERA/OFFFVCR switch + and-buttons 9, 35, 36 5, 8, 9, 12, 16, 17, 19, 22, 23, 28, 29, 34, 35, 36, 37, 38, 39, 41, 43 Car cord adapter, optional Care and maintenance Accessories cleaning the camcorder included cleaning the lens 56 optional 45 cleaning the viewfinder order form 49...

  • Page 65: Index

    steady pix 26, 33 TAPE 27 tape counter 27, 34 TAPE END 27, 30 EDIT-ADVbutton 9, 35, 36 tape remaining 27, 30 Electronic indexing 30 ZOOM 27, 31 Erase protection zoom level 27, 31 Eyepiece Information to user 55 Eyepiece focus control 6, 10, 24, 39 Insert and remove cassettes 21 F.FWD (fast forward)
  • Page 66 RF DC OUT jack 9, 42 RF output adapter, optional PLAY button 8, 9, 28, 29, 39, 41, 43 Playback features stop-action pause 39 Safety information i tape counter 34 Safety precautions, battery tape positioning Safety tab 20 tracking 39 Searching during playback 39 visual searching 39 Shoulder strap 3...

  • Page 67: Tips

    Tips recording 44 travel 44 Title Zoom buttons 10, 28, 31 record 23 ZOOM indicator 27, 31 Titler 35 Zoom level indicator 27, 31 chart of characters Zooming correct an error 36 create a title 36 record on a tape in camcorder 37 record while copying a tape 37 TITLERbutton 9, 35, 36, 37...
  • Page 68 THOMSON CO NSU M ER ELECTRON ICS 10330 N Meridian Street Indianapolis, 46290 _:)1998 Thomson Consumer Electronics, Inc. Trademark(s) ® Registered Marca(s) Registrada(s) Printed in Japan 15331680 QR19423...
