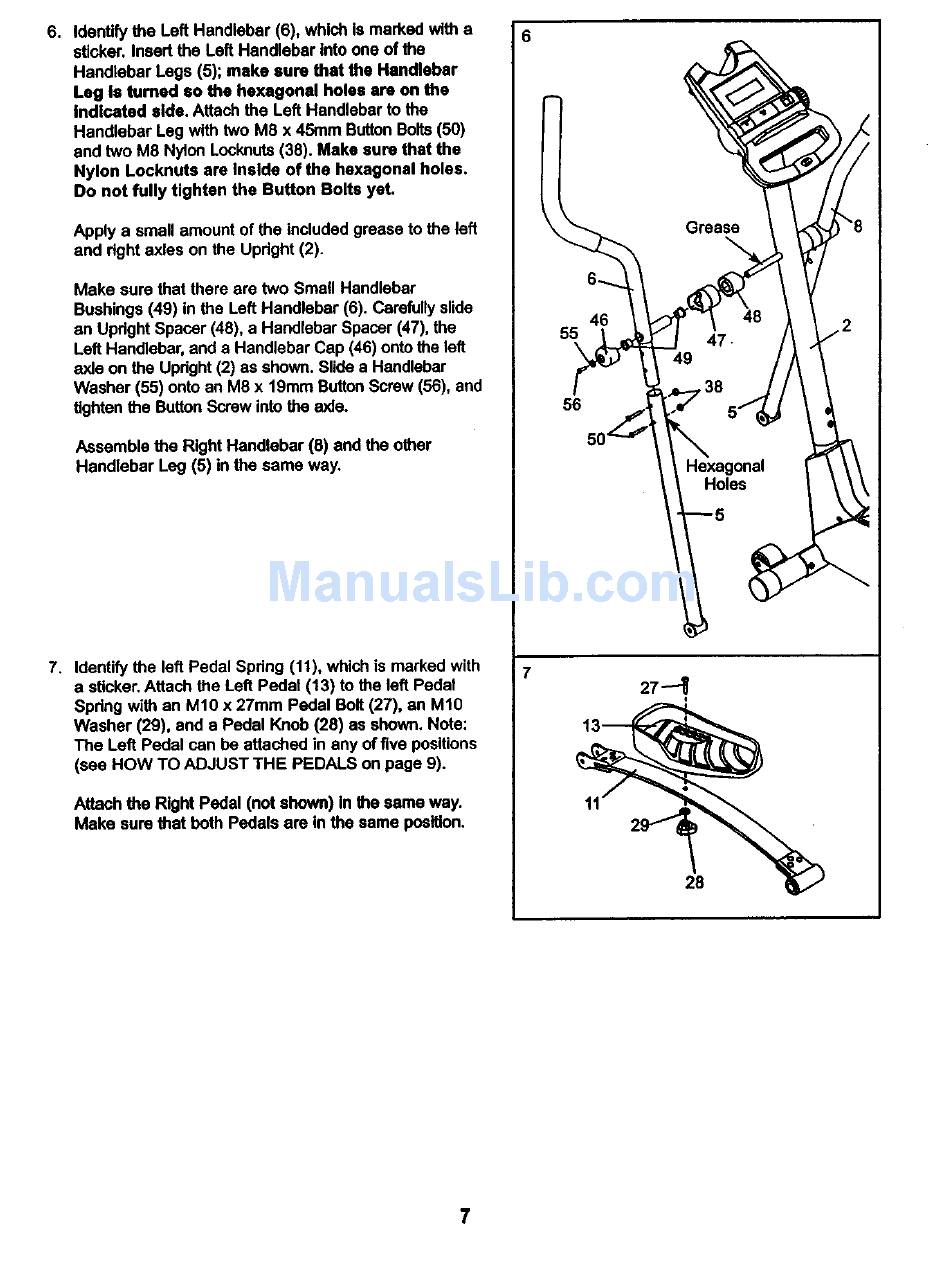

6. Identifythe Left Handlebar (6), which is marked with a
sticker. Insert the Left Handlebar intoone of the
Handlebar Legs (5); make sure that the Handlebar
Leg Is turned so the hexagonal holes are on the
Indicated side. Attach the Left Handlebar to the
Handlebar Leg with two M8 x 45ram ButtonBolts(50)
and two M8 NytonLocknuts(38). Make sure that the
Nylon Locknuts are Inside of the hexagonal holes.
Do not fully tighten the Button Bolts yet,
Apply a small amount of the includedgrease to the left
and right axles on the Updght (2).
Make sure that there are two Small Handlebar
Bushings(49) in the Left Handlebar (6). Carefullyslide
an UprightSpacer (48), a Handlebar Spacer (47), the
Left Handlebar,and a HandlebarCap (46) ontothe left
axle on the Upright(2) as shown. Slidea Handlebar
Washer (55) onto an M8 x 19ramButtonScrew(56), and
tightenthe ButtonScrew intothe axle.
Assemble the Right Handlebar (5) and the other
Handlebar Leg (5) in the same way.
7. Identify the left Pedal Spring (11), which is marked with
a sticker.Attach the Left Pedal (13) to the left Pedal
Spdng with an M10 x 27mm Pedal Bolt(27), an M10
Washer (29), and a Pedal Knob (28) as shown, Note:
The Left Pedal can be attached in any of five positions
(see HOW TO ADJUST THE PEDALS on page 9).
Attach the Right Pedal (not shown) In the same way.
Make sure that both Pedals are in the same position,
55
56
28
7
