Application Diagram - Extron electronics System 4LQ xi Specification Sheet

S
PECIFICATIONS
Inputs
RGB Video
Bandwidth .................................. 300 MHz (-3 dB)
Return loss at 10 MHz .............. 25 dB
Crosstalk at 10 MHz .................. -35 dB
Isolation at 10 MHz .................. -55 dB
Audio
Frequency response .................... 20 Hz to 20 kHz
Signal to noise ratio .................... 85 dB minimum
Total harmonic distortion .......... -78 dB
Peak to peak voltage.................... 8 volt p-p
Audio input
Type............................................ 4 inputs, two channel,
Connectors ................................ Captive screw connector,
Impedance .................................. >10 k ohm, AC coupled
Maximum level
(balanced or unbalanced) ............ 11.2 dBu
CMRR........................................ >60 dB typical
Audio throughput
Routing ...................................... 1 of 4 two channel routing
Response .................................... ±.05 dB 20 Hz to 20 kHz
Gain adjustment ........................ -95.5 dB to +31.5 dB, both
THD + Noise ............................ 0.002% worst case,
S/N ............................................ >95 dBu, 0 dBu reference
Adjacent input crosstalk.............. Better than 85 dB from
Stereo channel separation............ 60 dB from 20 Hz to 20 kHz
INPUT 1
PC or Workstation
with Audio
EXTRON ELECTRONICS/RGB SYSTEMS, INC.
1230 South Lewis Street, Anaheim, CA 92805
800.633.9876 714.491.1500 FAX 714.491.1517
U.S.A.
balanced
6 conductor
left and right channels
per input
+10 dBu input, +10 dBu output,
balanced input and output
20 Hz to 20 kHz

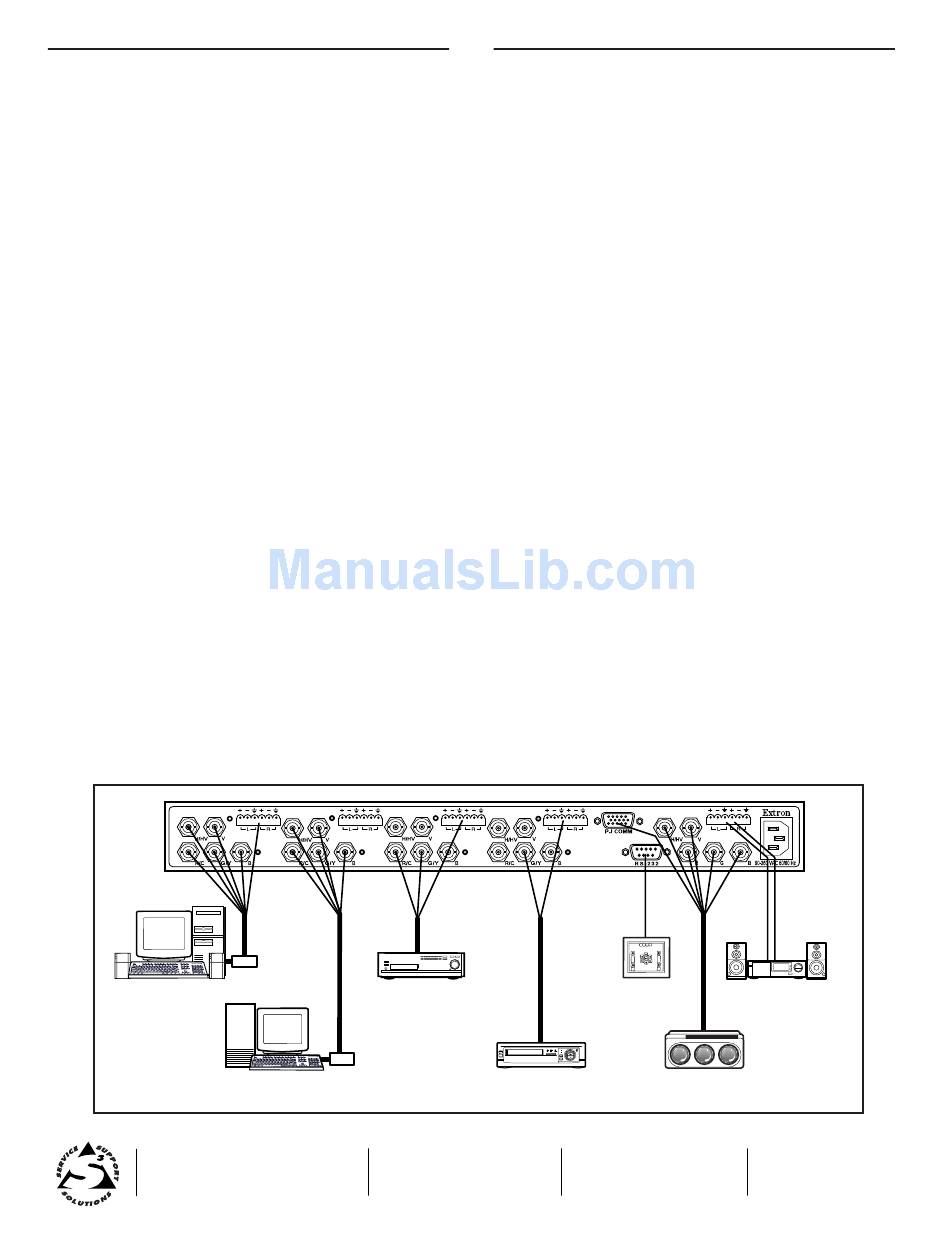

APPLICATION DIAGRAM

INPUT 2 INPUT 3
AUDIO
AUDIO
RGB
Interface
Laserdisc Player
with s-VHS Outputs
and Sterio Audio
RGB
Interface
SGI/SUN
Workstation
EXTRON ELECTRONICS, EUROPE
Beeldschermweg 6C, 3821 AH Amersfoort
+31.33.453.4040 FAX +31.33.453.4050
The Netherlands
S
PECIFICATIONS (Cont.)
Outputs
RGB and sync
Frequency .................................. 63 kHz horizontal,
Resolution .................................. 1280 x 1024
Connectors ................................ Female BNC's
Impedance .................................. 75 ohms video, 510 sync
Audio output
Type............................................ 1 output, two channel
Connectors ................................ Captive screw connector,
Impedance .................................. 50 ohms
Audio gain
Output taken single ended.......... 0 dB± channel throughput gain
Output taken differentially ........ ±6 dB channel throughput gain
Gain error .................................. ±0.2 dB channel to channel
Muting........................................ >95 dB
Drive .......................................... +11.2 dBu into 600 ohms
Switching speed .............................. 5 mS (max)
Power supply .................................. 100 - 240 VAC 50/60 Hz
Power consumption........................ 30 watts
Operating temperature .................. 0˚ - 50˚ C
Storage temperature........................ -20˚ to +70˚ C
MTBF (demonstrated) .................. 30,000 hours
Approved........................................ UL & CE Listed
Dimensions .................................... 1.74"H x 19"W x 16.2"D
Shipping weight .......................... 21 lbs. (9.5 kg)
Warranty .................................... Two years, parts & labor
Part number ................................ 60-221-01
INPUT 4
AUDIO AUDIO
Control
System
VCR/VTR with Audio
EXTRON ELECTRONICS, ASIA
41B Kreta Ayer Road, Singapore 089003
+65.226.0015 FAX +65.226.0019
Singapore
60 Hz vertical
balanced
6 conductor
capable of driving 600 ohms
(auto-switchable)
4.4 H x 48 W x 41 D cm
OUTPUT
AUDIO
Stereo Audio
Large Screen
Projector
