Digital Audio; Video Input; Video Output - Extron electronics Extron DA6 YUV A Specifications

D
ESCRIPTION
The Extron DA 6 YUV A is a one input, six output component and
digital audio distribution amplifier for HDTV and DVD signal
distribution. It accepts and distributes RGBS, RGsB, RsGsBs,
HDTV/component video, and digital audio on female BNC connectors.
It also offers DIP switches for adjusting video gain and peaking, as well
as for selecting input AC or DC coupling. With 350 MHz (-3dB) video
bandwidth, the DA 6 YUV A is perfect for maintaining signal integrity
over long cable runs.
F
EATURES
350 MHz (-3dB) video bandwidth, fully loaded
Compatible with RGBS or RGsB, RsGsBs, HDTV/component video,
S-video, composite video, and digital audio
Gain/peaking adjustments
AC or DC coupling per input
LED power indicator
1U high, full rack width rugged, metal enclosure
Internal international power supply
S
PECIFICATIONS
VIDEO
Gain ...................................................... Unity (0.7V), or (0.8V) 100%, switch-selectable
Peaking.................................................. 0dB or +6dB at 100 MHz, switch-selectable
Bandwidth ............................................ 350 MHz (-3dB), fully loaded
Differential phase error .......................... <1.0º, 0 to 100 MHz
Differential gain error ............................ <1.0%, 0 to 100 MHz

VIDEO INPUT

Number/signal type .............................. 1 RGBS (only when the digital audio channel is
Connectors............................................ 3 or 4 BNC female (the fourth can be used for
Minimum/maximum levels .................... Analog, 0.3V p-p to 1.5V p-p with no offset at
Impedance ............................................ 75 ohms
Horizontal frequency ............................ 15 kHz to 180 kHz
Vertical frequency .................................. 15 Hz to 170 Hz
Return loss ............................................ -38.5dB @ 5 MHz
Maximum DC offset .............................. 5.0V (in AC coupling mode)
AC/DC coupling .................................... Yes, switch-selectable

VIDEO OUTPUT

Number/signal type .............................. 6 RGBS (only when the digital audio channel is
Connectors............................................ 6 x 4 BNC female
Minimum/maximum level(s).................. 0.3V p-p to 1.5V p-p
Impedance ............................................ 75 ohms
Return loss ............................................ -44dB @ 5 MHz
DC offset .............................................. ±5mV maximum with input at 0 offset
Extron Electronics, USA
1230 South Lewis Street
Anaheim, CA 92805
800.633.9876 714.491.1500
FAX 714.491.1517
Copyright © 2002 Extron Electronics. All rights reserved. All trademarks mentioned are the property of their respective owners.
not used), RGsB, RsGsBs, component video,
S-video, composite video
digital audio input instead of video sync)
unity gain
not used), RGsB, component video, S-video,
composite video
Extron Electronics, Europe
Beeldschermweg 6 C , 3821
The Netherlands
+800.3987.6673 +31.33.453.4040
+31.33.453.4050
FAX

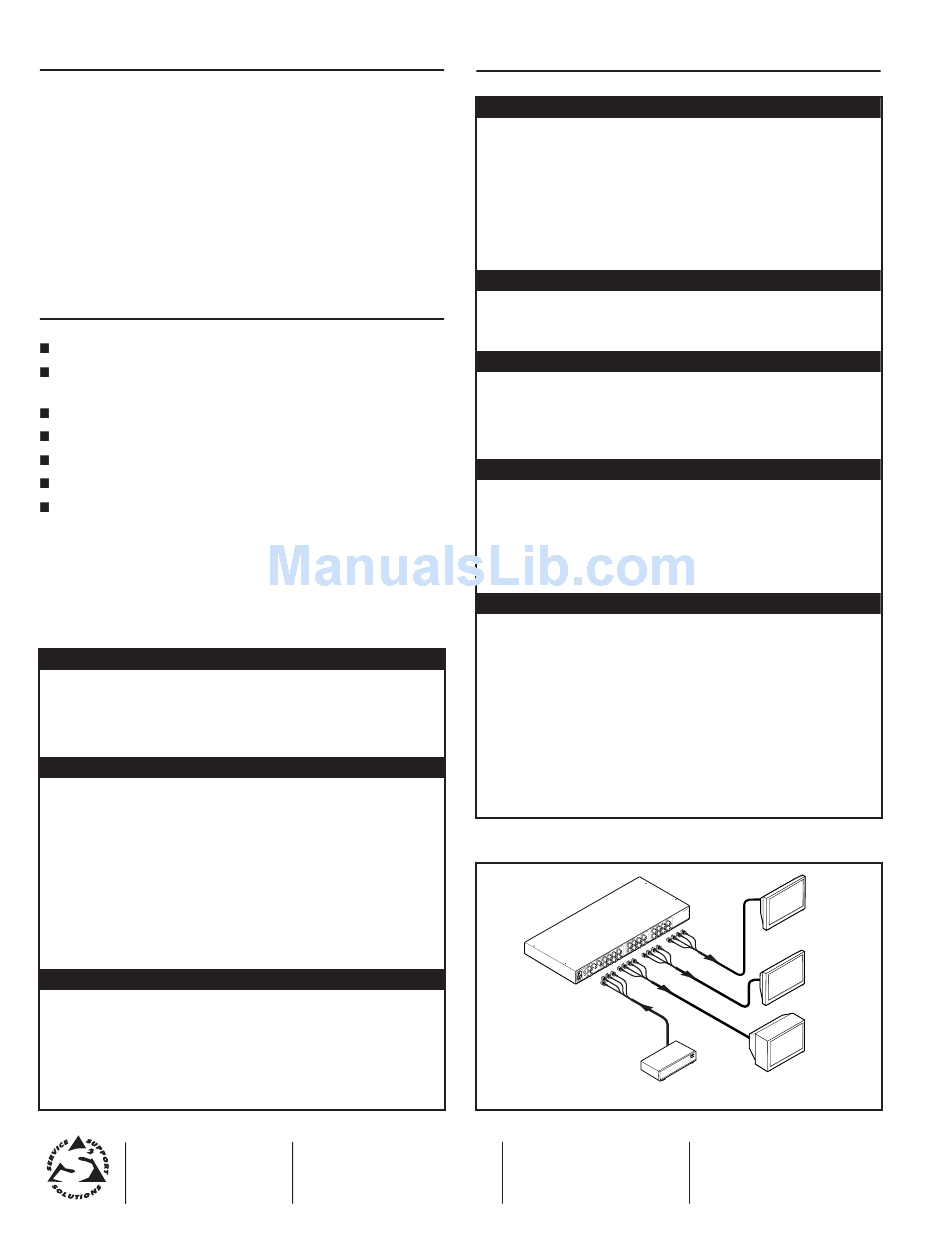

S
PECIFICATIONS
SYNC
Input/output type.................................. RGBS (only when the digital audio channel
Input level ............................................ Analog or TTL, 0.5V to 5V p-p
Output level .......................................... TTL, 5V p-p (not terminated)
Input impedance .................................. 510 ohms
Output impedance ................................ 75 ohms
Max. input voltage ................................ 5.0V p-p
Max. propagation delay ........................ 35 ns
Max. rise/fall time.................................. 4 ns
Polarity .................................................. Positive or negative (follows input)

DIGITAL AUDIO

NOTE: Digital audio input/output is available when RGBS is not used as the video input
signal.
Sampling rates ...................................... 32 kHz, 44.1 kHz, 48 kHz, 96 kHz
DIGITAL AUDIO INPUT
Number/signal type .............................. 1 Dolby Digital, DTS, AES/EBU
Connectors............................................ 1 BNC female
Impedance ............................................ 510 ohms
Input level ............................................ 0.5V p-p to 5V p-p
Max. input voltage ................................ 5V p-p
DIGITAL AUDIO OUTPUT
Number/signal type .............................. 6 Dolby Digital, DTS, AES/EBU
Connectors............................................ 6 BNC female
Impedance ............................................ 75 ohms
Output level .......................................... 2.5V p-p, 75 ohms terminated
Max. propagation delay ........................ 35 ns
Max. rise/fall time.................................. 4 ns
Polarity .................................................. Positive or negative (follows input)
GENERAL
Power .................................................... 100VAC to 240VAC, 50/60 Hz, 10 watts,
Rack mount .......................................... Yes, with included rack ears
Enclosure type ...................................... Metal
Enclosure dimensions ............................ 1.75" H x 17.5" W x 8.5" D (1U high, full rack
Product weight......................................
Shipping weight ..................................
Listings/Compliances ............................ UL, CUL, CE, FCC Class A, VCCI, AS/NZS, ICES
Warranty .............................................. 3 years parts and labor
Model
DA6 YUV A .................................... 60-494-01
1U rack shelf .................................. 60-190-01
A
PPLICATION
V 1.3A
-240
100
0Hz
50-6
Extron
DA6 YUV A
Distribution
Amplifier
Extron Electronics, Asia
Amersfoort 135 Joo Seng Rd. #04-01
AH
Industrial Bldg.
PM
Singapore 368363
+65.6383.4400
FAX
(C .)
ONT
is not used), RGsB, RsGsBs
internal, autoswitchable
width) 4.4 cm H x 44.4 cm W x 24.1 cm D
6 lbs (2.7 kg)
12 lbs (5.4 kg)
Part Numbers
D
IAGRAM
V A
6 YU
DA
L
ITA
DIG DIO
5 AU
UT B- Y 6 Outputs
TP
OU
R- Y
ITA L
DIG
Y AU DIO
B- Y
L 6
ITA R- Y UT
DIG OU TP
AU DIO
3 Y
TP UT B- Y
OU HDTV Plasma
R- Y
L
DIG ITA
Y DIO
AU
B- Y
L 4
ITA R- Y UT
DIG DIO TP
AU OU
1 Y
UT B- Y
OU TP
R- Y L
ITA
DIG DIO
Y AU
B- Y
B- Y
UT 2
T R- Y TP
IN PU R- Y OU
Y
Y
L
ITA
DIG DIO
AU
HDTV Large
HDTV Receiver
Screen Monitor
Extron Electronics, Japan
Daisan DMJ Bldg. 6F, 3-9-1 Kudan Minami
Chiyoda-ku, Tokyo 102-0074
Japan
+65.6383.4664 +81.3.3511.7655 FAX +81.3.3511.7656
02-05
68-672-01
REV. A
