DA AV EQ Series

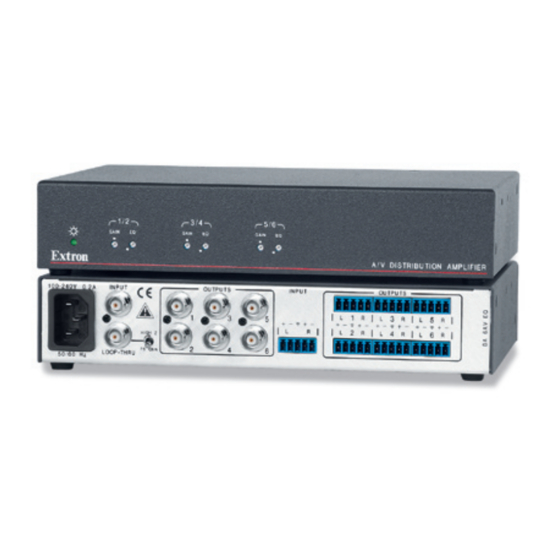

Composite Video and Audio Distribution Amplifiers with Gain and EQ Controls
Common feAtures
150 MHz (-3 dB) video bandwidth, fully loaded
Variable gain and EQ adjustments, except for the DA 3AV RCA
Independent gain and EQ control for every two outputs, except for the DA 3AV RCA
Buffered and amplified outputs drive signals 1,000 feet (300 meters) or more
Video inputs and outputs on female BNC connectors
Input loop-through
1U, 6" deep, half-rack metal enclosure
Internal international power supply
DesCriPtion
The Extron DA AV EQ Series are high performance distribution amplifiers designed to split and
extend composite video and audio signals over long cable runs while maintaining the quality
and strength of a signal source.
The DA AV EQ Series includes six distribution amplifiers for composite video and audio signals.
With 150 MHz (-3dB) video bandwidth, fully loaded, five models feature gain adjustments to
allow for compensation of signal level loss that occurs over long cable runs, while the EQ
adjustments compensates for high frequency loss. All video models are compatible with NTSC,
PAL, and SECAM video signals, and allow for cable runs of 600 feet (180 meters) to 1,000
feet (300 meters) or more, depending on the quality of the coax cable. Each video model also
includes input loop-through capabilities, which enables users to add more amplifiers and create
a larger DA system or drive a local monitor.
Composite Video Only Models
All video inputs and outputs are on female BNC connectors.
Composite Video and Stereo Audio Models
All video inputs and outputs are on female BNC connectors. The DA 3AV RCA and
DA 6AV RCA EQ accept and distribute unbalanced stereo audio on RCA jacks, while the
DA 6AV EQ features balanced/unbalanced stereo audio inputs and outputs on captive
screw connectors.
Housed in durable and compact half-rack metal enclosures, the DA AV EQ Series is designed
for easy integration into both new and existing A/V systems including boardrooms, training
facilities, home theater, command and control centers, and rental and staging environments.
524
uSA West
uSA West
+1.714.491.1500 / +800.633.9876
+1.714.491.1500 / +800.633.9876
+1.714.491.1517 FAX
+1.714.491.1517 FAX
A u D i o / v i D e o D i s t r i b u t i o n A m p l i f i e r s

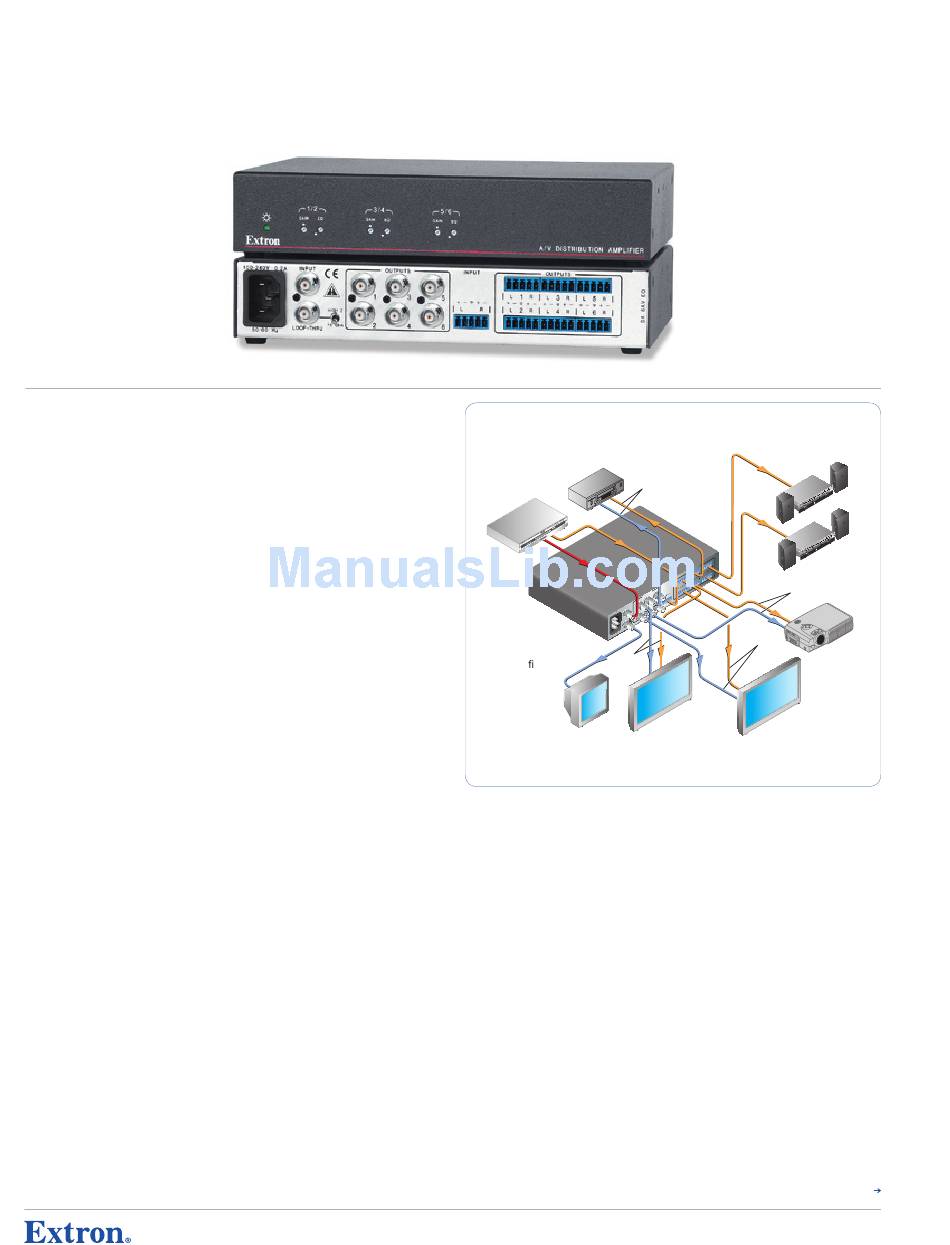

VCR
6' Cables
DVD
P U
IN
S
U T
T P
O U
5
L
3
6
T
4
P U
1
IN
0. 2A
2
0- 24
0V
10
U
Z
H R
H
-T
H IG
O P
DA 6AV EQ
LO
O hm
75
Hz
Audio Video
/6 0
50
Distribution
200'
Ampli er
Cables
Local Monitor
(Loop-through)
uSA east
uSA east
+1.919.863.1794 / +800.633.9876
+1.919.863.1794 / +800.633.9876
+1.919.863.1797 FAX
+1.919.863.1797 FAX
754
ER
POWER
APA
AMPLIFI
AUDIO
1
CH
2
CH
PROTEC
T
CLIP
RS-232
NORM
SIGNAL
PANEL
T
FRONT
LOCKOU
APA
ER
754
POWER
AMPLIFI
AUDIO
CH
2
CH
1
T
PROTEC
CLIP
RS-232
SIGNAL
NORM
FRONT
PANEL
LOCKOU
T
Q
V E
6 A
D A
Sound Systems
S
U T
T P
R
5
O U
L
R
6
R
3
L
L
R
4
R
T
1
L
L
R
100' Cables
2
L
R
300'
Cables
Projector
Plasma /
LCD Displays
Continued
www.extron.com
www.extron.com
© 2008 Extron Electronics. All rights reserved.
© 2008 Extron Electronics. All rights reserved.
Pricing and specifications may change without notice.
Pricing and specifications may change without notice.

Advertisement

loading
Need help?

Need help?

Do you have a question about the DA AV EQ Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Extron electronics DA AV EQ Series

  • Page 1 DA AV EQ Series Composite Video and Audio Distribution Amplifiers with Gain and EQ Controls Common feAtures 150 MHz (-3 dB) video bandwidth, fully loaded • Variable gain and EQ adjustments, except for the DA 3AV RCA • Independent gain and EQ control for every two outputs, except for the DA 3AV RCA •...
  • Page 2 DA AV EQ Series Composite Video Models DA 6V EQ Six Output Composite Video Distribution Amplifier with Gain and EQ Controls unique feAtures Accepts and distributes composite video on female BNC connectors • Independent variable gain and EQ controls for every two outputs •...
  • Page 3 Independent variable gain and EQ controls for every two outputs • Unbalanced stereo audio on RCA jacks • Audio unity gain selectable per output • moDeL DA 6AV RCA EQ DA AV EQ Series Accessories oPtionAL ACCessories RSU 126 RSB 126 CSR 6 uSA West uSA West +1.714.491.1500 / +800.633.9876 +1.714.491.1500 / +800.633.9876...
  • Page 4: Specifications

    DA AV EQ Series sPeCifiCAtions viDeo Gain (all models except DA 6A and DA 3AV RCA)....-1 dB to +3 dB (x 0.9 to x 1.4), adjustable per every 2 outputs Equalization (all models except DA 3AV RCA)....0 dB to +8 dB (x 1 to x 2) at 5 MHz, adjustable per every 2 outputs Bandwidth..
