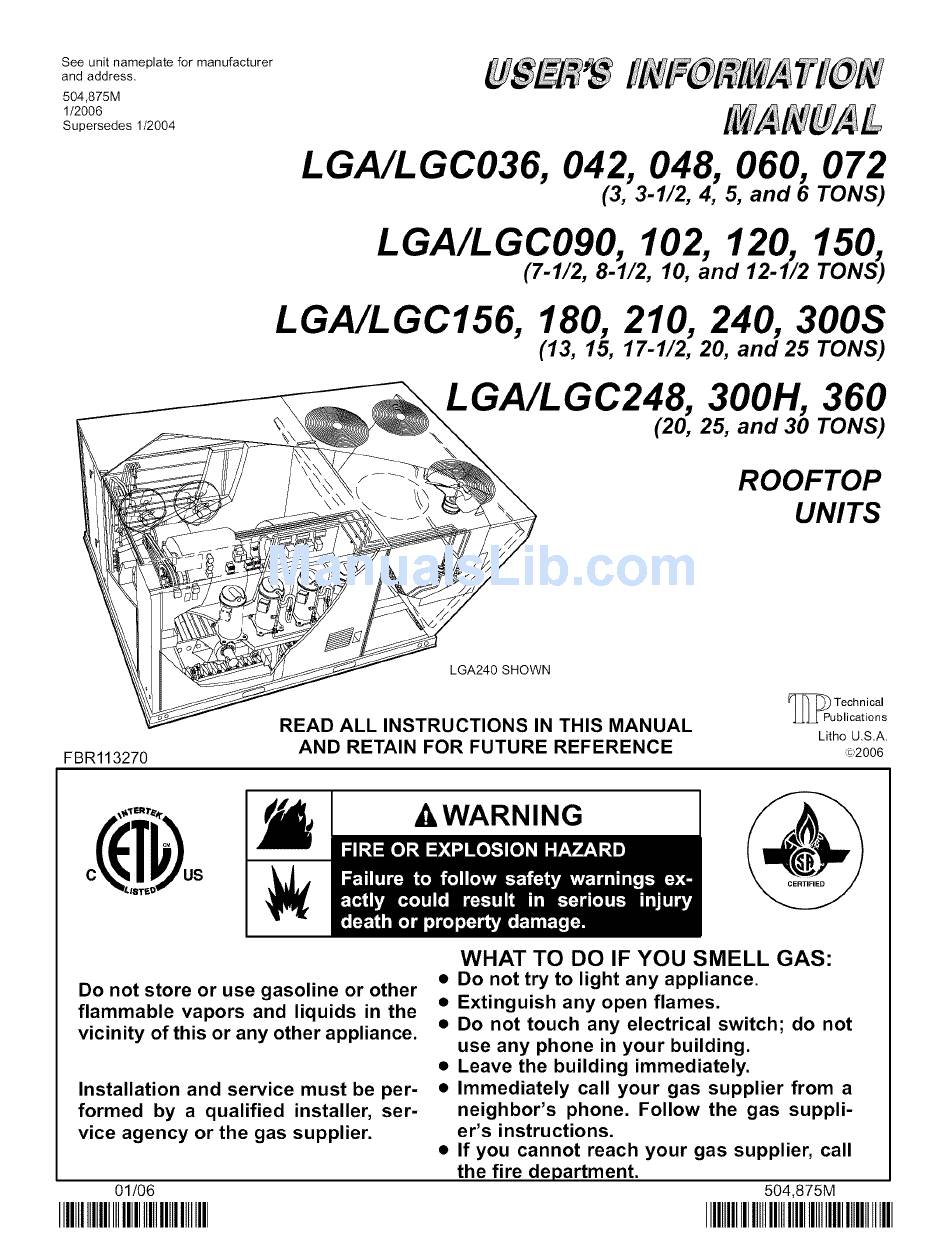

3, 3-1/2, 4, 5, 6, 7-1/2, 8-1/2, 10, 12-1/2, 13, 15, 17-1/2, 20, 25 and 30 tons rooftop units

Advertisement

See unit nameplate for manufacturer
and address.
504,875M
1/2006
Supersedes
1/2004
LGA/LGC036,
042, 048, 060, 072
(3, 3-1/2, 4, 5, and 6 TONS)
LGA/LGC090,
102, 120, 150,
(7-1/2, 8-1/2, 10, and 12-1/2 TONS)
LGA/LGC156,
180, 210, 240, 300S
(13, 15, 17-1/2, 20, and 25 TONS)
LGA/LGC248,
30OH, 360
(20, 25, and 30 TONS)
ROOFTOP
UNITS
FBR113270
LGA240 SHOWN
READ ALL INSTRUCTIONS
IN THIS MANUAL
AND RETAIN FOR FUTURE
REFERENCE
