OWNER'S MANUAL
Sears Peyton 7pc dining set

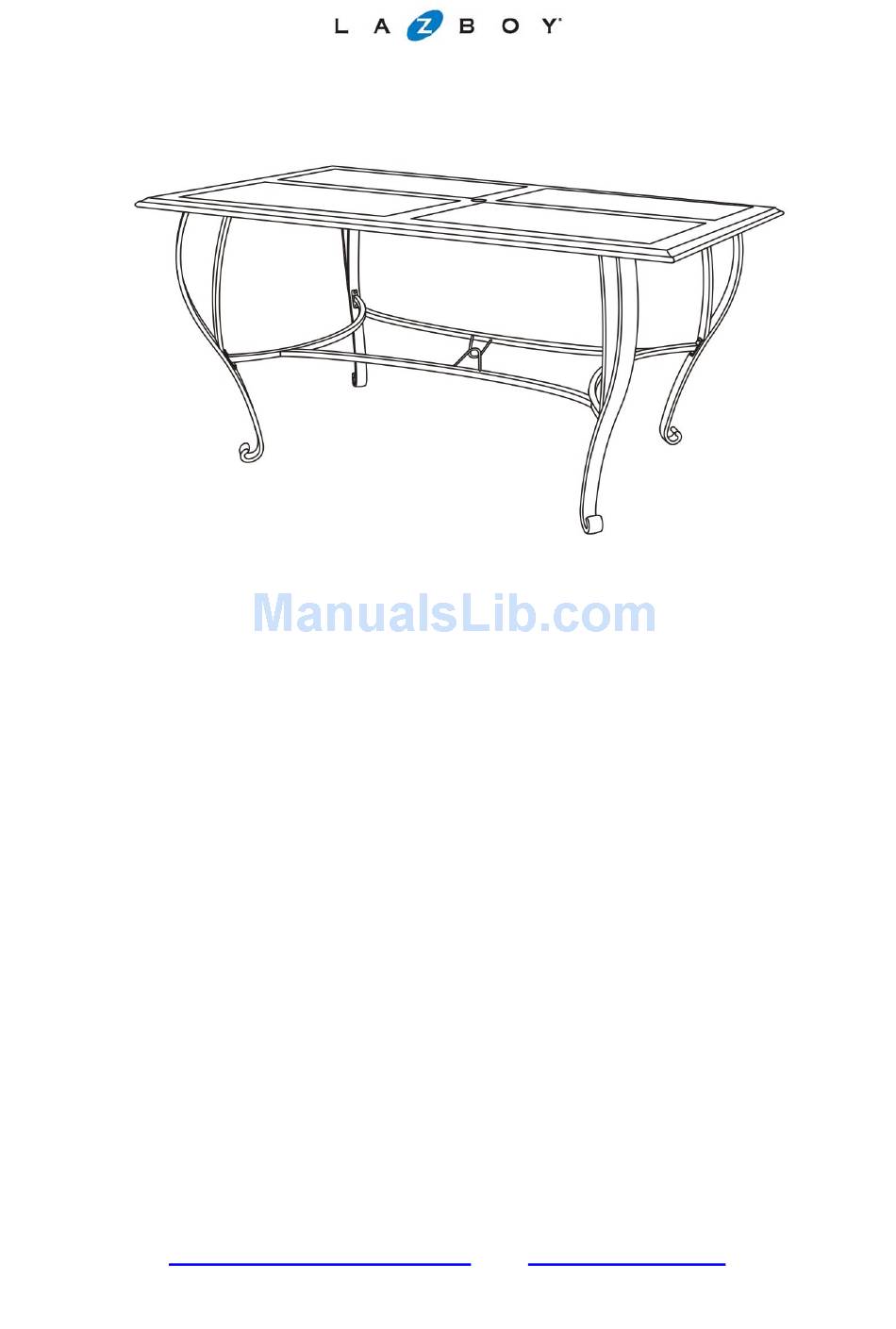

* Rectangular Dining Table
Product Code: D71 M80905
UPC Code: 7-22938-07954-4
Date of Purchase: __ / __ / __
If you have any problems with this product, DO NOT RETURN IT TO THE STORE.
CALL OUR CUSTOMER SERVICE HOT-LINE AT
866-391-4868
8am-5pm (EST), Monday-Friday.
View the expanded assortment of outdoor living product on-line at
WWW.lazboyoutdoor.com
and
WWW.sears.com
Page 1 of 5
Advertisement
Table of Contents
Related Manuals for LAZBOY D71 M80905
Summary of Contents for LAZBOY D71 M80905
- Page 1 OWNER’S MANUAL Sears Peyton 7pc dining set * Rectangular Dining Table Product Code: D71 M80905 UPC Code: 7-22938-07954-4 Date of Purchase: __ / __ / __ If you have any problems with this product, DO NOT RETURN IT TO THE STORE. CALL OUR CUSTOMER SERVICE HOT-LINE AT 866-391-4868 8am-5pm (EST), Monday-Friday.
- Page 2 W A R R A N T Y This warranty is a limited warranty, and applies to the original purchase only. Proof of purchase is required. This is a residential warranty and does not apply to commercial use. This collection carries a 5 year limited warranty and is valid from original date of purchase to the original owner (proof of purchase required): NOTE: Glass breakage is not a warranted item.
-
Page 3: Parts List
CAUTION: Read all the instruction before assembly. Failure to do so may result in faulty assembly and potential injury! Assemble the item on a soft, non-abrasive surface such as a carpet or cardboard to avoid damaging the item. Seek assistance to assemble bulky or heavy items. After final alignment, make sure all bolts, nuts and nut covers are securely tightened. - Page 4 Step2: Attach the table legs (B) to table rim (A) with M6x15mm hex head bolt (D1), M6x30mm hex head bolt (D2), M6 washer (E) using hex wrench (G). NOTE: Please do not fully tighten bolts at this step. (See Figure 2) Figure 2 Step3: Attach the connector ring (C) to table legs (B) with M6x15mm hex head bolt (D1), M6 washer (E).
- Page 5 Figure 4 Now your table is ready for your enjoyment! Page 5 of 5...
