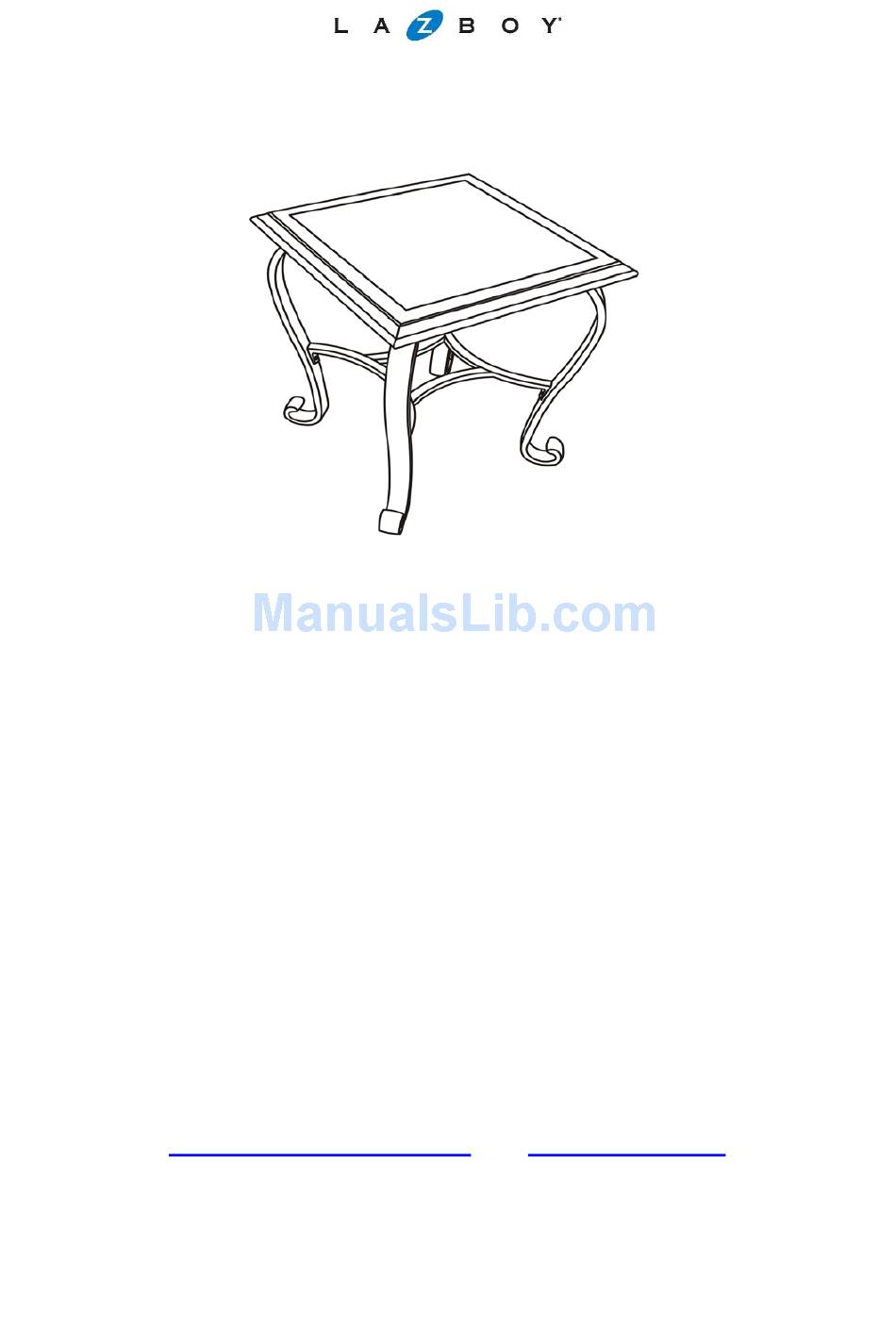

OWNER'S MANUAL
Sears Peyton Side Table
Product Code: D71 M80903
UPC Code: 7-22938-07947-6
Date of Purchase: __ / __ / __
If you have any problems with this product, DO NOT RETURN IT TO THE STORE.
CALL OUR CUSTOMER SERVICE HOT-LINE AT
866-391-4868
8am-5pm (EST), Monday-Friday.
View the expanded assortment of outdoor living product on-line at
WWW.lazboyoutdoor.com
and
WWW.sears.com
.
Page 1 of 5
Advertisement
Table of Contents
Related Manuals for LAZBOY D71 M80903
Summary of Contents for LAZBOY D71 M80903
- Page 1 OWNER’S MANUAL Sears Peyton Side Table Product Code: D71 M80903 UPC Code: 7-22938-07947-6 Date of Purchase: __ / __ / __ If you have any problems with this product, DO NOT RETURN IT TO THE STORE. CALL OUR CUSTOMER SERVICE HOT-LINE AT 866-391-4868 8am-5pm (EST), Monday-Friday.
- Page 2 W A R R A N T Y This warranty is a limited warranty, and applies to the original purchase only. Proof of purchase is required. This is a residential warranty and does not apply to commercial use. This collection carries a 5 year limited warranty and is valid from original date of purchase to the original owner (proof of purchase required): NOTE: Glass breakage is not a warranted item.
-
Page 3: Parts List
CAUTION: Read all the instruction before assembly. Failure to do so may result in faulty assembly and potential injury! Assemble the item on a soft, non-abrasive surface such as a carpet or cardboard to avoid damaging the item. Seek assistance to assemble bulky or heavy items. After final alignment, make sure all bolts, nuts and nut covers are securely tightened. - Page 4 Assembly Steps: Step1: Turn the table rim (A) upside down on a soft, non-abrasive surface carefully.(See Figure 1) Figure 1 Step2: Attach the table legs (B) to table rim (A) with M6 x 15mm hex head bolt (D), M6 washer (E). (See Figure 2) Figure 2 Step3: Attach the leg connector (C) to table legs (B) with M6 x 15mm hex head bolt (D), M6 washer...
- Page 5 Step 4: Then turn your table right side up. (See Figure 4) Figure 4 Step 4: Place ceramic tile (H) on the table rim. (See Figure 5) Figure5 Now your table is ready for your enjoyment! Page 5 of 5...
