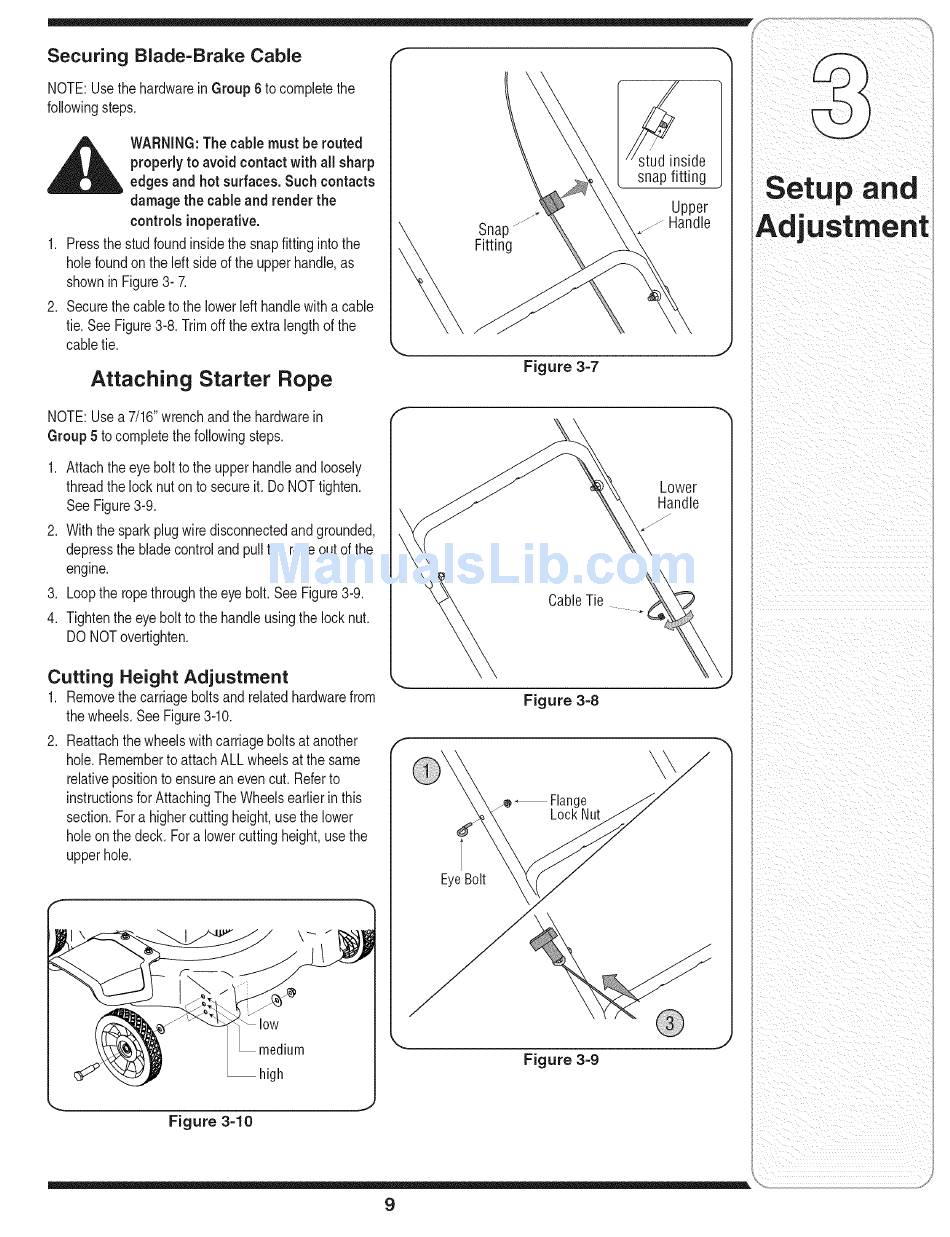

MTD 11A-021G000 Operator's Manual page 9

Securing
Blade-Brake Cable
NOTE:Usethe hardwarein Group 6 to completethe
followingsteps.
_i= WARNING:The cable must be routed
properly to avoid contactwith all sharp
edges and hot surfaces. Such contacts
damage the cable and renderthe
controls inoperative.
1. Pressthe stud foundinsidethe snapfittinginto the
hole foundon the left sideof the upper handle,as
shownin Figure3- 7.
2. Securethe cableto the lowerleft handlewith a cable
tie. See Figure3-8.Trim off the extra lengthof the
cabletie.
Attaching Starter Rope
_stud inside
snap fitting
Snapfz-
Fitting
Upper
jJ Handle
k._ j
Figure 3-7
NOTE:Usea 7/16"wrenchand the hardwarein
Group 5 to completethefollowingsteps.
1. Attachtheeye bolt tothe upperhandleand loosely
threadthe lock nuton to secureit. Do NOTtighten.
See Figure3-9.
2. With the sparkplug wiredisconnected and grounded,
depressthe bladecontroland pull the rope out of the
engine.
3. Loopthe ropethroughtheeye bolt. See Figure3-9.
4. Tightentheeye boltto thehandle usingthe lock nut.
DO NOTovertighten.
CableTie
Lower
Handle
_J
Cutting Height Adjustment
1. Removethe carriageboltsand relatedhardwarefrom
thewheels.See Figure3-10.
2. Reattachthe wheelswith carriagebolts at another
hole.Rememberto attachALL wheelsat the same
relativepositionto ensurean evencut. Referto
instructionsfor AttachingTheWheelsearlier in this
section.Fora highercuttingheight, usethe lower
hole on the deck. Fora lowercutting height,usethe
upper hole.
Figure 3-8
_ _ Flange
LockNut
d
Eye Bolt
_. ,m J
Figure 3-9
Setup and
Adjustment
Figure 3-10
