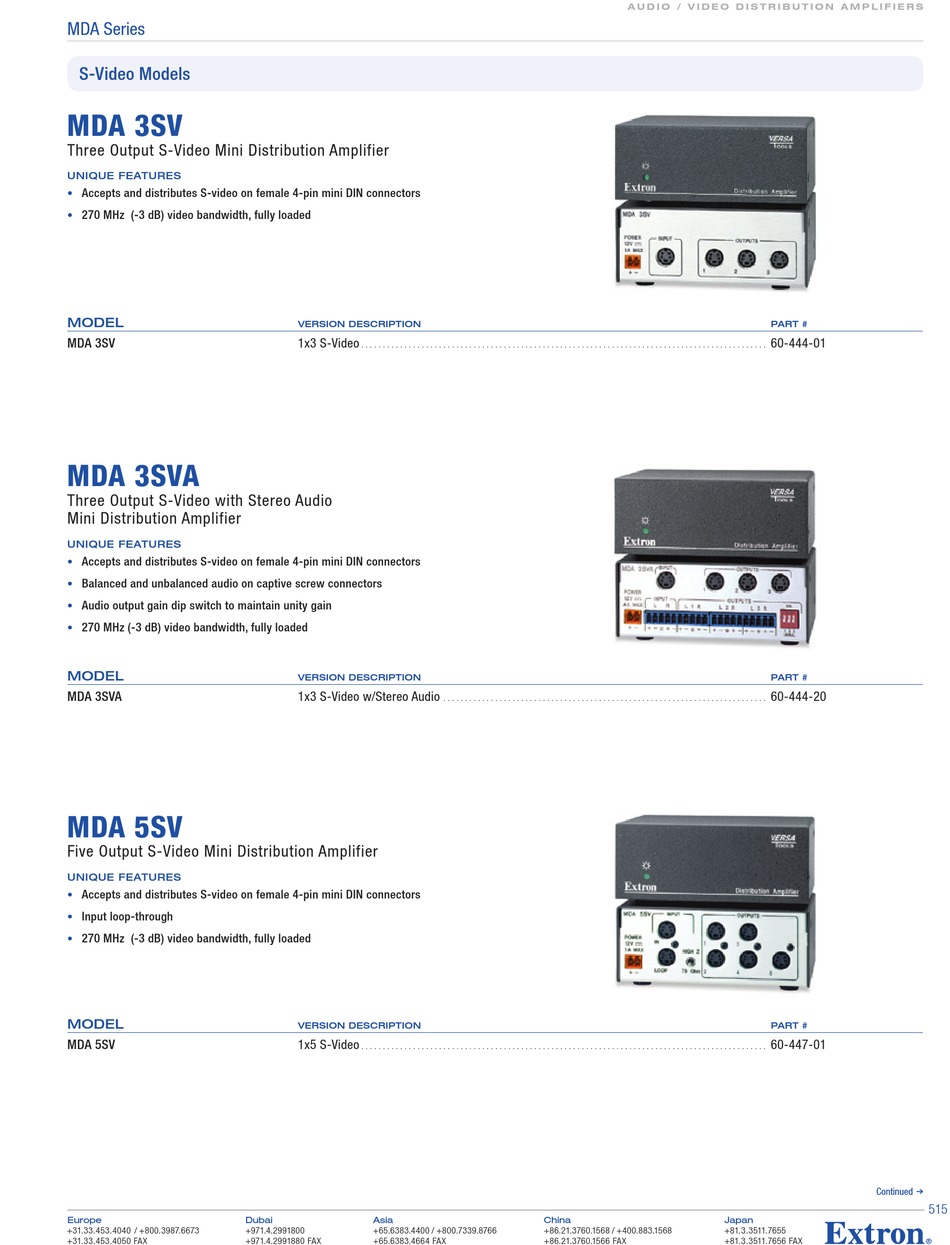

Extron electronics MDA 3V 1x3 Specification Sheet page 3

MDA Series
S-Video Models
MDA 3SV
Three Output S-Video Mini Distribution Amplifier
unique feAtures
Accepts and distributes S-video on female 4-pin mini DIN connectors
•
270 MHz (-3 dB) video bandwidth, fully loaded
•
moDeL
MDA 3SV
MDA 3SVA
Three Output S-Video with Stereo Audio
Mini Distribution Amplifier
unique feAtures
Accepts and distributes S-video on female 4-pin mini DIN connectors
•
Balanced and unbalanced audio on captive screw connectors
•
Audio output gain dip switch to maintain unity gain
•
270 MHz (-3 dB) video bandwidth, fully loaded
•
moDeL
MDA 3SVA
MDA 5SV
Five Output S-Video Mini Distribution Amplifier
unique feAtures
Accepts and distributes S-video on female 4-pin mini DIN connectors
•
Input loop-through
•
270 MHz (-3 dB) video bandwidth, fully loaded
•
moDeL
MDA 5SV
europe europe Dubai Dubai
+31.33.453.4040 / +800.3987.6673 +31.33.453.4040 / +800.3987.6673 +971.4.2991800 +971.4.2991800
+31.33.453.4050 FAX +31.33.453.4050 FAX +971.4.2991880 FAX +971.4.2991880 FAX
version DesCriPtion
1x3 S-Video
.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
version DesCriPtion
1x3 S-Video w/Stereo Audio
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
version DesCriPtion
1x5 S-Video
.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Asia Asia
+65.6383.4400 / +800.7339.8766 +65.6383.4400 / +800.7339.8766
+65.6383.4664 FAX +65.6383.4664 FAX
A u D i o / v i D e o D i s t r i b u t i o n A m p l i f i e r s
China China
+86.21.3760.1568 / +400.883.1568 +86.21.3760.1568 / +400.883.1568
+86.21.3760.1566 FAX +86.21.3760.1566 FAX
PArt #
60-444-01
PArt #
60-444-20
PArt #
60-447-01
