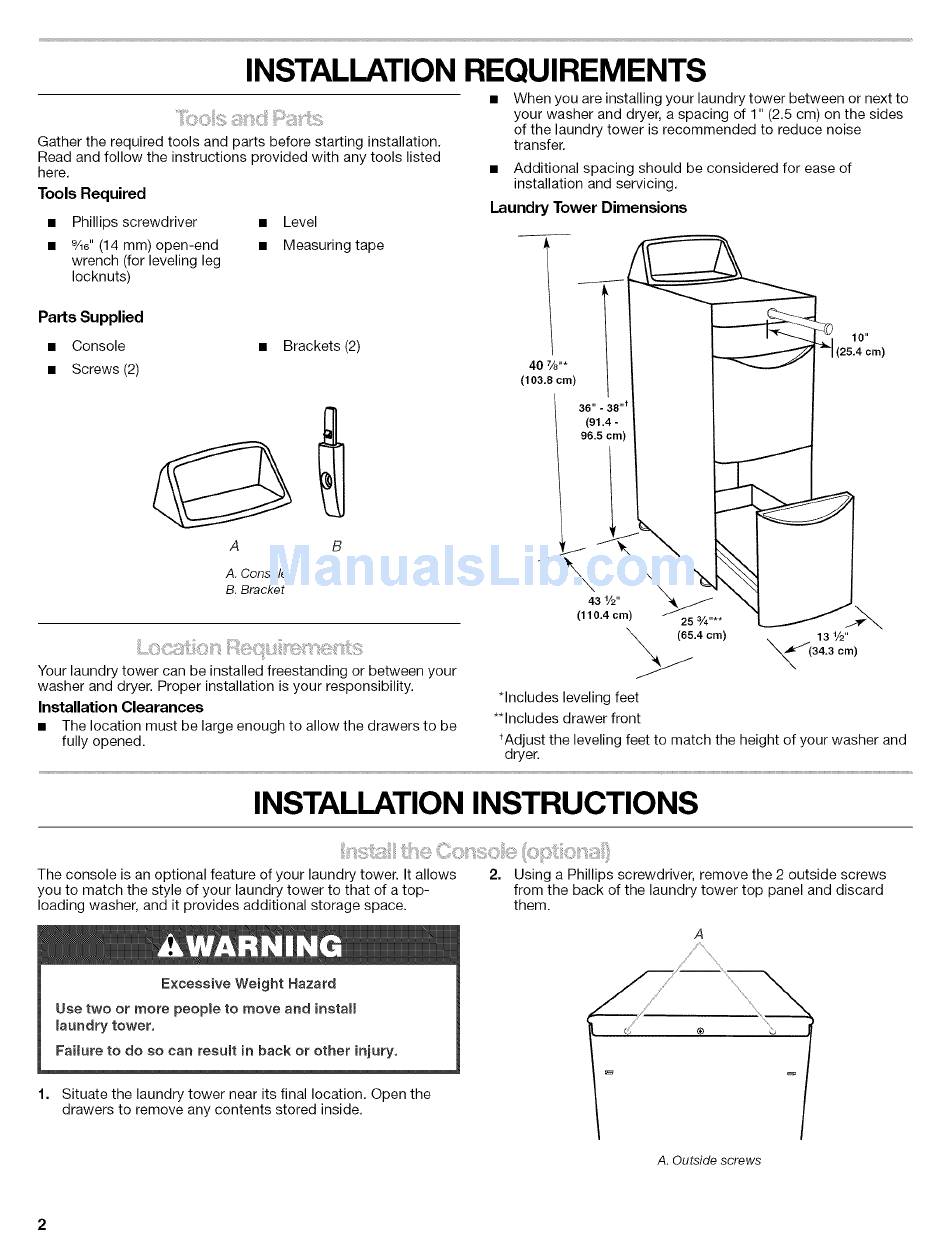

INSTALLATION REQUIREMENTS
Gather the required tools and parts before starting installation.
Read and follow the instructions
provided with any tools listed
here.
Tools Required
Phillips screwdriver
Level
%6" (14 mm) open-end
Measuring tape
wrench (for leveling leg
Iocknuts)
Parts Supplied
Console
Screws (2)
Brackets (2)
A
B
A. Console
B. Bracket
Your laundry tower can be installed freestanding
or between your
washer and dryer. Proper installation is your responsibility.
Installation
Clearances
The location must be large enough to allow the drawers to be
fully opened.
When you are installing your laundry tower between or next to
your washer and dryer, a spacing of 1" (2.5 cm) on the sides
of the laundry tower is recommended
to reduce noise
transfer.
Additional spacing should be considered for ease of
installation and servicing.
Laundry Tower Dimensions
40 %"*
(103.8 cm)
36"
- 38 "t
(91.4 -
96.5
cm)
43 V2"
(110.4 cm)
25 3/4....
*Includes leveling feet
**Includes drawer front
tAdjust the leveling feet to match the height of your washer and
dryer.
INSTALLATION INSTRUCTIONS
The console is an optional feature of your laundry tower. It allows
you to match the style of your laundry tower to that of a top-
loading washer, and it provides additional storage space.
Excessive
Weight Hazard
Use two or more people to move and install
laundry tower.
Failure to do so can result in back or other injury.
1. Situate the laundry tower near its final location. Open the
drawers to remove any contents stored inside.
2=
Using a Phillips screwdriver, remove the 2 outside screws
from the back of the laundry tower top panel and discard
them.
A. Outside screws
