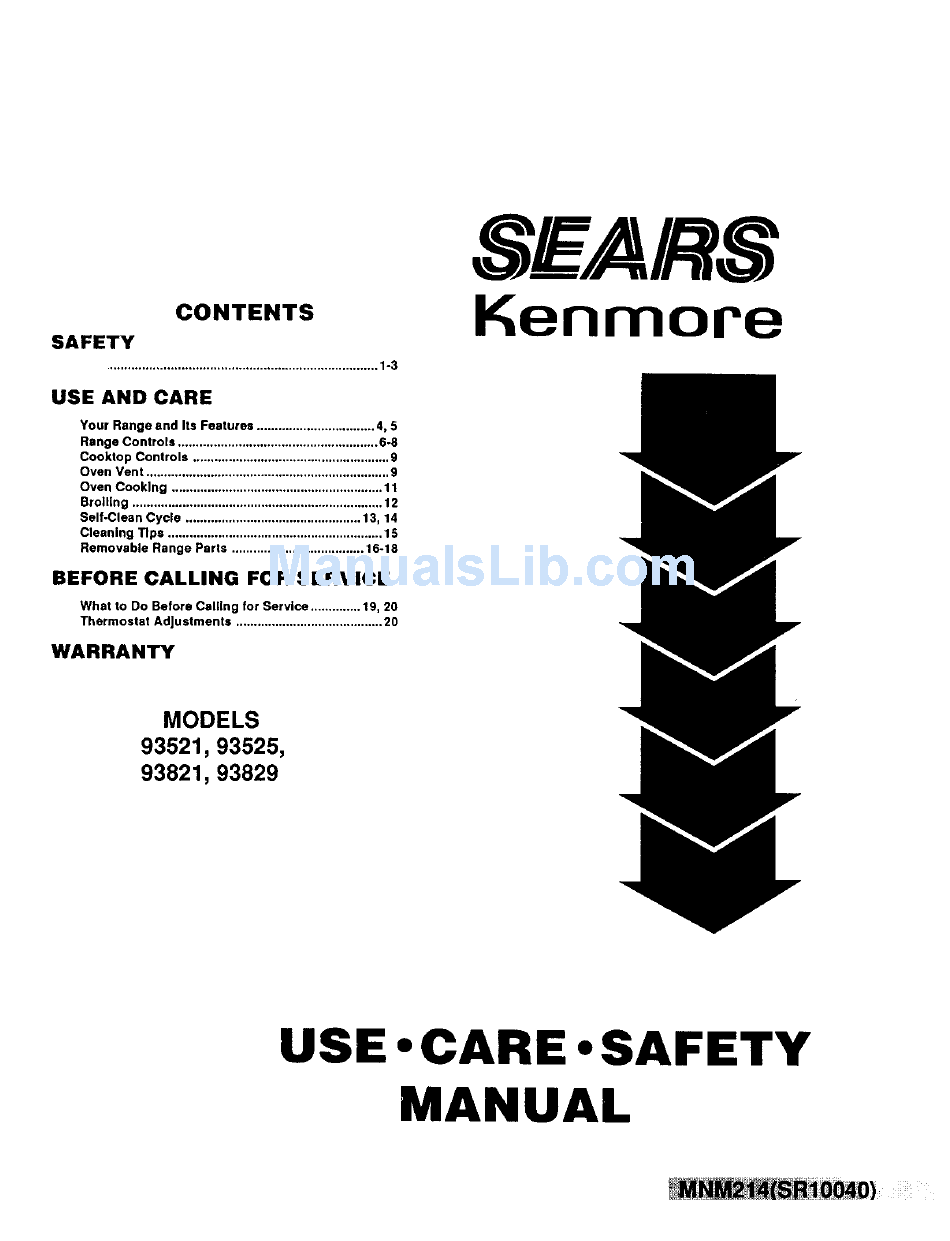

CONTENTS
SAFETY
......................................................
. .....................
1-3
USE AND CARE
Your Range and Its Features .................................
4, 5
Range Controls ........................................................
6-8
Cooktop Controls .......................................................
9
Oven Vent ....................................................................
9
Oven Cooking ...........................................................
11
Broiling ......................................................................
12
Self-Clean Cycle .................................................
13, 14
Cleaning Tips ............................................................
15
Removable
Range Parts .....................................
16-18
What to Do Before Calling for Service .............. 19, 20
.........................................
20
SEARS
Kenmore
MODELS
93521, 93525,
93821, 93829
USE • CARE • SAFETY
MANUAL
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Kenmore 93521
Summary of Contents for Kenmore 93521
-
Page 1: Table Of Contents
SEARS Kenmore CONTENTS SAFETY ................USE AND CARE Your Range and Its Features ......... 4, 5 Range Controls ............Cooktop Controls ............Oven Vent ..............Oven Cooking ............Broiling ..............Self-Clean Cycle ..........13, 14 Cleaning Tips ............ - Page 2 .._ii!ii!!ili_ii_!ili!iiill _:_:: _ :ii!_i_i._ _ii_:_ _:_i_ %i_:i :_i_iii_ ..IMPORTANT INSTRUCTIONS FOR YOUR SAFETY SAVE THESE INSTRUCTIONS Read all instructions before using this appliance. When using electrical appliances, basic safety precautions should be followed, including following: Teach children not to playwlth range knobs or any other part of the range, Never leave children alone or unat-...
- Page 3 Always keep the range area clear and free from things that will burn. Never use your range for warmlng CAUTION: or heating a room. You could be burned or seriously Injured. Such Never store things In an oven misuse could also cause damage to near cooktop...
- Page 4 IMPORTANT SAFETY INSTRUCTIONS Keep this book for later use. Never block free airflow through the oven vent. Be sure your range Is Installed and grounded properly Never try to move a pan of hot fat, especially a deep fat by a qualified technician. fryer.
-
Page 5: Range Controls
YOUR RANGE MODELS 93521 93525 IMPORTANT: The model and serial number of your range can be found on a tag, behind the storage drawer panel, on the left side of the range front frame. Oven ht Switch Range Control Cooktop Indicator (See pages 6-8) (Push... - Page 6 Vent N_FSF I...
- Page 7 Range Control PROGRAM CLOCK/ CANCELS BAKE, UP ARROW PAD STATUS TIMER TEMPERATURE FUNCTION BROIL OR DISPLAY DISPLAY DISPLAY DISPLAY (INCREASES TIME CLEAN OPERATION OR TEMPERATURE) DOWN ARROW PAD PRESS TO TURN SET AUTOMATIC (DECREASES TIME TIMER ON AND OFF OVEN OPERATIONS OR TEMPERATURE) Your range control Is touch controlled.
- Page 8 TO RESET TIMER: TO CANCEL BAKE "TIMER" will stop flashing and the TIMER will start counting down a few seconds after you stop touching the UP or DOWN arrow. If you pause while selecting the time and the timer activates, press TIMER again and continue to set the time.
- Page 9 DELAYED ON AND OFF: Never let food, such as dairy products, You can set the oven to turn on and off automstlcally. fish, meat, poultry, etc., sit for more The control will calculate the time to start cooking. than I hour betorecooklng starts when you set your oven for a delay start.
- Page 10 Start Things Cooking COOKTOPCOOKING For best cooking results and energy efficient operation, The sign near each cooktop control knob shows which element Is turned on by that knob. you should use pans that: A. Have flat bottoms and straight sides. B.
- Page 11 QUESTIONS & ANSWERS Q. May I can foods and preserves on my surface Q. Why am I not getting the heat I need from my units? units even though I have knobs on the right setting? A. Yes, but only use cookware designed for canning purposes.
-
Page 12: Oven Cooking
OVEN COOKING When cooking a food for the first time In your new Do not lock the oven lock/unlock handle while oven, use time given on reclpos as a guide. heldng or broiling. The oven lock/unlock handle Is used for self-clean only. Your new oven has been set correctly at the factory and Is more apt to be accurate than the oven It Cakes, cookies, muffins, and quick breads should... -
Page 13: Broiling
BROILING POSITIONING BROILER Broiling Is cooking by direct heat from the broil element. Tender cuts of meat or marlnsted meat should be se- lected for broiling. For best results steaks and chops should be at least 3/4" thick. After placing food on the broiler pan, put the pan on an oven reck In the proper position. - Page 14 THE SELF-CLEAN CYCLE soil Frequent cleaning will help prevent excessive soil buildup. Do not rub the door seal. The fiberglass BEFORE A CLEAN CYCLE material of the seal has an extremely low resistance to abrasion. An Intact and well fitting oven door seal 1.
-
Page 15: Self-Clean Cycle
TO INTERRUPT A CLEAN CYCLE: TO SET SELF-CLEAN CYCLE: 1. Slide door loCk handle to the right. You may need to I. Push CLEAR. lightly press on the door to lock It properly. Follow InstrucUons under "WHEN A CLEAN 2. Push CLEAN. The time display will show (---). -
Page 16: Cleaning Tips
CLEANING TIPS On the following pages, all removable parts on your range are shown. Refer to those pages when cleaning your range. Warm water, a mild detergent and a soft cloth are safe to use on all cleanable parts of your range. Do not use metal scouring pads, except where recommended. - Page 17 ANTI-TIP DEVICE ADJACENT CABINET OR FINAL LOCATION OF OUTSIDE EOGE RANGE SIDE PANEL If your range is removed for cleaning, BRACKET TO BE FLUSH DR RIGHT SIDE servicing or any reason, be sure anti. device re-engaged properly when the range is replaced.
- Page 18 REMOVABLE KNOBS MOLDED The control knobs may be removed for easy cleaning by pulling the knob straight off stem. Be sure that the knob Is In the OFF posltlon before removal. Hint: Slip a thin cloth (such as a handkerchief) or a piece of string under and around the knob edge and pull up.
- Page 19 REMOVABLE OVEN RACKS Be careful not to scratch the oven finish when installing or removing oven racks. To install: BUMP 1. Set the raised back edge of the rack on a pair of rack guides. 2. Push the rack In until you reach the bump In the rack guide, then lift the front of the rack and push the rack all the way In.
-
Page 20: Before Calling For Service
BEFORE CALLING FOR SERVICE Save time and money -- Check this list before you call for service. To eliminate unnecessary service calls, first, read all the Instructions In this manual carefully. Then, If you have a problem, always check this list of common problems and possible solutions before you call for sarvlce. If you do have a problem you cannot fix yourself, call your nearest Sears Store or Servlca Center for help. -
Page 21: Thermostat Adjustments
Before Calling for Service DON'T CALL FOR SERVICE UNTIL YOU CHECK PROBLEM POSSIBLE CAUSE • Foods do not broil • Check broil pan placement. See broiling • Improper rack position section. properly • Oven preheated Do not preheat when broiling. •... - Page 22 NOTES...
- Page 23 NOTES...
-
Page 24: Warranty
"We Service What We Sell" is our assurance to you that you can depend on Sears for service because Sears service is nationwide. Your Kenmore Range has added value when you consider that Sears has a service unit near you staffed by Sears trained technicians.., professional technicians specifically trained on Sears appliances, having the parts, tools and equipment to ensure that we meet our pledge to you -- "We Service What We SelW'...
