Shaping
Shaping is a unique way to use your beautiful 9mm
stitches, sequences or even embroidery designs to
form new shapes.
The creative vision™ 5.5 version contains a number
of new shaping functions for more creative
possibilities with shapes.

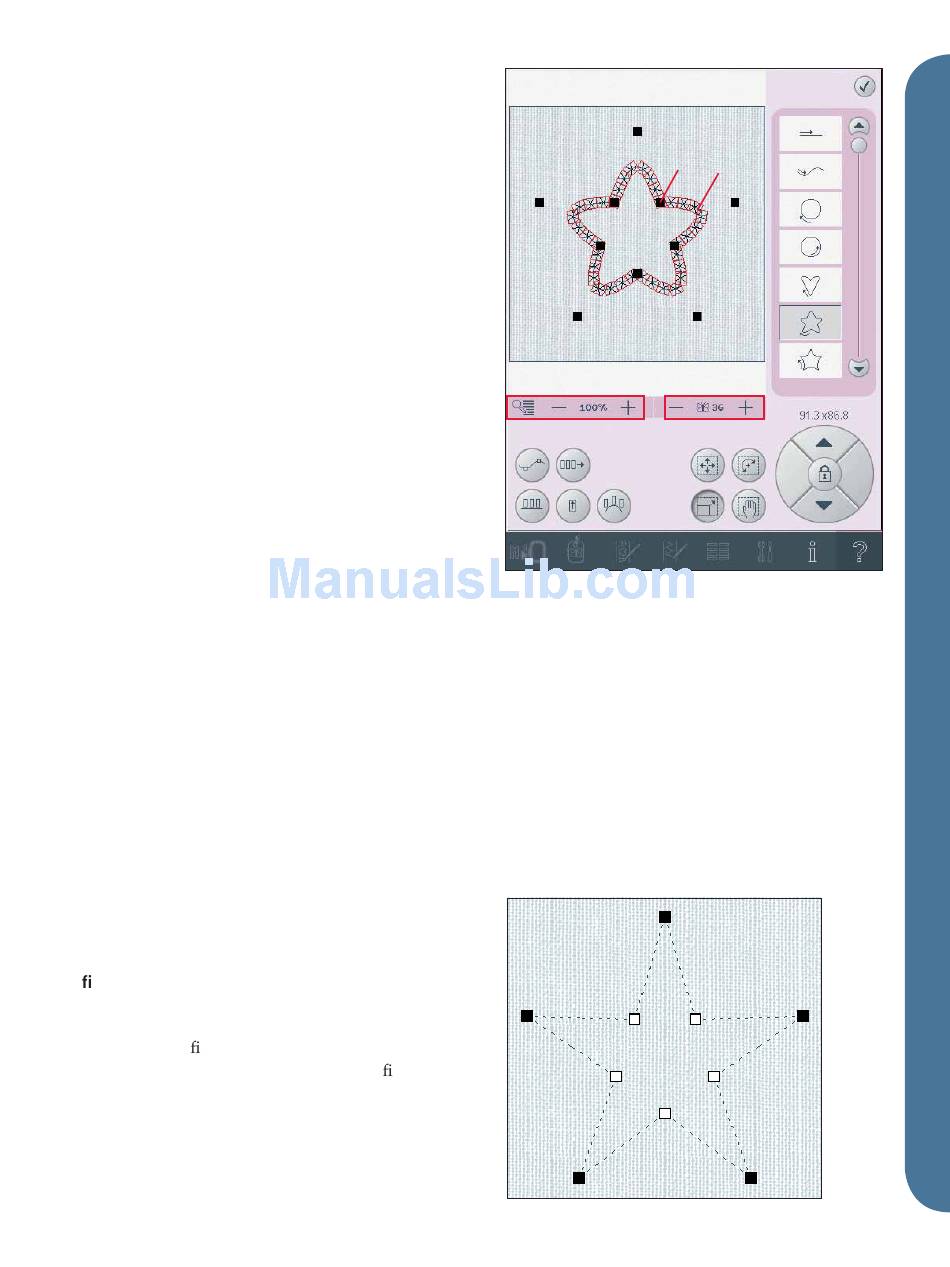

Shaping overview
A Select shape
B Zoom
C Delete/Duplicate last object
D Select control points
E Select spacing
F Select line positioning
G Select side positioning
H Select design angle
I Control points
J Baseline
Select shape (A)
Select a shape by touching it in the list (A).
The stitches or designs will be placed along the
baseline in the order that they were loaded into
embroidery edit. The stitches or designs will follow
the line in the direction indicated by a small arrow
in the icons in the select shape list.
Delete/Duplicate last object (C)
If you want to delete the last object in the shape,
touch the - icon. Only the last object in the shape
will be deleted.
If you want to add a copy of the last object, use
the + icon. The last object in the shape will be
duplicated and the copy will be added after the last
object on the baseline.
De nition of a control point
A control point is a point affecting the selected
shape. Each shape is built by several control points.
Together they de ne what the shape will look like.
A selected control point is marked with a lled
square (K). An unselected control point is marked
with an outlined square (L). All control points are
visible when you are editing the points.
By adjusting the control points, the selected shape
can be changed with unlimited possibilites.
