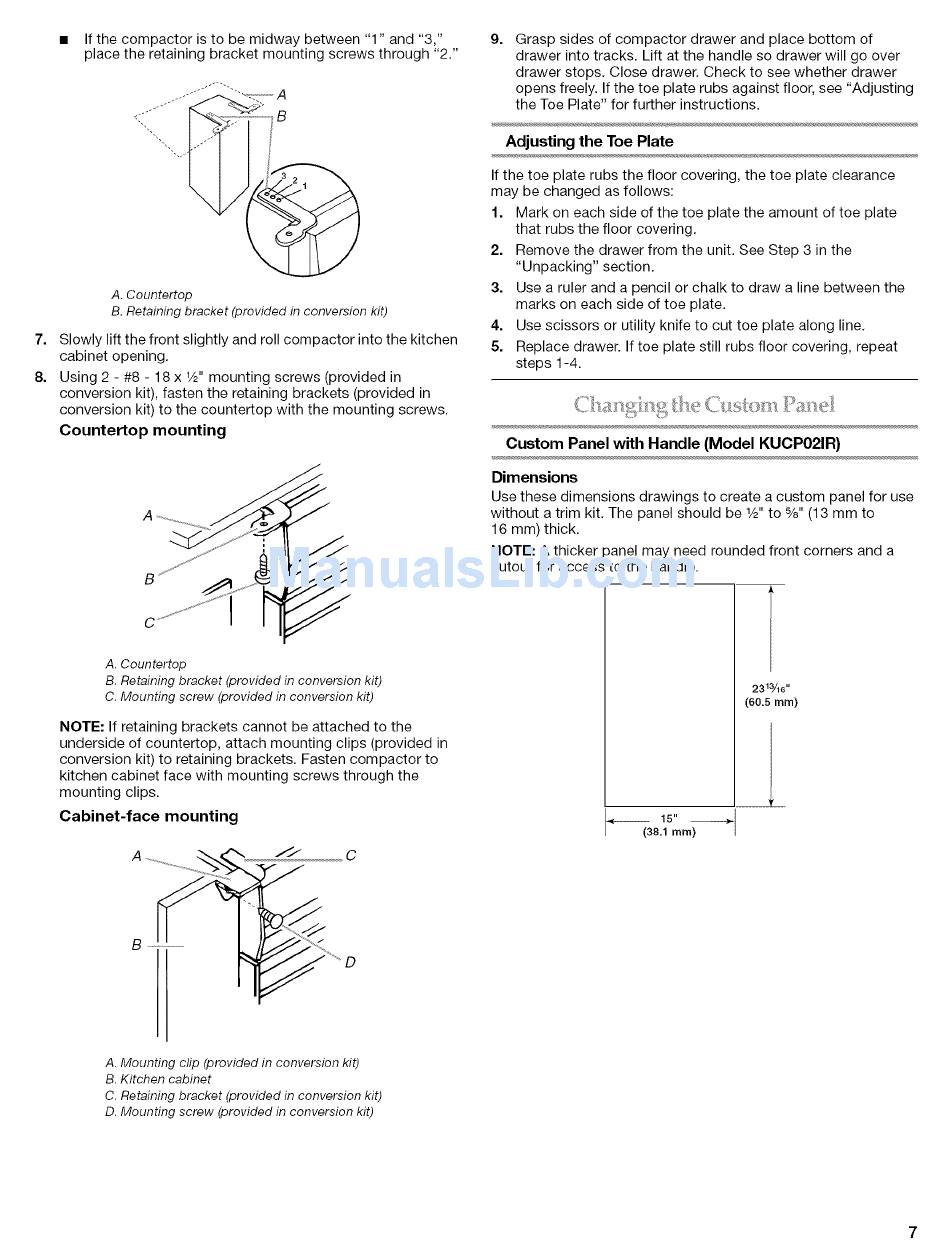

If the compactor
is to be midway between "1" and "3,"
place the retaining bracket mounting screws through "2."
j-
<ii
j/
A. Countertop
B. Retaining bracket (provided in conversion kit)
Slowly lift the front slightly and roll compactor
into the kitchen
cabinet opening.
Using 2 - #8 - 18 x 1/2"mounting screws (provided in
conversion kit), fasten the retaining brackets (provided in
conversion kit) to the countertop
with the mounting screws.
Countertop
mounting
A. Countertop
B. Retaining bracket (provided in conversion kit)
C. Mounting screw (provided in conversion kit)
NOTE: If retaining brackets cannot be attached to the
underside of countertop,
attach mounting clips (provided in
conversion kit) to retaining brackets. Fasten compactor
to
kitchen cabinet face with mounting screws through the
mounting clips.
Cabinet-face
mounting
9,
Grasp sides of compactor
drawer and place bottom of
drawer into tracks. Lift at the handle so drawer will go over
drawer stops. Close drawer. Check to see whether drawer
opens freely. If the toe plate rubs against floor, see "Adjusting
the Toe Plate" for further instructions.
Adjusting the Toe Plate
If the toe plate rubs the floor covering, the toe plate clearance
may be changed as follows:
1. Mark on each side of the toe plate the amount of toe plate
that rubs the floor covering.
2. Remove the drawer from the unit. See Step 3 in the
"Unpacking"
section.
3. Use a ruler and a pencil or chalk to draw a line between the
marks on each side of toe plate.
4. Use scissors or utility knife to cut toe plate along line.
5. Replace drawer. If toe plate still rubs floor covering, repeat
steps 1-4.
Custom Panel with Handle (Model KUCP021R)
Dimensions
Use these dimensions
drawings to create a custom panel for use
without a trim kit. The panel should be 1/2"to %" (13 mm to
16 mm) thick.
NOTE: A thicker panel may need rounded front corners and a
cutout for access to the handle.
2313/16"
(60.5 turn)
15"
--
_'_
(38.1 mm)
A. Mounting clip (provided in conversion kit)
B. Kitchen cabinet
C. Retaining bracket (provided in conversion kit)
D. Mounting screw (provided in conversion kit)
