5−06 Litho in U.S.A. (ebk)

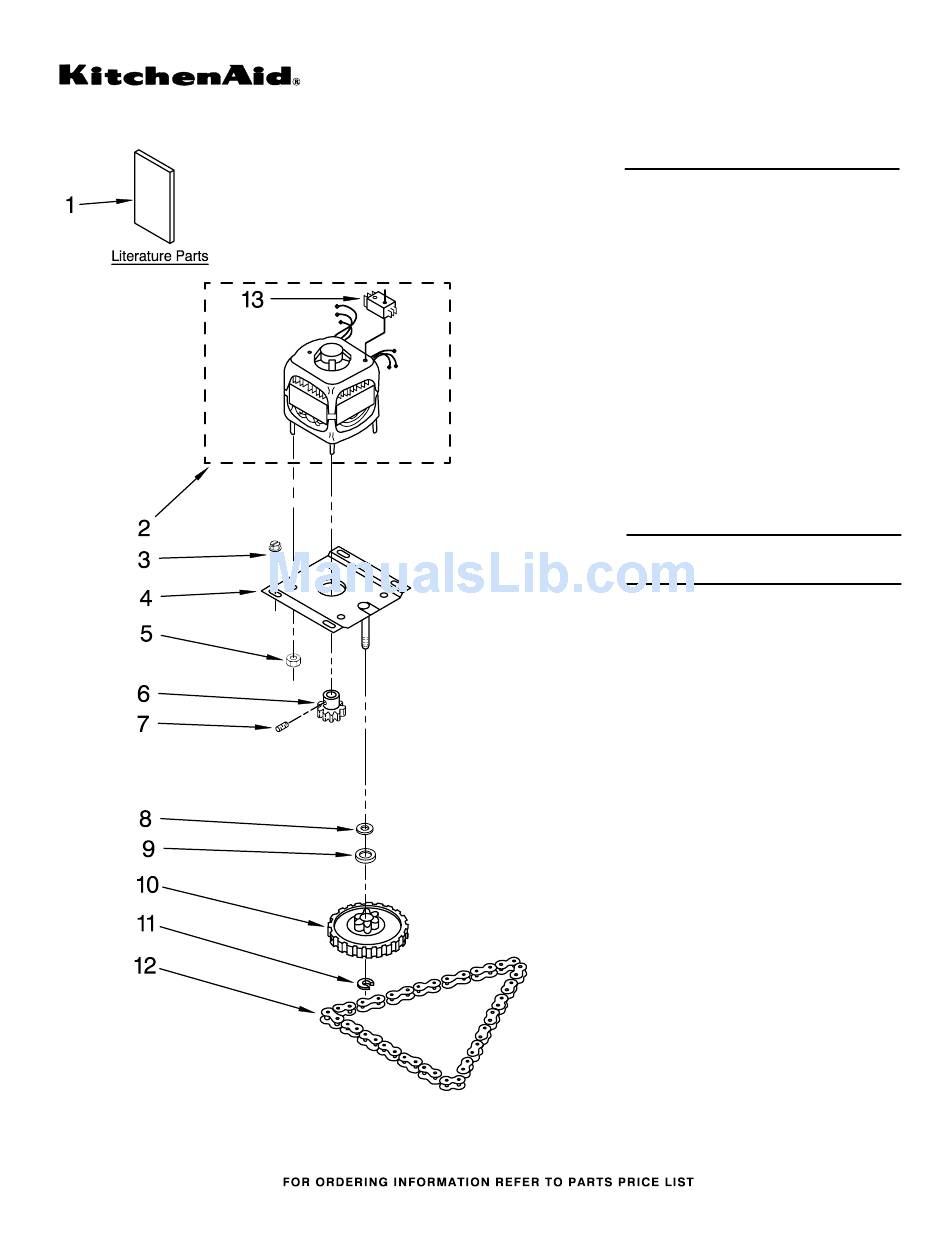

MOTOR AND DRIVE PARTS
For Models: KUCS03FSSS0
(Stainless)
1
TRASH COMPACTOR
Illus.
Part
No.
No.
DESCRIPTION
1
Literature Parts
9871923 Tech Sheet
9872215 Guide, Use & Care
2
9870343 Motor, Drive
(Includes No. 13)
3
9871067 Screw,
1/4−20 x 3/4 (4)
4
776327 Plate, Drive
Mount
5
776338 Locknut, 10−32 (4)
6
4149667 Gear, Drive
7
454512 Pin, Slotted
Spring
8
776035 Washer, Wave
9
297462 Washer, Thrust
10
777124 Gear, Driven
11
776036 Clip, Ring
12
780477 Chain, Drive
13
777971 Switch, Motor
Parts Not Illustrated and
Optional Parts (Not Included)
9870118 Undercounter
Conversion Kit
Part No. 882798
