PRODUCT MODEL NUMBERS
KUCS02FR
KUCS03FS
KUCV02FR
KUCS03FT
Electrical: 115-volt, 60-Hz, AC-only, 15- or
20-amp grounded circuit is required. A separate
circuit is recommended.

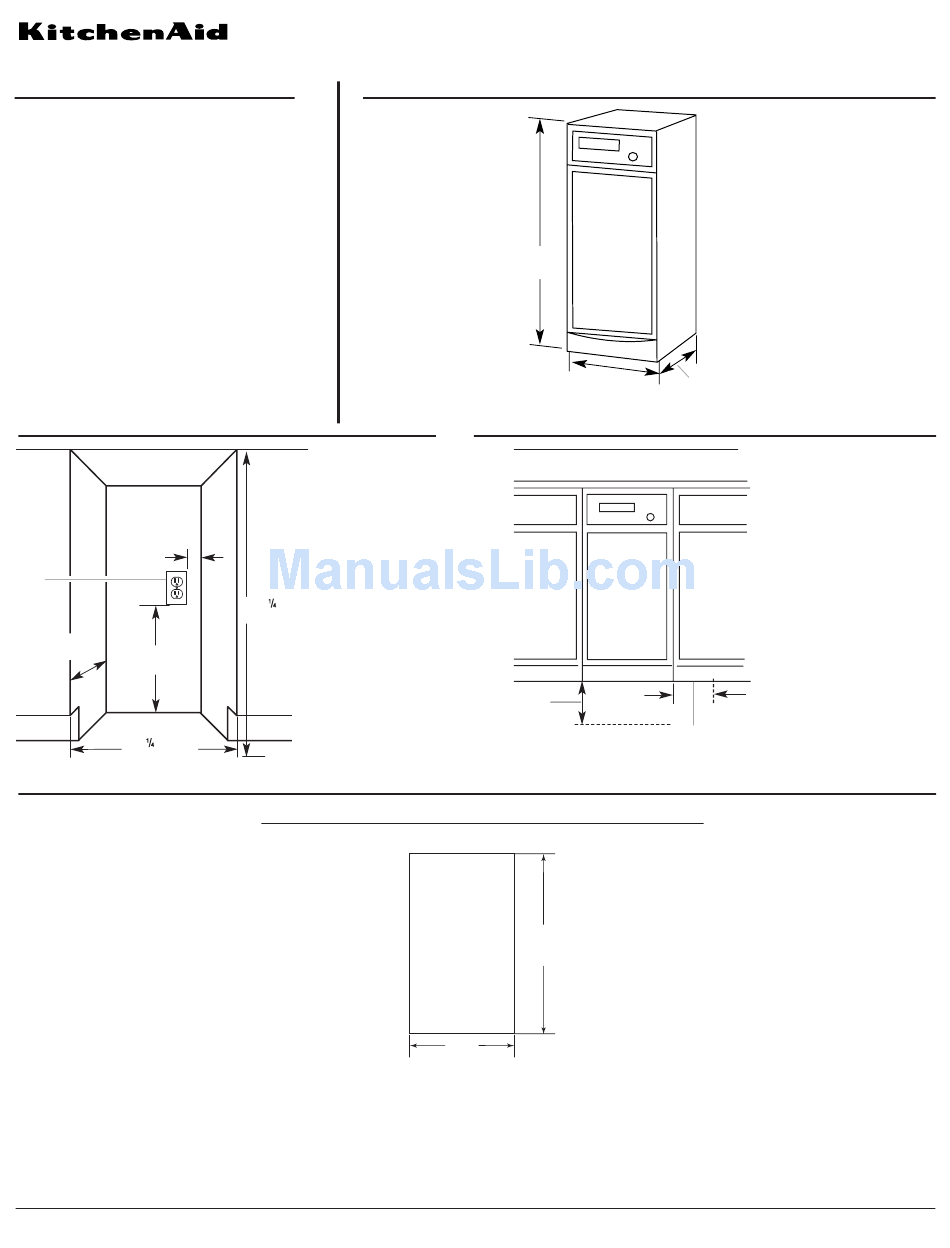

CABINET OPENING DIMENSIONS
3" min.
(7.6 cm)
A
24" min.
18" min.
(61 cm)
(45.7 cm)
15
"
min.
(38.7 cm)
CUSTOM PANELS
Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice.
®
Compactor
OVERALL DIMENSIONS
34 " min.
(87 cm)
1. Grounded electrical outlet
must be a minimum of 3"
(7.6 cm) away from
surrounding cabinets or
nearby walls as shown. It
can be placed either to the
left or the right side of the
product.
Panel should be a minimum of
1/2" (13 mm) thick.
34
1
"
8
(86.7 cm)
15"
(38.1 cm)
CLEARANCE DIMENSIONS
B
Without Trim Kit
29 ³⁄₈"
( 74.6 cm )
15"
( 38.1 cm )
Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.
24"
(61 cm)
1. Leave 6" (15.2 cm) of clearance
space to the right side of the
compactor in order to remove the
compactor bags.
2. Leave 23" (58.4 cm) of clearance in
front of the compactor in order to
fully open or remove the compactor
drawer.
A
Ref. 9872215
05-04-07
