Product Data Sheets - KitchenAid KBLS20ETSS11 User Instructions

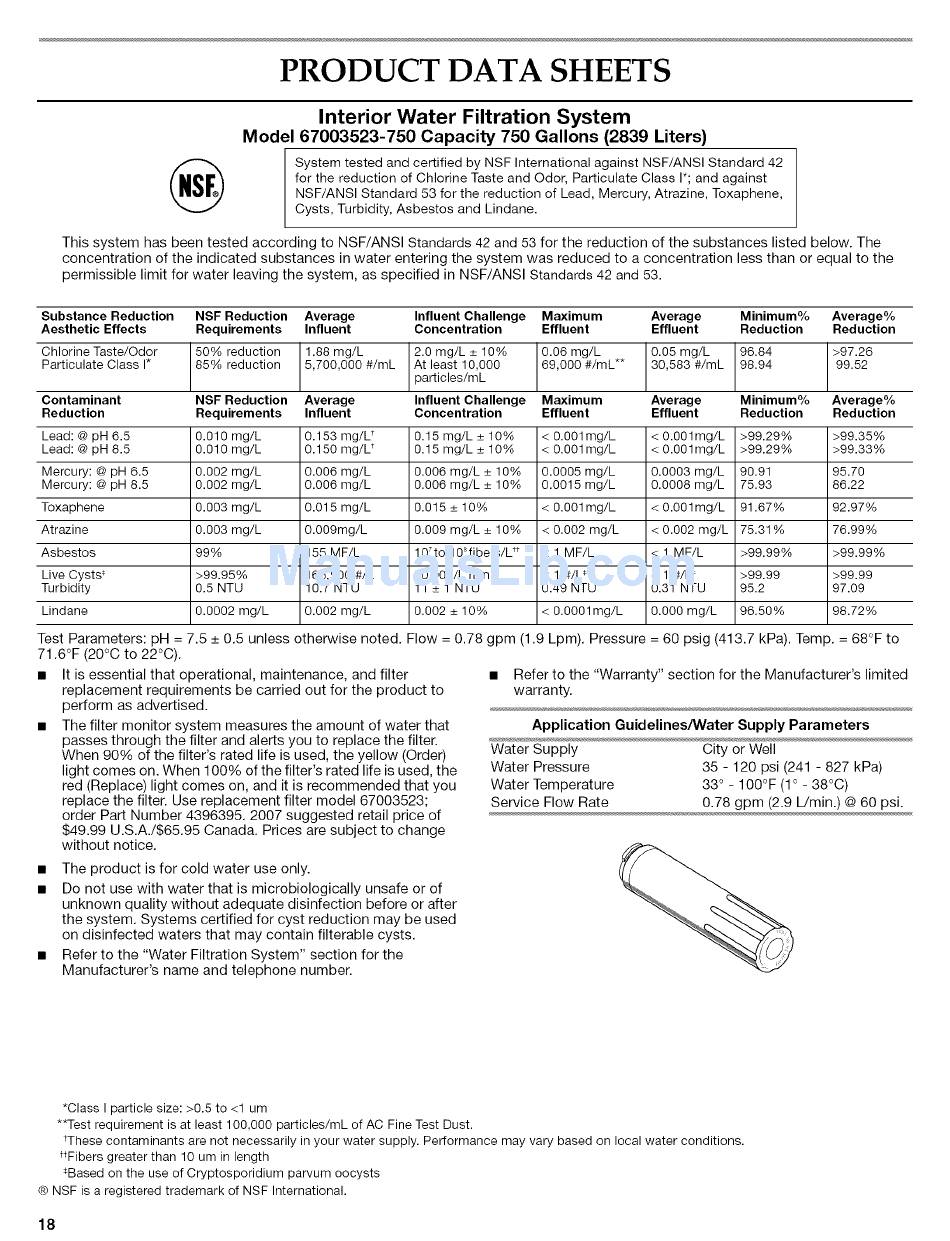

PRODUCT DATA SHEETS
Interior Water Filtration System
Model 67003523-750 Capacity 750 Gallons (2839 Liters)
System tested and certified by NSF International against NSF/ANSI Standard 42
for the reduction of Chlorine Taste and Odor, Particulate Class I*; and against
NSF/ANSl Standard 53 for the reduction of Lead, Mercury, Atrazine, Toxaphene,
Cysts, Turbidity, Asbestos and Lindane.
This system has been tested according to NSF/ANSl Standards 42 and 53 for the reduction of the substances listed below. The
concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the
permissible limit for water leaving the system, as specified in NSF/ANSI Standards 42 and 53.
Substance Reduction NSF Reduction Average Influent Challenge Maximum Average Minimum% Average%
Aesthetic Effects Requirements Influent Concentration Effluent Effluent Reduction Reduction
Chlorine Taste/Odor 50% reduction 1.88 mg/L 2.0 mg/L _+10% 0.06 mg/L ** 0.05 mg/L 96.84 >97.26
Particulate Class I* 85% reduction 5,700,000 #/mL Atparticles/mLleast 10,000 69,000 #/mL 30,583 #/mL 98.94 99.52
Contaminant NSF Reduction Average Influent Challenge Maximum Average Minimum% Average%
Reduction Requirements Influent Concentration Effluent Effluent Reduction Reduction
Lead: (-® pH 6.5 0.010 rng/L 0.153 mg/L _ 0.15 mg/L _+10% < 0.001mg/L < 0.001rng/L >99.29% >99.35%
Lead: @ pH 8.5 0.010 mg/L 0.150 mg/L t 0.15 mg/L _+10% < 0.001mg/L < 0.001mg/L >99.29% >99.33%
Mercury: @ pH 6.5 0.002 mg/L 0.006 mg/L 0.006 mg/L _+10% 0.0005 mg/L 0.0003 mg/L 90.91 95.70
Mercury: @ pH 8.5 0.002 mg/L 0.006 mg/L 0.006 mg/L _+10% 0.0015 mg/L 0.0008 mg/L 75.93 86.22
Toxaphene 0.003 mg/L 0.015 mg/L 0.015 _+10% < 0.001mg/L < 0.001mg/L 91.67% 92.97%
Atrazine 0.003 mg/L 0.009mg/L 0.009 mg/L _+10% < 0.002 mg/L < 0.002 mg/L 75.31% 76.99%
Asbestos 99% 155 MF/L 107to 108fibers/L tt < 1 MF/L < 1 MF/L >99.99% >99.99%
Live Cysts _ >99.95% 166,500 #/L 50,000/L min. < 1 #/L _ < 1 #/L _ >99.99 >99.99
Turbidity 0.5 NTU 10.7 NTU 11 _+1 NTU 0.49 NTU 0.31 NTU 95.2 97.09
Lindane 0.0002 mg/L 0.002 mg/L 0.002 _+10% < 0.0001mg/L 0.000 mg/L 96.50% 98.72%
Test Parameters: pH = 7.5 + 0.5 unless otherwise noted. Flow = 0.78 gpm (1.9 Lpm). Pressure
71.6°F (20°C to 22°C).
• It is essential that operational, maintenance, and filter
replacement requirements be carried out for the product to
perform as advertised.
• The filter monitor system measures the amount of water that
passes through the filter and alerts you to replace the filter.
When 90% of the filter's rated life is used, the yellow (Order)
light comes on. When 100% of the filter's rated life is used, the
red (Replace) light comes on, and it is recommended that you
replace the filter. Use replacement filter model 67003523;
order Part Number 4396395. 2007 suggested retail price of
$49.99 U.S.A./S65.95 Canada. Prices are subject to change
without notice.
• The product is for cold water use only.
• Do not use with water that is microbiologically unsafe or of
unknown quality without adequate disinfection before or after
the system. Systems certified for cyst reduction may be used
on disinfected waters that may contain filterable cysts.
• Refer to the "Water Filtration System" section for the
Manufacturer's name and telephone number.
= 60 psig (413.7 kPa). Temp. = 68°F to
• Refer to the "Warranty" section for the Manufacturer's limited
warranty.
Application Guidelines/Water Supply Parameters
Water Supply City or Well
Water Pressure 35 - 120 psi (241 - 827 kPa)
Water Temperature 33 ° - 100°F (1 ° - 38°C)
Service Flow Rate 0.78 gpm (2.9 L/min.) @ 60 psi.
*Class I particle size: >0.5 to <1 um
**Test requirement is at least 100,000 particles/mL of AC Fine Test Dust.
tThese contaminants are not necessarily in your water supply. Performance may vary based on local water conditions.
t+Fibers greater than 10 um in length
_Based on the use of Cryptosporidium parvum oocysts
® NSF is a registered trademark of NSF International.
18
