KitchenAid KBRS22ETSS - 21.9 Bottom-Freezer Refrigerator Parts List

Parts diagram
Hide thumbs

Advertisement

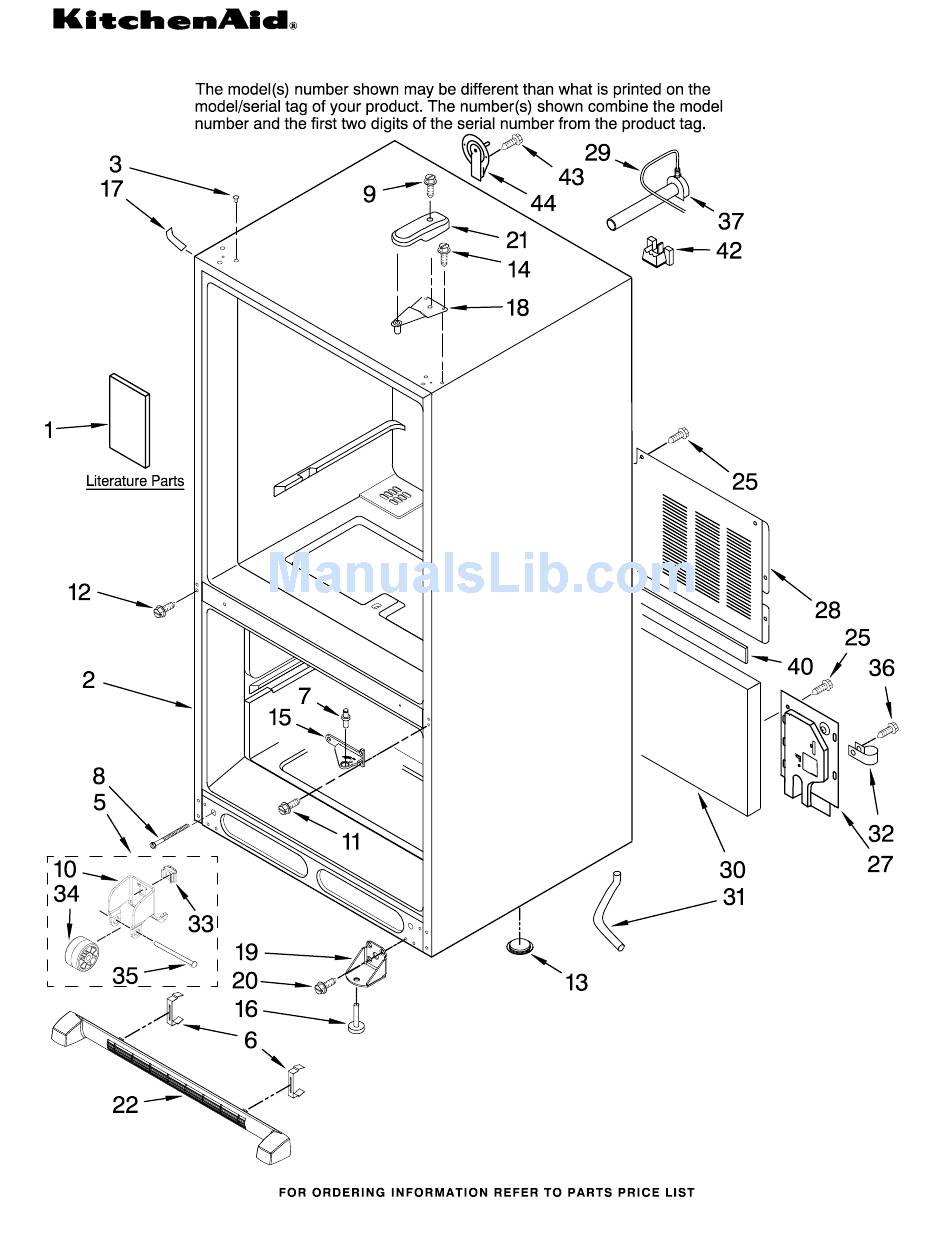

CABINET PARTS
REFRIGERATOR
For Models: KBRS22ETWH01, KBRS22ETBL01, KBRS22ETSS01, KBLS22ETSS01
(White)
(Black) (Stainless Steel−RH) (Stainless Steel−LH)
Part No. W10183469 Rev. B
3−09 Litho In U.S.A. (CJJ) (eeb)
1

Advertisement

loading

  Also See for KitchenAid KBRS22ETSS - 21.9 Bottom-Freezer Refrigerator

  Related Manuals for KitchenAid KBRS22ETSS - 21.9 Bottom-Freezer Refrigerator

  Summary of Contents for KitchenAid KBRS22ETSS - 21.9 Bottom-Freezer Refrigerator

  • Page 1 CABINET PARTS REFRIGERATOR For Models: KBRS22ETWH01, KBRS22ETBL01, KBRS22ETSS01, KBLS22ETSS01 (White) (Black) (Stainless Steel−RH) (Stainless Steel−LH) Part No. W10183469 Rev. B 3−09 Litho In U.S.A. (CJJ) (eeb)
  • Page 2: Cabinet Parts

    CABINET PARTS For Models: KBRS22ETWH01, KBRS22ETBL01, KBRS22ETSS01, KBLS22ETSS01 (White) (Black) (Stainless Steel−RH) (Stainless Steel−LH) Illus. Part DESCRIPTION Literature Parts W10137649 Owners Manual W10123819 Energy Tag W10168777 Tech Sheet Cabinet (Not a Servicable Part) Plug, Button (3) 67001130 White 67001131 Black 67006118 Roller Assembly 12627302 Clip, Grille 67006642 Pin, Center Hinge...
  • Page 3: Refrigerator Liner Parts

    REFRIGERATOR LINER PARTS For Models: KBRS22ETWH01, KBRS22ETBL01, KBRS22ETSS01, KBLS22ETSS01 (White) (Black) (Stainless Steel−RH) (Stainless Steel−LH) W10183469...
  • Page 4 REFRIGERATOR LINER PARTS For Models: KBRS22ETWH01, KBRS22ETBL01, KBRS22ETSS01, KBLS22ETSS01 (White) (Black) (Stainless Steel−RH) (Stainless Steel−LH) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) Y67003896 Bracket, Control and Lights 67005628 Overlay 67005444 Housing, Electronic Control 67005397 Board, Control C3680310 Switch, Light 67003897 Cover, Light 67003901 Housing, Light A0282812 Bulb, Light (2)
  • Page 5: Freezer Liner Parts

    FREEZER LINER PARTS For Models: KBRS22ETWH01, KBRS22ETBL01, KBRS22ETSS01, KBLS22ETSS01 (White) (Black) (Stainless Steel−RH) (Stainless Steel−LH) W10183469...
  • Page 6 FREEZER LINER PARTS For Models: KBRS22ETWH01, KBRS22ETBL01, KBRS22ETSS01, KBLS22ETSS01 (White) (Black) (Stainless Steel−RH) (Stainless Steel−LH) Illus. Part DESCRIPTION Liner (Not A Seviceable Part) 67001291 Gasket, Foam 12002497 Gear (2) (Includes RH & LH) 67003905 Cover, Light 67004261 Shaft Y12570701 Socket, Light 67006473 Screw (8) A0282812 Bulb, Light 67001035 Housing, Frz.
  • Page 7: Refrigerator Door Parts

    REFRIGERATOR DOOR PARTS For Models: KBRS22ETWH01, KBRS22ETBL01, KBRS22ETSS01, KBLS22ETSS01 (White) (Black) (Stainless Steel−RH) (Stainless Steel−LH) W10183469...
  • Page 8 REFRIGERATOR DOOR PARTS For Models: KBRS22ETWH01, KBRS22ETBL01, KBRS22ETSS01, KBLS22ETSS01 (White) (Black) (Stainless Steel−RH) (Stainless Steel−LH) Illus. Part DESCRIPTION Refrigerator Door (w/ Insulation) 67004777 White 67004775 Black W10170544 Stainless Steel−RH W10170545 Stainless Steel−LH Plug, Handle Hole 67001130 White 67001131 Black 67003819 Door, Compartment 67001279 Tray, Dairy 67005672 Bin, Shelf (3) (Medium)
  • Page 9: Freezer Door Parts

    FREEZER DOOR PARTS For Models: KBRS22ETWH01, KBRS22ETBL01, KBRS22ETSS01, KBLS22ETSS01 (White) (Black) (Stainless Steel−RH) (Stainless Steel−LH) W10183469...
  • Page 10 FREEZER DOOR PARTS For Models: KBRS22ETWH01, KBRS22ETBL01, KBRS22ETSS01, KBLS22ETSS01 (White) (Black) (Stainless Steel−RH) (Stainless Steel−LH) Illus. Part DESCRIPTION Freezer Door (w/ Insulation) W10168778 White W10168779 Black W10170543 Stainless Steel Handle, Door 2319727W White 2319727B Black 2319727S Stainless Steel 67006113 Mount, Handle Gasket, Door W10130894 White W10130587 Black...
  • Page 11: Shelf Parts

    SHELF PARTS For Models: KBRS22ETWH01, KBRS22ETBL01, KBRS22ETSS01, KBLS22ETSS01 (White) (Black) (Stainless Steel−RH) (Stainless Steel−LH) W10183469...
  • Page 12 SHELF PARTS For Models: KBRS22ETWH01, KBRS22ETBL01, KBRS22ETSS01, KBLS22ETSS01 (White) (Black) (Stainless Steel−RH) (Stainless Steel−LH) Illus. Part DESCRIPTION 67001317 Ladder, Side 67006400 Screw (6) 67001073 Ladder, Center 67006360 Screw (2) 67005730 Shelf, Fixed (2) 67005731 Shelf, Glide (2) 67006878 Glass, Crisper 67001056 Frame, Crisper 67001057 Support, Center Crisper Drawer...
  • Page 13: Unit Parts

    UNIT PARTS For Models: KBRS22ETWH01, KBRS22ETBL01, KBRS22ETSS01, KBLS22ETSS01 (White) (Black) (Stainless Steel−RH) (Stainless Steel−LH) W10183469...
  • Page 14 UNIT PARTS For Models: KBRS22ETWH01, KBRS22ETBL01, KBRS22ETSS01, KBLS22ETSS01 (White) (Black) (Stainless Steel−RH) (Stainless Steel−LH) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 67006433 Screw Following Parts Not Illustrated 67001084 Right Side 2 W10162928 Blade, Fan and Optional Parts Not Included 67001083 Left Side 67005744 Basepan 67004432 Motor, Fan...
  • Page 15: Icemaker Parts

    ICEMAKER PARTS For Models: KBRS22ETWH01, KBRS22ETBL01, KBRS22ETSS01, KBLS22ETSS01 (White) (Black) (Stainless Steel−RH) (Stainless Steel−LH) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Mold & Heater Thermostat 67006662 Screw Assembly (Not Available 67004710 Cover (Not Available Order D7824706Q) Module Assembly Order D7824706Q) 681249 Screw (2) (Not Available...
  • Page 16 OPTIONAL PARTS (NOT INCLUDED) For Models: KBRS22ETWH01, KBRS22ETBL01, KBRS22ETSS01, KBLS22ETSS01 (White) (Black) (Stainless Steel−RH) (Stainless Steel−LH) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION PAINT, TOUCH−UP (1/2oz.) Miscellaneous TORX SCREW WRENCH 72017 White 1117510 Torx Key 212643 Sealer, Gum 72032 Black (4 Feet) 479502 Tape, Vinyl...
