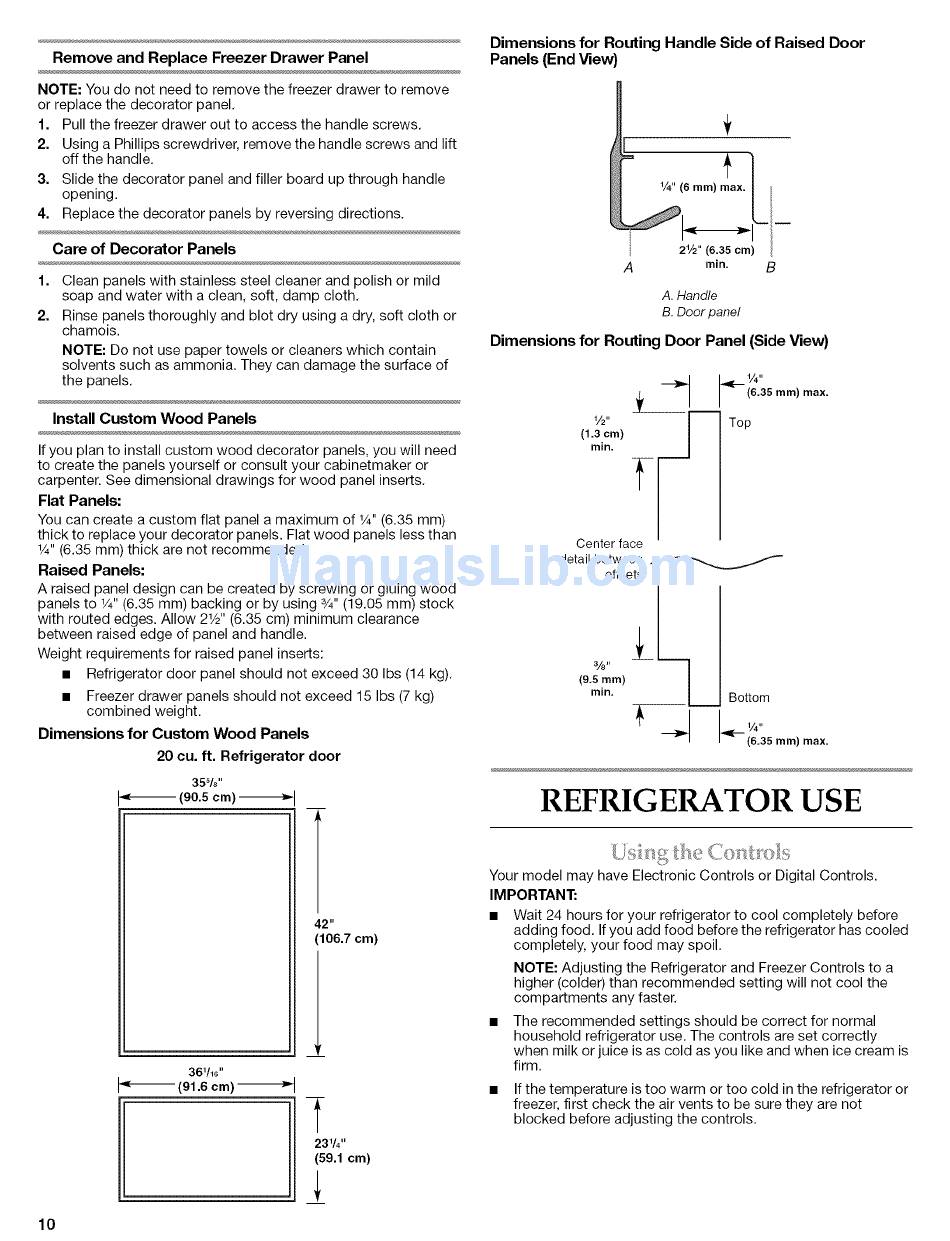

Remove and Replace
Freezer Drawer Panel
NOTE: You do not need to remove the freezer drawer to remove
or replace the decorator panel,
1. Pull the freezer drawer out to access the handle screws.
2. Using a Phillips screwdriver, remove the handle screws and lift
off the handle.
3. Slide the decorator panel and filler board up through handle
opening.
4. Replace the decorator panels by reversing directions.
Care of Decorator
Panels
1. Clean panels with stainless steel cleaner and polish or mild
soap and water with a clean, soft, damp cloth,
2. Rinse panels thoroughly and blot dry using a dry, soft cloth or
chamois.
NOTE: Do not use paper towels or cleaners which contain
solvents such as ammonia. They can damage the surface of
the panels,
Install Custom Wood Panels
If you plan to install custom wood decorator panels, you will need
to create the panels yourself or consult your cabinetmaker or
carpenter. See dimensional drawings for wood panel inserts,
Flat Panels:
You can create a custom flat panel a maximum of %" (6.35 mm)
thick to replace your decorator panels. Flat wood panels less than
1/4"(6.35 mm) thick are not recommended.
Raised Panels:
A raised panel design can be created by screwing or gluing wood
panels to 1/4"(6.35 mm) backing or by using 3/4"(19.05 mm) stock
with routed edges. Allow 21/2 '' (6.35 cm) minimum clearance
between raised edge of panel and handle.
Weight requirements for raised panel inserts:
Refrigerator door panel should not exceed 30 Ibs (14 kg).
Freezer drawer panels should not exceed 15 Ibs (7 kg)
combined weight.
Dimensions
for Custom Wood Panels
20 cu. ft. Refrigerator door
35%"
(90.5 cm) -_
36V10"
(91.6 cm)
42"
(106.7 cm)
23V4"
(59.1
cm)
!
10
Dimensions for Routing Handle Side of Raised Door
Panels (End View)
÷
=
|
1/4" (6 ram) max. /
-
A
rain.
B
A. Handle
B. Door panel
Dimensions
for Routing Door Panel (Side View)
1/4"
(6,35
mm)
max.
1/2"
I
Top
(1.3cm)
rain.
Center face
detail between ,_-"__
offsets
3/8"
I
(9.5 turn)
rain.
Bottom
--
(6,35
mm)
max.
REFRIGERATOR
USE
Your model may have Electronic Controls or Digital Controls.
IMPORTANT:
Wait 24 hours for your refrigerator to cool completely before
adding food. If you add food before the refrigerator has cooled
completely, your food may spoil.
NOTE: Adjusting the Refrigerator and Freezer Controls to a
higher (colder) than recommended
setting will not cool the
compartments
any faster.
The recommended
settings should be correct for normal
household refrigerator use. The controls are set correctly
when milk or juice is as cold as you like and when ice cream is
firm.
If the temperature is too warm or too cold in the refrigerator or
freezer, first check the air vents to be sure they are not
blocked before adjusting the controls.
