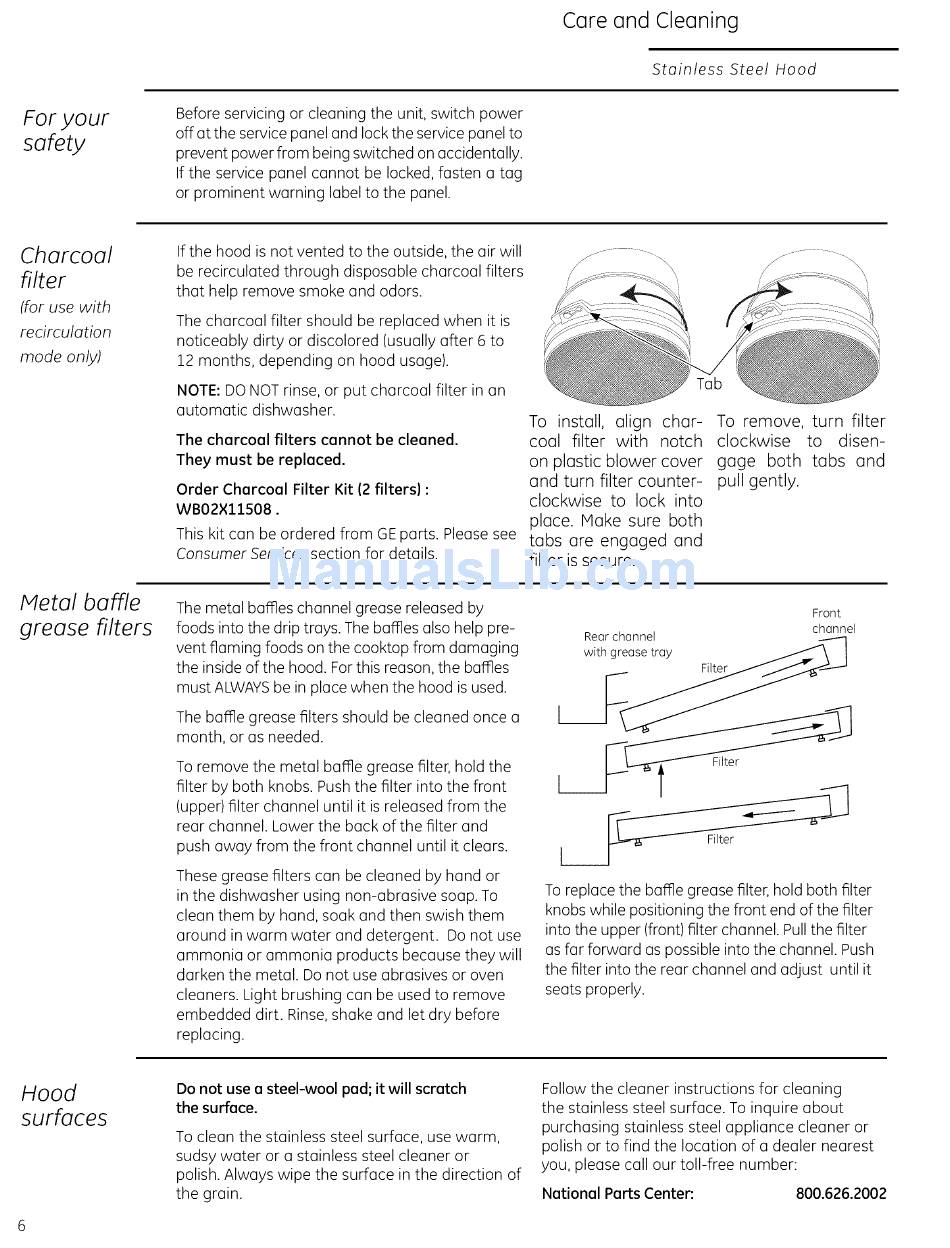

Care and Cleaning
Stainless Steel Hood
For your
safety
Before servicing or cleaning the unit, switch power
off at the service panel and lock the service panel to
prevent power from being switched on accidentally.
If the service panel cannot be locked, fasten a tag
or prominent warning label to the panel.
Charcoal
filter
(for use with
recirculation
mode only)
Metal baffle
grease filters
If the hood is not vented to the outside, the air will
be recirculated through disposable charcoal filters
that help remove smoke and odors.
The charcoal filter should be replaced when it is
noticeably dirty or discolored (usually after 6 to
12 months, depending on hood usage).
NOTE: DO NOT rinse, or put charcoal filter in an
automatic dishwasher.
The charcoal filters cannot be cleaned.
They must be replaced.
Order Charcoal Filter Kit (2 filters} :
WBO2X11508.
To install, align char-
coal filter with notch
on plastic blower cover
and turn filter counter-
clockwise to lock into
place. Make sure both
This kit can be ordered from GEparts. Please see tabs are engaged and
Consumer Services section for details, filter is secure.
/
To remove, turn filter
clockwise to disen-
gage both tabs and
pull gently.
The metal baffles channel grease released by
foods into the drip trays. The baffles also help pre-
vent flaming foods on the cooktop from damaging
the inside of the hood. For this reason, the baffles
must ALWAYSbe in place when the hood is used.
The baffle grease filters should be cleaned once a
month, or as needed.
To remove the metal baffle grease filter, hold the
filter by both knobs. Push the filter into the front
(upper) filter channel until it is released from the
rear channel. Lower the back of the filter and
push away from the front channel until it clears.
These grease filters can be cleaned by hand or
in the dishwasher using non-abrasive soap. To
clean them by hand, soak and then swish them
around in warm water and detergent. Do not use
ammonia or ammonia products because they will
darken the metal. Do not use abrasives or oven
cleaners. Light brushing can be used to remove
embedded dirt. Rinse,shake and let dry before
replacing.
Front
channel
Rear channel
......--q
with grease tray _
I
To replace the baffle grease filter, hold both filter
knobs while positioning the front end of the filter
into the upper (front) filter channel. Pull the filter
as far forward as possible into the channel. Push
the filter into the rear channel and adjust until it
seats properly.
Hood
surfaces
Do not use a steel-wool pad; it will scratch
the surface.
To clean the stainless steel surface, use warm,
sudsy water or a stainless steel cleaner or
polish. Always wipe the surface in the direction of
the grain.
Follow the cleaner instructions for cleaning
the stainless steel surface. To inquire about
purchasing stainless steel appliance cleaner or
polish or to find the location of a dealer nearest
you, please call our toll-free number:
National Parts Center:
800.626.2002
