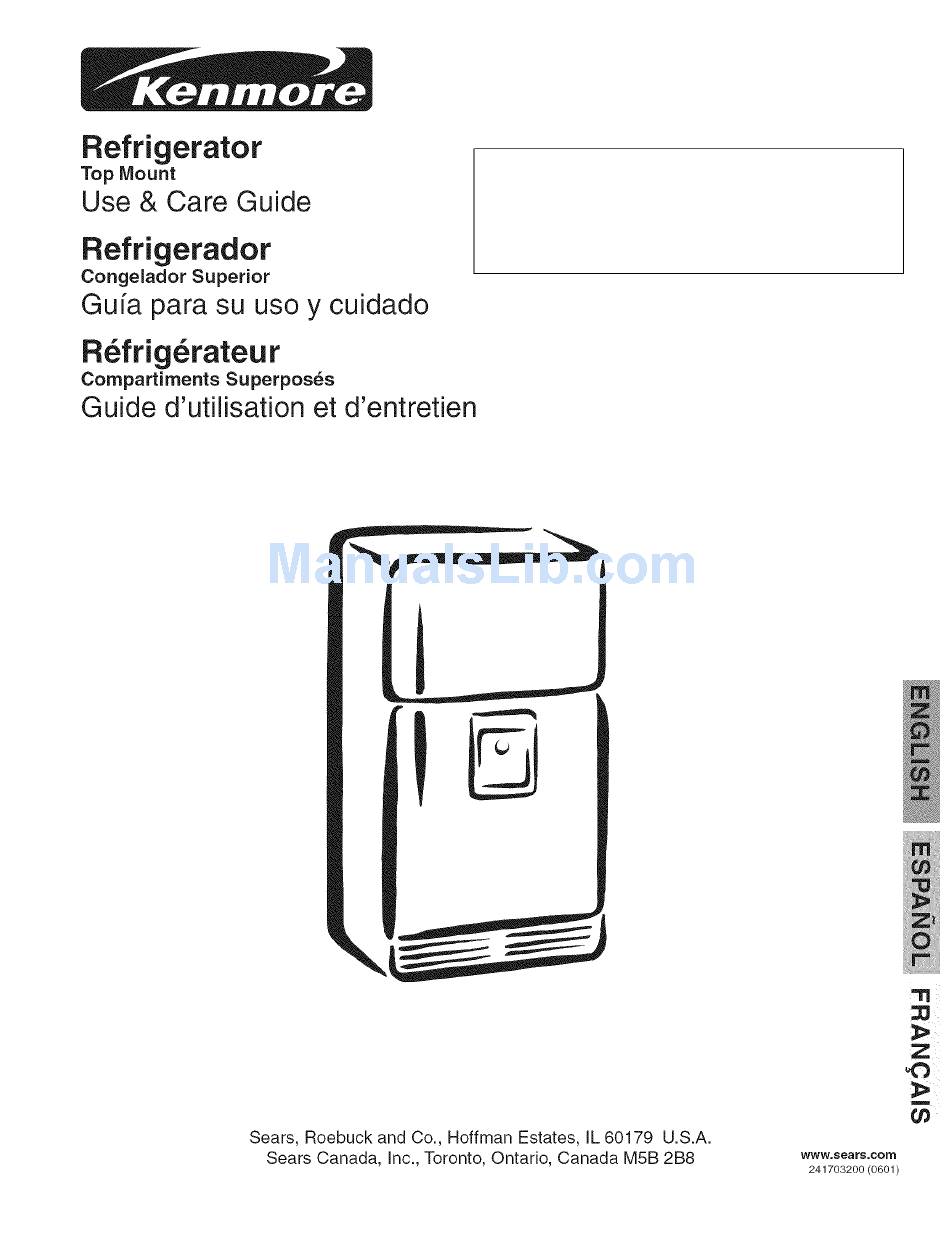

Refrigerator Top Mount Use & Care Guide Refrigerador Congelador Superior Gufa para su uso y cuidado R_frig_rateur Compartiments Superposes Guide d'utilisation et d'entretien Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A. www, sea rs.com Sears Canada, Inc., Toronto, Ontario, Canada M5B 2B8 241703200...
important Safety Instructions Congratulations Congratulations on your purchase of a new refrigerator! Please Read All instructions Before We here at Sears are very proud of our product and we Using This Refrigerator. are completely committed to providing you with the best FOR YOUR SAFETY service possible.
KENIVIORE APPLIANCE WARRANTY OneYear Limited Warranty These Guidelines Must Be FollowedTo EnsureThat When installed, operated and maintained according to all Safety Mechanisms in This Refrigerator Will instructions supplied with the product, ifthis appliance operate Properiy. fails due to a defect in material or workmanship within one year from the date of purchase, call 1-800-4-MY-HOME®...
Maintenance Agreements Congratulations on making a smart purchase. Your Your purchase has added value because you can new Kenmore ®product is designed and manufactured depend on Sears HomeCentral ®for service, With over for years of dependable operation, But like all...
Page 5
This Use & Care Manual provides specific operating LEVELING instructions for your model. Use the refrigerator only as All four corners of your refrigerator must rest firmly on a instructed in this Use & Care Manual. Before starting solid floor. Your refrigerator is equipped with adjustable front refrigerator, follow these important first steps.
hlstalIBtiorl - Connecting ice Maker To Water Supply To avoid electric shock, which can cause death or severe personal injury, disconnect refrigerator from electrical power before connecting a water supply line to the refrigerator. To Avoid Property Damage: Copper tubing is recommended for the water supply line.Water supply tubing...
Door Removal instructions Tools Necessary: 3/8" Fixed H_nge Screw w[encP _nc] -lat Head Sockel Screw Driver Wrench Sel DOOR REMOVAL iNSTRUCTIONS: If your refrigerator will not fit through an entrance area. you can reduce its size by removing the doors. Check first by measuring the entrance. _Top Hinge IMPORTANT: Before you begin, turn the refrigerator temperature control to "0"...
Features At A Glance Freezer Light ice Maker_ ice Bucket_ Fixed Door Bin Freezer Shelf--_ Freezer i¸¸ Control _------Door Rack Refrigerator Control Water Filter _- Dairy Door Deli Drawer Cover Tall Bottle Retainer Dell Drawer _ Half Shelf Snugger Wine Rack Door Bin Full Special item...
Page 9
COOL DOWN PERIOD To ensure safe food storage, allow the refrigerator to operate with the doors closed for at least 8 to t 2 hours before loading it with food. REFRIGERATOR & FREEZER CONTROLS NOTE: When first setting the controls or when changing a setting, wait 24 hours for the temperature to stabilize before making additiona! changes...
Page 10
Toavo!d p ereo.a injury orproperty damage, handle tempered glass shelves carefui!y. Shelves may break suddenly if nicked, scratched, or exposed to sudden temperature change. SHELF ADJUSTMENT Refrigerator shelves are easily adjusted to suit individualneeds. Before adjusting the shelves, remove all food. To adjust sliding shelves:...
Page 11
LoOki g mside (continued) DOOR STORAGE TALL BOTTLE RETAINER (SOME MODELS) Door bins, shelves, and racks are provided for convenient The Tall Bottle Retainer keeps tall containers in the bin from storage of jars, bottles, and cans. Frequently used items can falling forward when opening or closing the refrigerator door.
Page 12
CRISPERS (SOME MODELS) DELl DRAWER (SOME MODELS) The crispers, located under the bottom refrigerator shelf, Some models are equipped with a Deli Drawer for storage are designed for storing fruits, vegetables, and other fresh of luncheon meats, spreads, cheeses and other deli items. produce.
Page 13
WATER DISPENSER Your refrigerator includes an automatic water dispenser on Dispenser Lock the front of the refrigerator door. The dispenser is designed The water dispenser includes a switch that allows you to to accommodate containers up to 71/2inches high. disable the water dispenser.You can use this lock to prevent accidental spills, such as those caused by children pressing the dispensing button without a glass.
Water Dispenser & ice Service (continued) If your refrigerator has an automatic ice maker, it will provide a sufficient supply of ice for normal use. During the initial startup of your refrigerator. however no ice will be produced during the first 24 hours of operation. Automatic ice makers are also optional accessories that may be installed in most models at any time.
Page 15
Kenmore replacement cartridge 46 9910. Screw cup, with filter, back onto housing. Filter cartridge will self-align as cup is tightened. Be sure cup is completely tightened with Kenmore logo facing outward. Do NotTighten Past Stop.
FOODSTORAGE IDEAS Fresh Food Storage • The fresh food compartment should be kept between 34 ° F and 40 ° F with an optimum temperature of 37 ° E • Avoid overcrowding the refrigerator shelves. This reduces the circulation of air around the food and results in uneven cooling.
Page 17
UNDERSTANDING THE SOUNDS YOU MAY A. Evaporator HEAR The flow of refrigerant through the evaporator may create a boiling or gurgling sound. Your new high-efficiency refrigerator may make unfamiliar sounds. These are all normal sounds and soon will B. Evaporator become familiar to you.
Care & Cleaning Always unplug the electrical power cord from the wall outlet before cleaning. Keep your refrigerator and freezer clean to prevent odor build-up. Wipe up any spills immediately and clean both sections at least twice a year. Never use any type of scouring pads, brushes, abrasive cleaners or strong alkaline solutions on any surface.
Page 19
wear gloves tO aV0id cuts when Defrost Watel REPLACING THE REFRIGERATOR FREEZER LIGHT BULB (SOME MODELS) Unplug refrigerator. Wear gloves as protection against possible broken glass. Unsnap light shield as shown. Unscrew and replace old bulb with an appliance bulb of the same wattage.
ATTENTI To Properly Install Your Refrigerator See "'Installation" Section On Pages 5-6 Befo ¸You Before calling for service, review this list. It may save you time and Common expense. This list includes common occurrences that are not the result of Occurrences defective workmanship or materials in this appliance.
