Record All Information
for future reference:
Purchase Date:
Model #:
Serial #:
Questions? 1-800-888-2468
Learn more about your pressure
washer and register on line at
www
.VR2300.
Please make certain that the person who is to use this equipment
carefully reads and understands these instructions before operating.
com
IMPORTANT
Operation manual
for model VR2300

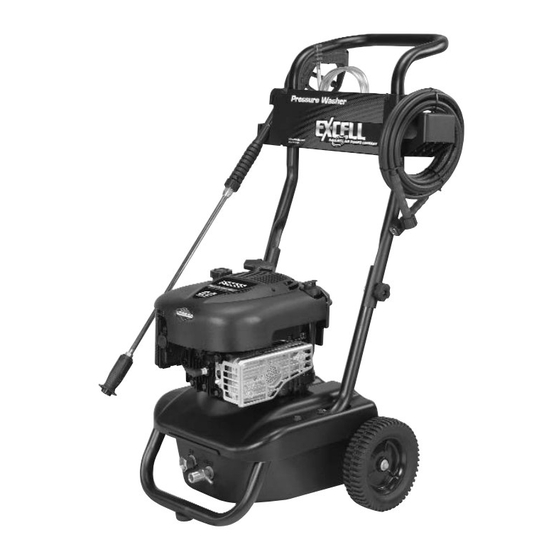

Pressure Washer
Part No. D27935 Rev. 1 4/30/03
Advertisement
Table of Contents
Related Manuals for DeVilbiss Air Power Company Ex-Cell VR2300
Summary of Contents for DeVilbiss Air Power Company Ex-Cell VR2300
-
Page 1: Pressure Washer
.VR2300. Please make certain that the person who is to use this equipment carefully reads and understands these instructions before operating. Operation manual Pressure Washer IMPORTANT for model VR2300 Part No. D27935 Rev. 1 4/30/03... -
Page 2: Table Of Contents
SAFETY GUIDELINE/DEFINITIONS ...2 CONSUMER SAFTEY INFORMATION...2 IMPORTANT SAFETY INSTRUCTIONS ...3-6 CONSUMER GENERAL AND SERVICE INFORMATION ...6 CARTON CONTENTS...7 ASSEMBLY INSTRUCTIONS ...8-9 SAFETY GUIDELINES / DEFINITIONS This manual contains information that is important for you to know and understand. This information relates to protecting YOUR SAFETY and PREVENTING EQUIP- MENT PROBLEMS. -
Page 3: Important Safety Instructions
• Heat will expand fuel in the tank which could result in spillage and possible fire explosion. • Operating the pressure washer in an ex- plosive environment could result in a fire. • Materials placed against or near the pres-... - Page 4 D27935 HAZARD HOW TO PREVENT IT • If pressure washer is equipped with a fuel shut-off valve, turn the valve to the off position before transporting to avoid fuel leaks. If pressure washer is not equipped with a fuel shut-off valve, drain the fuel from tank before transporting.
-
Page 5: Risk Of Unsafe Operation
HOW TO PREVENT IT • During operation, touch only the control surfaces of the pressure washer. Keep children away from the pressure washer at all times. They may not be able to recognize the hazards of this product. 5- ENG... -
Page 6: Consumer General And Service Information
Please read and follow these instructions for proper use and maintenance. • Please take the time now to register your pressure washer online at www.excellpressurewasher.com. • All sales of pressure washers are final. Do not return this product to the retailer. -
Page 7: Carton Contents
CARTON CONTENTS Accessories Panel English/ Spanish Engine Operation Manual Manual Bagged Accessories Panel Handle Engine Frame and Wheel Assembly Knobs Saddle Bolts Chemical Hose Nozzle Cleaning High Pressure Hose Bagged Parts Multi-Adjustable Spray Wand Spray Gun Engine Oil 7- ENG D27935... -
Page 8: Assembly Instructions
ASSEMBLY INSTRUCTIONS Place handle assembly onto frame and connect handle to frame. NOTE: Knobs are assembled to inside of frame. Connect wand to gun. Tighten securely. Attach high pressure hose to gun. Tighten securely. To Assemble Accessories Panel Remove top screws on handle assembly. Loosen bottom screws on handle assembly. - Page 9 Place grooves in accessories panel assembly onto screws and slide panel assembly into place. Place screws (removed earlier) into the top holes and secure accessories panel assembly to handles. Do not overtighten. Add engine oil (supplied) to engine. Refer to Engine Owners Manual supplied by engine manufacturer for correct procedure.
-
Page 10: Operating Instructions
Spray Wand High Pressure Pump BASIC ELEMENTS OF A PRESSURE WASHER High Pressure Pump (located inside the shroud): Increases the pressure of the water supply. Engine: Drives the high pressure pump. High Pressure Hose: Carries the pressurized water from the pump to the gun and wand. -
Page 11: Pressure Washer Operating Features
Water Supply: All pressure washers must have a source of water. The minimum requirements for a water supply are 20 PSI and 5 gallons per minute. PRESSURE WASHER OPERATING FEATURES PRESSURE ADJUSTMENTS The pressure setting is preset at the factory to achieve optimum pressure and cleaning. -
Page 12: How To Use Wand
HOW TO USE WAND: Your pressure washer is equipped with a multi-adjustable spray wand with both high and low pressure settings. The high pressure setting is for cleaning and rinsing, the low pressure setting is for applying chemicals or cleaning solutions to surfaces. - Page 13 HOW TO APPLY CHEMICALS AND CLEANING SOLVENTS Applying chemicals or cleaning solvents is a low pressure operation. NOTE: Use only soaps and chemicals designed for pressure washer use. Do not use bleach. To apply chemicals: Press chemical hose onto barbed fitting located near high pressure hose connection of pump as shown.
-
Page 14: Shutting Down
STARTING Prior to starting, refer to your engine manual for proper starting procedures for your engine type. In a well ventilated outdoor area add fresh high quality unleaded gasoline with a pump octane rating of 86 or higher. Do not overfill. Wipe up spilled fuel before starting the engine. -
Page 15: Nozzle Cleaning
DO NOT smoke or work near open flames while performing maintenance. To ensure efficient operation and longer life of your pressure washer, a routine maintenance schedule should be prepared and followed. If the pressure washer is used in unusual conditions, such as high-temperatures or dusty conditions, more frequent maintenance checks will be required. -
Page 16: How To Clean The Water Inlet Filter
Remove filter by grasping end and removing it from water inlet of pump as shown. Clean filter by flushing it with water on both sides. Re-insert filter into water inlet of pump. NOTE: Do not operate pressure washer without filter properly installed. D27935 16- ENG... -
Page 17: Storage
PUMP It is recommended that you follow these steps to protect the internal seals of the pressure washer when STORING THE UNIT FOR MORE THAN 30 DAYS AND/OR WHEN FREEZING TEMPERATURES ARE EXPECTED. The manufacturer recommends using EXA80 Pump Saver/Winterizer. EXA80 Pump Saver/Winterizer may be purchased in stores where Excell pressure washers are sold. -
Page 18: Trouble Shooting Guide
TROUBLE SHOOTING GUIDE PROBLEM No fuel. Engine will not Pressure builds up after two pulls start (see Engine on the recoil starter or after initial Manual for use. further engine troubleshooting) Choke lever in the “No Choke” position. Spark plug wire not attached. Choke lever in the “Choke”... - Page 19 PROBLEM Wand not in low pressure. Will not draw chemicals Chemical filter clogged. Chemical screen not in chemical Chemical too thick. Pressure hose is too long Chemical build up in chemical injector. Worn seal or packing No or low pressure (after Worn or obstructed valves.
-
Page 20: Warranty
DeVilbiss Air Power Company warrants to the original purchaser who uses the product in a consumer application (personal, residential or household usage) that all products covered under this warranty are free from defects in material and workmanship for one year from the date of purchase. All products covered by this limited warranty which are used in commercial applications (i.e., income producing) are warranted to be free of defects in material and workmanship for 90 days from the date of original purchase. - Page 21 NOTES 21- ENG D27935...
-
Page 22: Quick Facts
Always turn on the water before starting the engine. SOAP CHEMICALS Use only soaps and chemicals designed for pressure washer use. Keep nozzle unclogged. Refer to manual for cleaning procedures. Chemical/soap cannot be applied in high pressure setting. Only in low NOZZLE setting.
