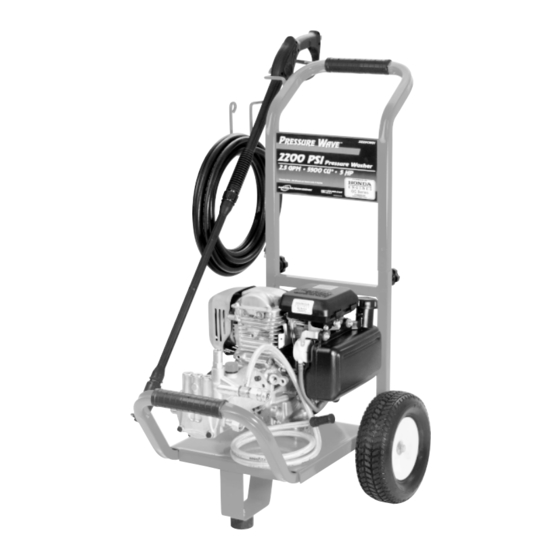

DeVilbiss Air Power Company 2225CWH Owner's Manual

DeVilbiss Air Power Company 2225CWH Owner's Manual

Devillbiss air power company pressure washer owner's manual

Advertisement

This product is not equipped with a spark arresting muffler. If the product will be used around
flammable materials, or on land covered with materials such as agricultural crops, forest, brush, grass, or
other similar items, then an approved spark arrester must be installed and is legally required in the state of
California. It is a violation of California statutes section 130050 and/or sections 4442 and 4443 of the Califor-
nia Public Resources Code, unless the engine is equipped with a spark arrestor, as defined in section 4442,
and maintained in effective working order. Spark arresters are also required on some U. S. Forest service
land and may also be legally required under other statutes and ordinances.
This product may contain chemicals known to the state of California to cause cancer, birth defects, or other
reproductive harm. This warning is given in compliance with California Proposition 65, as detectable amounts
of chemicals subject to proposition 65 may be contained in this product.
ENGINE OIL MUST BE ADDED TO THE ENGINE BEFORE USE.
MGP-2225CWH
1/7/00

PRESSURE WASHER

OWNERS MANUAL
for
Model 2225CWH
Read Owner's Manual. Do not operate equipment until you
have read Owners Manual for Safety, Assembly, Operation,
Maintenance and Storage Instructions.
CAUTION

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2225CWH and is the answer not in the manual?

Questions and answers

Summary of Contents for DeVilbiss Air Power Company 2225CWH

  • Page 1: Pressure Washer

    ENGINE OIL MUST BE ADDED TO THE ENGINE BEFORE USE. MGP-2225CWH 1/7/00 PRESSURE WASHER OWNERS MANUAL Model 2225CWH Read Owner's Manual. Do not operate equipment until you have read Owners Manual for Safety, Assembly, Operation, Maintenance and Storage Instructions. CAUTION...
  • Page 2: Table Of Contents

    NOTE: Photos and illustrations in this manual are for reference only and may not represent a specific model. PRESSURE WASHER RETURN POLICY Within 15 days of your purchase, Sam's will gladly exchange your pressure washer or refund your money. Sales receipt is required. After 15 days manufacturer's warranty applies.
  • Page 3: Warranty

    ONE YEAR FROM DATE OF PURCHASE All merchandise manufactured by DeVilbiss Air Power Company Manufacturing is warranted to be free of defects in workmanship and material which occur during the first year from the date of purchase by the original purchaser (initial user).
  • Page 4: Important Safety Instructions

    • Keep maximum fuel level ½” below top of • Operate and fuel equipment in well • Never operate pressure washer in an area • Always keep pressure washer a minimum of • Store fuel in an OSHA approved container, get into the hands of children or •...
  • Page 5 Operating unit with water supply shutoff without flow of water will result in equipment damage. Operating the pressure washer with water supply shutoff will void your warranty. You should never run this pressure washer for more than 2 minutes without pulling the trigger to allow cool water to enter the pump and the heated (recirculated) water to exit.
  • Page 6: Contents Of Carton

    CONTENTS OF CARTON Handle Engine Manual Bagged Handle Spray Gun 30 Weight Engine Frame and Engine Oil Wheel Assembly Spanish English Owner's Owner's Manual Manual Nozzle Cleaning Kit Bagged Parts Multi-Reg Wand High Pressure Hose 6 — ENG Instructional Video Handle Knobs Chemical Hose...
  • Page 7: Unpacking

    NOTE: Be careful not to cut into chemical hose and high pressure hose. 7. Insert handle ends into pressure washer frame as shown. 8. Install two knobs as shown in and tighten se- curely.
  • Page 8: Basic Elements Of A Pressure Washer

    PRESSURE WASHER BASICS NOTE: Become familiar with the controls and features described on these pages before operating your unit. Gun/ Hose Holder 3/8" X 25 ft. High Pressure Hose Multi-Reg Wand Nozzle Thermal Relief Valve BASIC ELEMENTS OF A PRESSURE...
  • Page 9: Operation

    The minimum requirements for a water supply are 20 PSI and 5 gallons per minute. NOTE: Any supply pressure or delivery rate less than this will not allow the pressure washer to operate at its full potential. OPERATING FEATURES OF YOUR...
  • Page 10: How To Use Wand

    ANY PETS OR ANIMALS. SERIOUS INJURY CAN OCCUR. HOW TO USE WAND Your pressure washer is equipped with a multi-reg wand with both high and low pressure settings. The high pressure setting is for cleaning and rinsing, the low pressure setting is for applying chemicals or cleaning solutions to surfaces.
  • Page 11: Before Starting

    BEFORE STARTING 1. Move pressure washer to level ground. 2. Check engine oil level. Refer to engine manufacturer's manual for procedure. NOTE The engine on this pressure washer is equipped with a low oil sensor. The amount of oil in the engine must be correct or the engine will not start.
  • Page 12: Typical Hook-Up

    TANK TO 1/2" BELOW BOTTOM OF FILLER NECK TO PROVIDE SPACE FOR FUEL EX- PANSION. WIPE ANY FUEL SPILLAGE FROM ENGINE AND EQUIPMENT BEFORE START- ING ENGINE. TYPICAL HOOK-UP Your pressure washer hookup should resemble this diagram. Pressure Washer Chemical Chemical Hose...
  • Page 13: Shutting Down Your Pressure Washer

    DO NOT let hoses come in contact with very hot engine muffler during or immedi- ately after use of your pressure washer. Damage to hoses from contact with hot engine surfaces will NOT be covered by warranty.
  • Page 14: Maintenance

    If necessary, the schedule should be modified to suit the conditions under which your pressure washer is used. The modifications will depend upon the hours of operation and the working environment. If the pressure washer is in an extremely dirty and/or hostile environment, it will require a greater frequency of all maintenance checks.
  • Page 15: Storage

    3. Install filter into water inlet of pump. PREPARATION FOR STORAGE It is recommended that you follow these steps to protect the internal seals of the pressure washer when storing the unit for an extended period and WHEN FREEZING TEMPERATURES ARE EXPECTED.
  • Page 16: Troubleshooting

    PROBLEM CAUSE Engine will not start 1. No fuel. (see Engine Manual for 2. Low oil (if oil-alert equipped). further engine trouble- 3. Pressure buildup after initial shooting) use. 4. Not primed or choked. 5. Spark plug wire not attached. 6.
  • Page 17: Repair Parts

    Honda Engine Model Number GC-160 DAPC- Horizontal Pump 16254 High Pressure Hose 16496 Trigger Gun H133 Wand NCT001 Nozzle Cleaning Kit H140 Chemical Hose X003 Tire F464 Pal Nut 17367 Hand Grips 16371 Foot Contact your local engine dealer for parts and service. Contact an Authorized Warranty Service Center near you, call 1-800-888-2468, Ext.
  • Page 18 NOTES 18 — ENG...
  • Page 19 NOTES 19 — ENG...
  • Page 20: Quick Facts

    Add stabilizer to fuel tank and run engine for 5 minutes before storage. Always turn on the water before starting the engine. SOAP Use only soaps and chemicals designed for pressure washer use. CHEMICALS Keep nozzle unclogged. Refer to manual for cleaning procedures.
