Record All Information
for future reference:
Purchase Date:
Model #:
Serial #:
Questions? 1-800-475-5660
Need parts or service? Call or visit
us online www.msservice.net
Please make certain that the person who is to use this equipment
carefully reads and understands these instructions before operating.
Operation manual

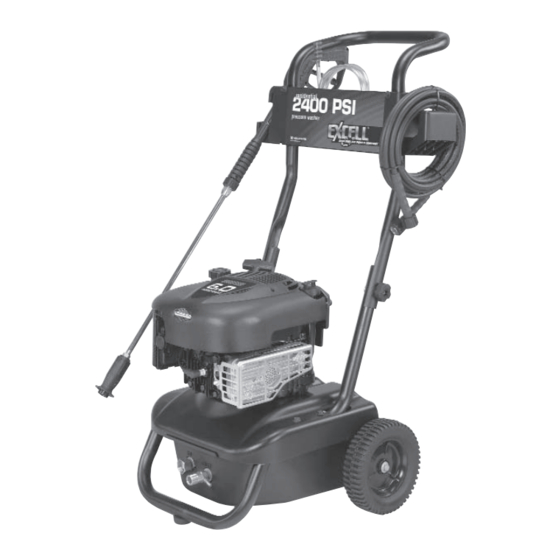

Pressure Washer
IMPORTANT
for model TVR2400
Part No. D28713 Rev. 0 4/30/03
Advertisement
Table of Contents
Related Manuals for DeVilbiss Air Power Company EX-CELL TVR2400
Summary of Contents for DeVilbiss Air Power Company EX-CELL TVR2400
- Page 1 Operation manual for model TVR2400 Record All Information for future reference: Purchase Date: Model #: Serial #: Questions? 1-800-475-5660 Need parts or service? Call or visit us online www.msservice.net Pressure Washer IMPORTANT Please make certain that the person who is to use this equipment carefully reads and understands these instructions before operating.
-
Page 2: Table Of Contents
TABLE OF CONTENTS OPERATING INSTRUCTIONS..10-14 SAFETY GUIDELINE/DEFINITIONS ..2 MAINTENANCE........15-16 CONSUMER SAFTEY INFORMATION...2 STORAGE..........17 IMPORTANT SAFETY INSTRUCTIONS ........3-6 TROUBLE SHOOTING GUIDE..18-19 CONSUMER GENERAL AND SERVICE WARRANTY..........20 INFORMATION .........6 QUICK FACTS........22 CARTON CONTENTS......7 ESPAÑOL..........23-44 ASSEMBLY INSTRUCTIONS ....8-9 SAFETY GUIDELINES / DEFINITIONS This manual contains information that is important for you to know and understand. This information relates to protecting YOUR SAFETY and PREVENTING EQUIP- MENT PROBLEMS. -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Read Operation Manual. Do not operate equipment until you have read Operation Manual for Safety, Assembly, Operation, and Maintenance Instructions. READ AND SAVE THESE INSTRUCTIONS HAZARD RISK OF EXPLOSION OR FIRE HOW TO PREVENT IT WHAT CAN HAPPEN •... - Page 4 HAZARD RISK OF INJURY OR PROPERTY DAMAGE WHEN TRANSPORTING OR STORING WHAT CAN HAPPEN HOW TO PREVENT IT • Fuel or oil can leak or spill and could • If pressure washer is equipped with a fuel result in fire or breathing hazard, serious shut-off valve, turn the valve to the off injury or death can result.
- Page 5 HAZARD RISK OF UNSAFE OPERATION WHAT CAN HAPPEN HOW TO PREVENT IT • Unsafe operation of your pressure washer • Do not use chlorine bleach or any other could lead to serious injury or death to corrosive compound. you or others. •...
-
Page 6: Consumer General And Service Information
HAZARD RISK OF INJURY FROM SPRAY WHAT CAN HAPPEN HOW TO PREVENT IT • Always wear ANSI approved Z87 safety • High velocity fluid spray can cause glasses.Wear protective clothing to protect objects to break, propelling particles at against accidental spraying. high speed. -
Page 7: Carton Contents
CARTON CONTENTS Accessories Panel English/ Spanish Engine Operation Manual Manual Bagged Accessories Panel Engine Frame and Handle Wheel Assembly Knobs Saddle Bolts Chemical Hose High Pressure Nozzle Cleaning Hose Bagged Parts Multi-Adjustable Spray Wand Spray Gun Engine Oil 7- ENG D28713... -
Page 8: Assembly Instructions
ASSEMBLY INSTRUCTIONS Place handle assembly onto frame and connect handle to frame. NOTE: Knobs are assembled to inside of frame. Connect wand to gun. Tighten securely. Attach high pressure hose to gun. Tighten securely. To Assemble Accessories Panel Remove top screws on handle assembly. Loosen bottom screws on handle assembly. - Page 9 Place grooves in accessories panel assembly onto screws and slide panel assembly into place. Screws Place screws (removed earlier) into the top holes and secure accessories panel assembly to handles. Do not overtighten. Add engine oil (supplied) to engine. Refer to Engine Owners Manual supplied by engine manufacturer for correct procedure.
-
Page 10: Operating Instructions
OPERATING INSTRUCTIONS READ THIS OPERATION MANUAL AND SAFETY RULES BEFORE OPERATING YOUR UNIT. Compare the illustrations with your unit to familiarize yourself with the location of various controls and adjustments. Save this manual for future reference. Chemical Hose Spray High Pressure Hose Engine... - Page 11 BASIC ELEMENTS OF ENGINE Refer to the engine manual for location and operation of engine controls. Choke Control: Opens and closes carburetor choke valve Throttle Control Lever: Controls engine speed. Starter Grip: Pulling starter grip operates recoil starter to crank engine. PRESSURE WASHER TERMINOLOGY PSI: Pounds per Square Inch.
- Page 12 HOW TO USE WAND: Your pressure washer is equipped with a multi-adjustable spray wand with both high and low pressure settings. The high pressure setting is for cleaning and rinsing, the low pressure setting is for applying chemicals or cleaning solutions to surfaces.
- Page 13 HOW TO APPLY CHEMICALS AND CLEANING SOLVENTS Applying chemicals or cleaning solvents is a low pressure operation. NOTE: Use only soaps and chemicals designed for pressure washer use. Do not use bleach. To apply chemicals: Press chemical hose onto barbed fitting located near high pressure hose connection of pump as shown.
- Page 14 STARTING Prior to starting, refer to your engine manual for proper starting procedures for your engine type. In a well ventilated outdoor area add fresh high quality unleaded gasoline with a pump octane rating of 86 or higher. Do not overfill. Wipe up spilled fuel before starting the engine.
-
Page 15: Maintenance
MAINTENANCE When performing maintenance, you may be exposed to hot surfaces, water pressure, moving parts, or fire that can cause serious injury or death! Before performing any maintenance or repair, disconnect spark plug wire, let engine cool and release all water pressure. The engine contains flammable fuel. - Page 16 HOW TO CLEAN THE WATER INLET FILTER This screen filter should be checked periodically and cleaned if necessary. Remove filter by grasping end and removing it from Filter Screen water inlet of pump as shown. Clean filter by flushing it with water on both sides. Re-insert filter into water inlet of pump.
-
Page 17: Storage
STORAGE ENGINE Consult the Engine Owners Manual for the manufacturer's recommendations for storage. PUMP It is recommended that you follow these steps to protect the internal seals of the pressure washer when STORING THE UNIT FOR MORE THAN 30 DAYS AND/OR WHEN FREEZING TEMPERATURES ARE EXPECTED. -
Page 18: Trouble Shooting Guide
TROUBLE SHOOTING GUIDE CAUSE CORRECTION PROBLEM Add Fuel. No fuel. Engine will not start (see Engine Pressure builds up after two pulls Squeeze gun trigger to relieve pressure. Manual for on the recoil starter or after initial further engine use. troubleshooting) Move choke to the “Choke”... - Page 19 CAUSE CORRECTION PROBLEM See How to Use Spray Wand Spray wand not in low pressure. Will not draw paragraph in the Operation chemicals Section. Chemical filter clogged. Clean filter. Make sure end of chemical hose Chemical screen not in chemical is fully submerged into chemical.
- Page 20 NOTES 21- ENG D28713...
-
Page 21: Quick Facts
QUICK FACTS 1-800-475-5660 FOR PARTS SERVICE OR REPAIR CALL Use fresh high quality unleaded gas. Add stabilizer to fuel tank and run engine for 5 minutes before storage. Engine oil: Refer to engine owners manual supplied with this unit. Use only cold water. Do not operate unit with clogged or missing water filter/screen.
