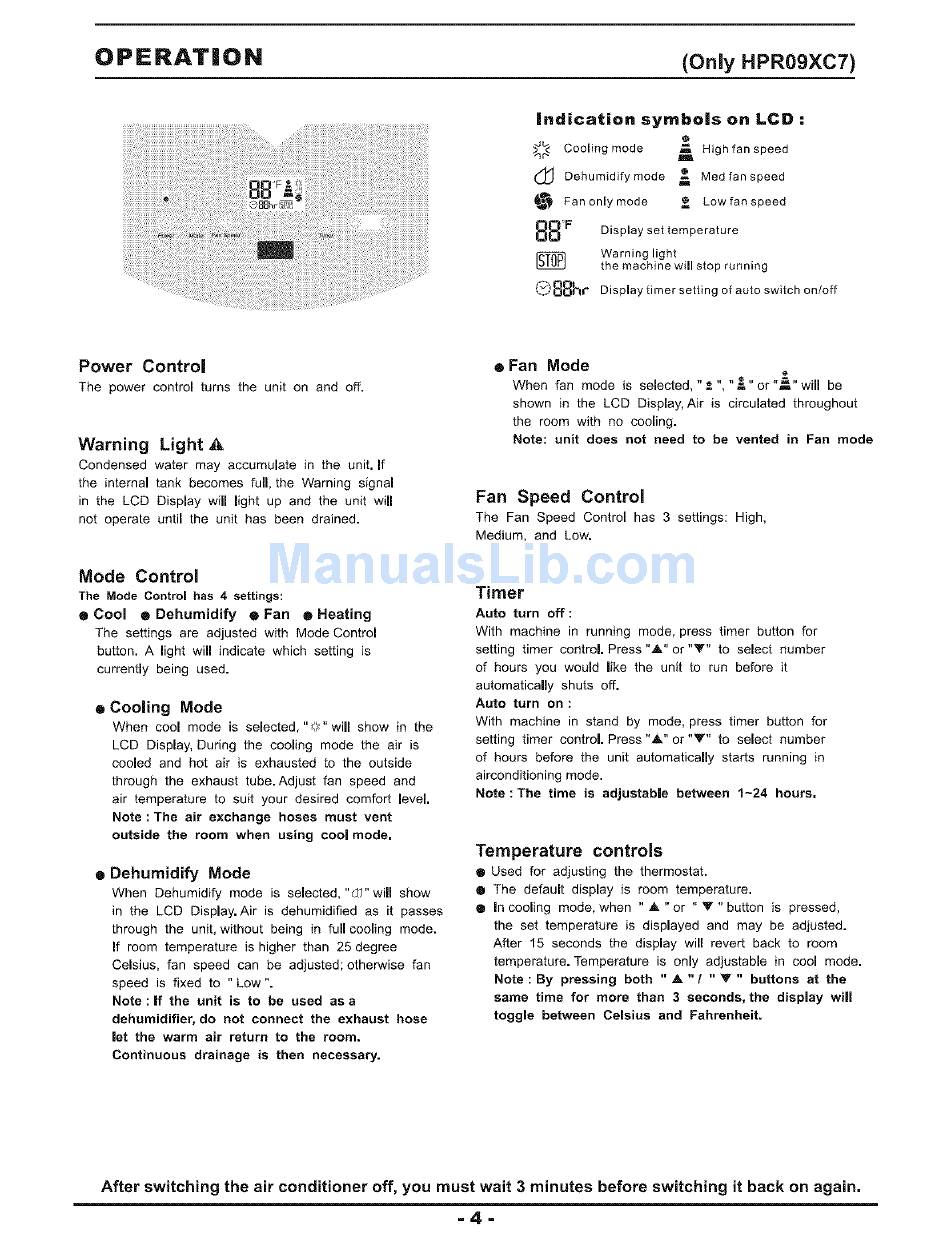

O P E RAT'| O N
(Only HPR09XC7)
Indication symbols on LCD :
o
>_r< Cooling mode _= Highfanspeed
am
(_ Dehumidifymode _ Medfanspeed
&_ Fan only mode
,_ _ Low fan speed
88 F Display set temperature
Warning light
the machine will stop running
_._ 88h¢ Display timer setting of auto switch on/off
Power Control
The power control turns the unit on and off.
Warning Light &
Condensed water may accumulate in the unit. If
the internal tank becomes full, the Warning signal
in the LCD Display will light up and the unit will
not operate until the unit has been drained.
• Fan Mode
When fan mode is selected, ",_ ", "_" or "_" will be
shown in the LCD Display, Air is circulated throughout
the room with no cooling.
Note: unit does not need to be vented in Fen mode
Fan Speed Control
The Fan Speed Control has 3 settings: High,
Medium, and Low.
Mode Control
The Mode Control has 4 settings:
e Cool • Dehumidify e Fan ® Heating
The settings are adjusted with Mode Control
button. A light will indicate which setting is
currently being used.
o Cooling Mode
When cool mode is selected, "_i_" will show in the
LCD Display, During the cooling mode the air is
cooled end hot air is exhausted to the outside
through the exhaust tube. Adjust fan speed end
air temperature to suit your desired comfort level.
Note : The air exchange hoses must vent
outside the room when using cool mode,
•
Dehumidify
Mode
When Dehumidify mode is selected, "_" will show
in the LCD Display. Air is dehumidified as it passes
through the unit, without being in full cooling mode.
If room temperature is higher than 25 degree
Celsius fan speed can be adjusted; otherwise fan
speed is fixed to " Low".
Note:If the unit is to be used as a
dehumidifier, do not connect the exhaust hose
let the warm air return to the room.
Continuous drainage is then necessary.
Timer
Auto turn off:
With machine in running mode, press timer button for
setting timer control. Press ",_." or"Y" to select number
of hours you would like the unit to run before it
automatically shuts off.
Auto turn on:
With machine in stand by mode, press timer button for
setting timer control Press"_," or"V" to select number
of hours before the unit automatically starts running in
airconditioning mode.
Note:The time is adjustable between 1-24 hours,
Temperature controls
S Used for adjusting the thermostat.
® The default display is room temperature.
O In cooling mode, when " ,& "or " V " button is pressed,
the set temperature is displayed and may be adjusted.
After 15 seconds the display will revert back to room
temperature. Temperature is only adjustable in cool mode.
Note:By pressing both "A"/ "Y" buttons at the
same time for more than 3 seconds, the display will
toggle between Celsius and Fahrenheit.
After switching the air conditioner off, you must wait 3 minutes before switching it back on again.
