Haier HPR09XC7 User Manual page 10

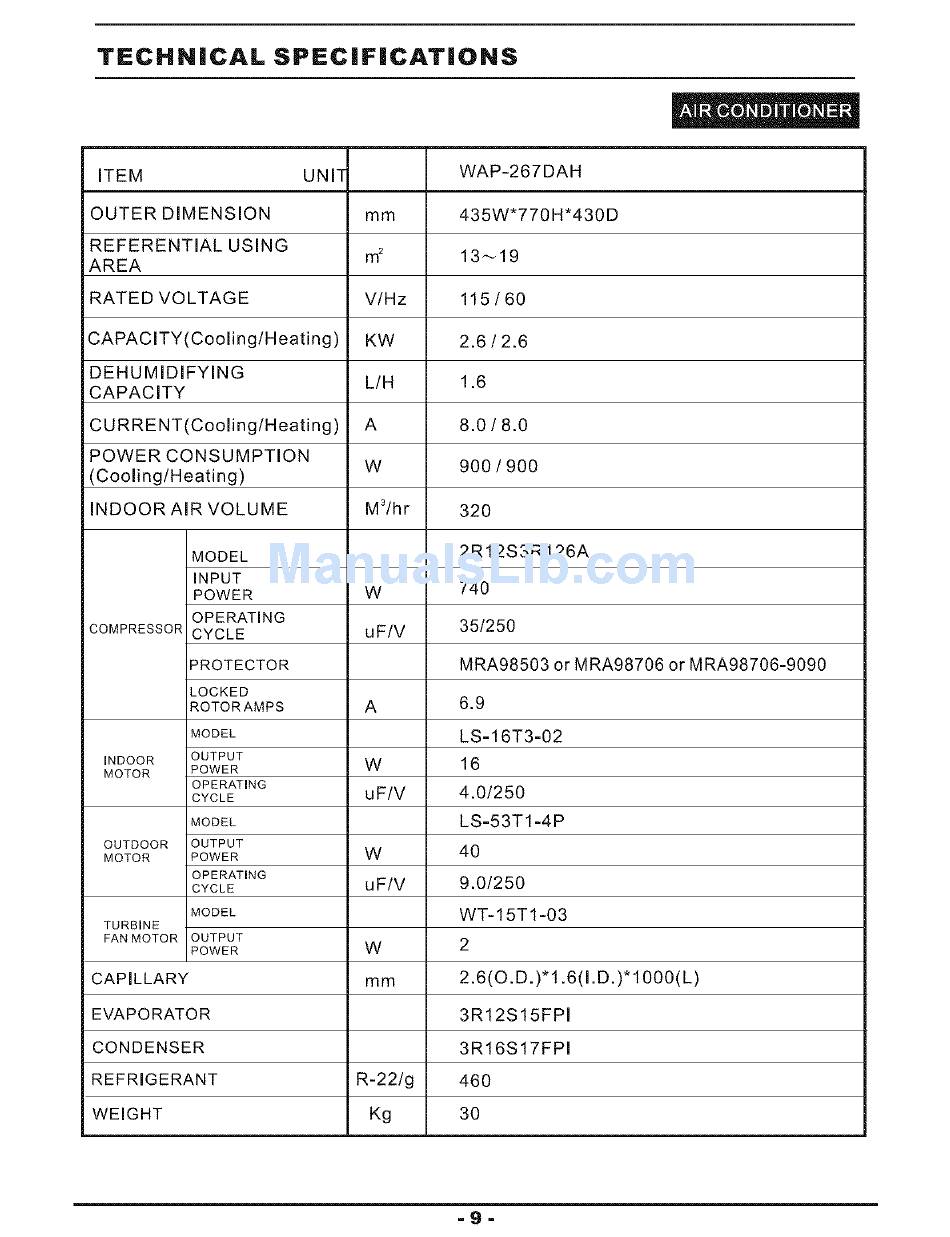

TECHNICAL SPECIFiCATiONS
ITEM UNIT WAP-267DAH
OUTER DIMENSION mm 435W*770H*430D
REFERENTIAL USING
m2 13-_19
AREA
RATED VOLTAGE V/Hz 115/60
CAPACITY(Cooling/Heating) KW 2.6 / 2.6
DEHUMIDIFYING
L/H 1.6
CAPACITY
CURRENT(Cooling/Heating) A 8.0 ! 8.0
POWER CONSUMPTION
(Cooling/Heating) W 900 / 900
INDOOR AIR VOLUME M3/hr 320
MODEL
2R12S3R126A
INPUT
POWER W
740
OPERATING
COMPRESSORCYCLE uF/V 35/250
PROTECTOR MRA98503 or MRA98706 or MRA98706-9090
LOCKED
ROTORAMPS A 6.9
MODEL
LS-16T3-02
INDOOR OUTPUT
MOTOR POWER W
16
OPERATING
CYCLE uF/V 4.0/250
MODEL LS-53T1-4P
OUTDOOR OUTPUT
MOTOR POWER W
40
OPERATING
CYCLE uF/V 9.0!250
MODEL
WT-15T1-03
TURBINE
FAN MOTOR OUTPUT
POWER W
2
CAPILLARY mm 2.6(O.D.)'1.6(I.D.)*1000(L)
EVAPORATOR 3R12S 15FPI
CONDENSER 3R16S17FPI
REFRIGERANT R-22/g 460
WEIGHT Kg 30
"9"
