Control Panel Parts - KitchenAid KEBS208DBL8 Parts List

30" built−in electric double oven thermal convection self−clean
Hide thumbs

Advertisement

For Models:KEBS208DBL8, KEBS208DWH8, KEBS208DBS8, KEBS208DSS8
8177423

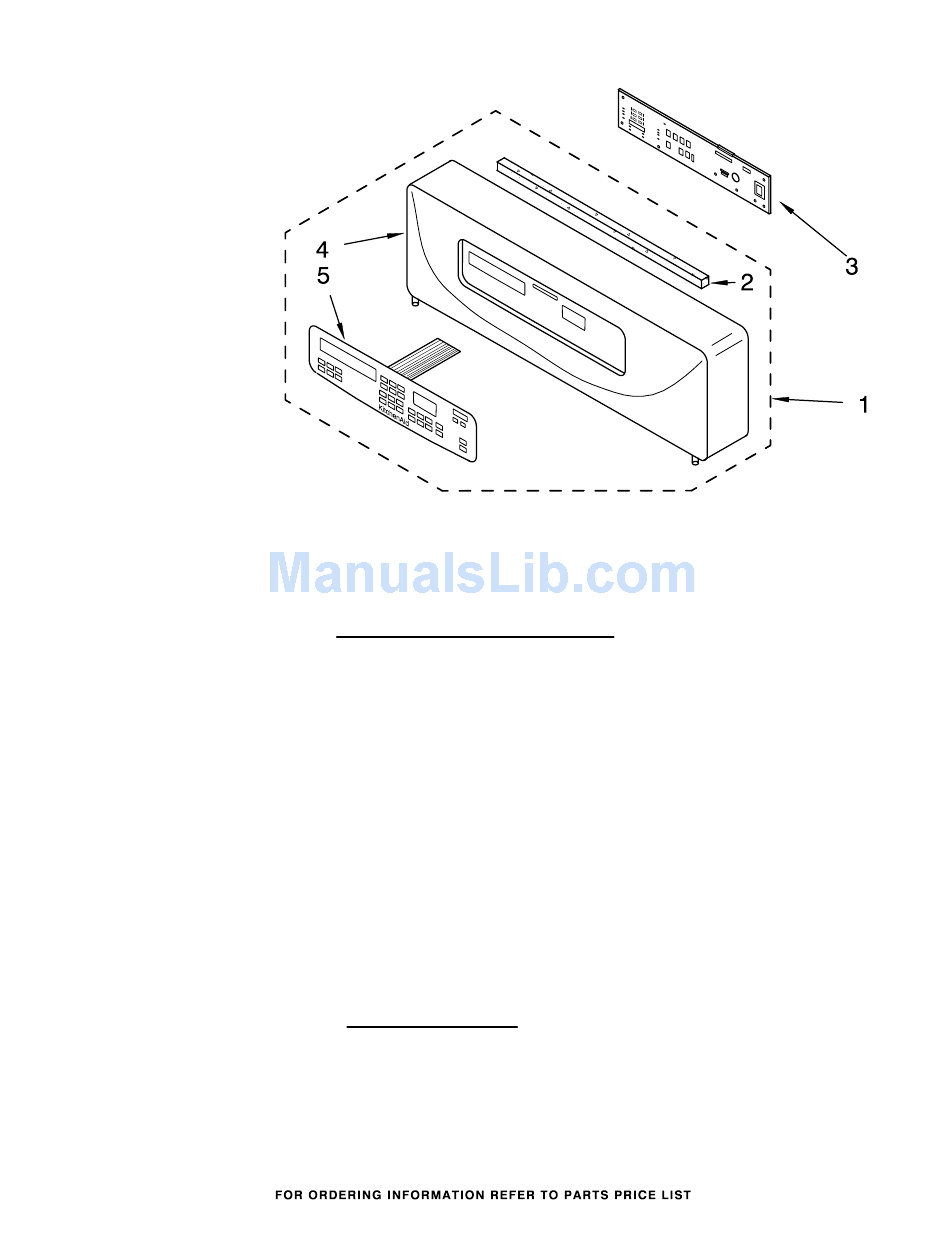

CONTROL PANEL PARTS

(Black)
(White)
Illus.
Part
No.
No.
DESCRIPTION
NOTE: The screws and nuts
required to attach a part are
listed immediately following
that part.
1
Control Panel Assy
W/Membrane, Switch
4451949 Black & Black
Stainless
4451950 White Model
N/A Stainless
Steel
2
4451034 Gasket,
Control Panel
3
4451986 Microcomputer
4449745 Screw
4
4451791 Panel, Control
Stainless Steel
5
4452379 Membrane Switch
Stainless Steel
LITERATURE PARTS
LIT4450411 Installation
Instructions
LIT4451952 Use & Care Guide
LIT4449066 Cookbook
(T/C Oven)
LIT4451879 Tech Sheet
LIT4449264 Easy Set Guide
LIT3191638 Safer Cooking Tips
3
(Black−Stainless) (Stainless Steel)
