W10207219

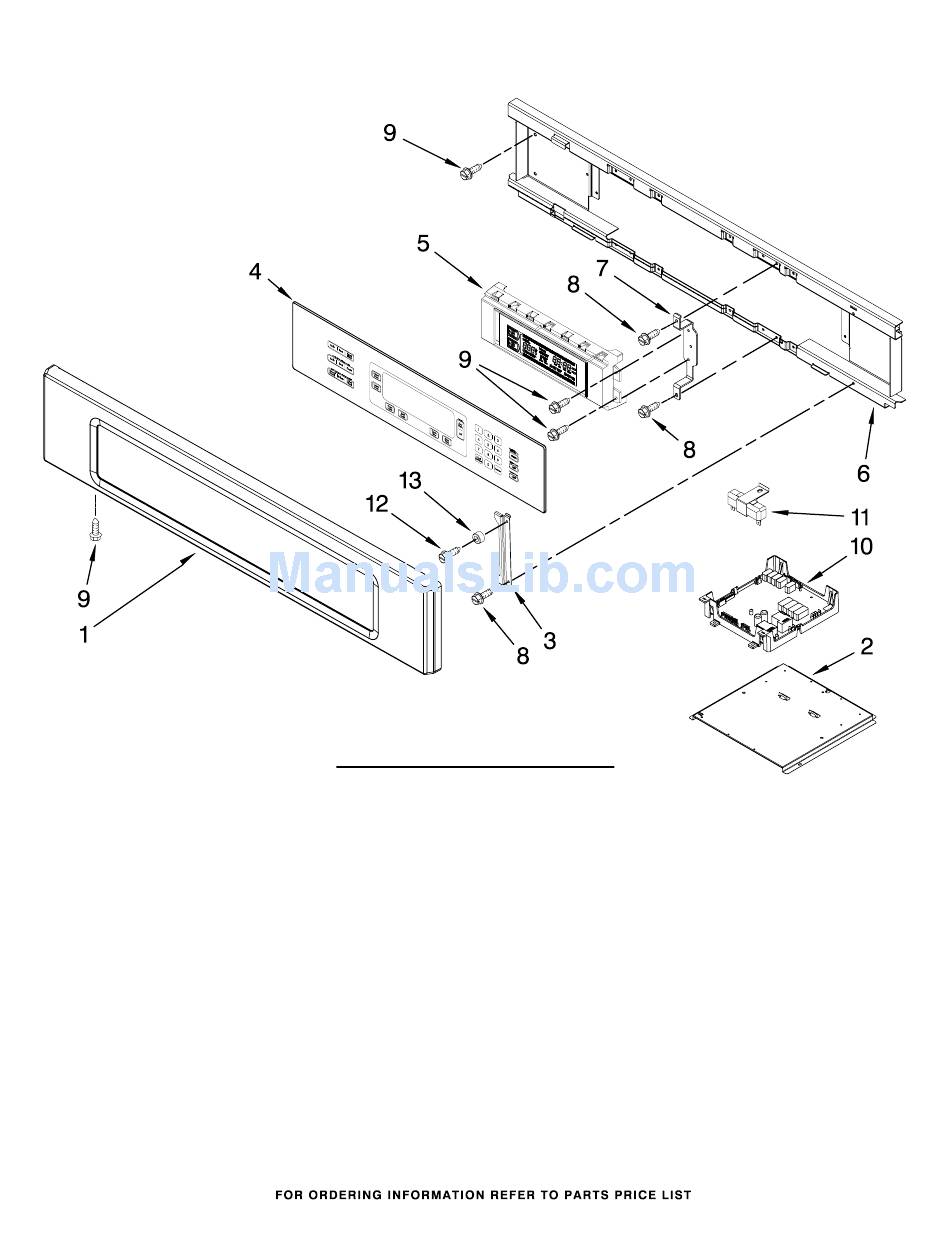

CONTROL PANEL PARTS

For Models:KEBS277SBL02, KEBS277SWH02, KEBS277SSS02
(Black)
Illus.
Part
No.
No.
1
8303717BL Black
8303717WH White
W10165446 Stainless
2
8303687 Support, Appliance
3
8303797 Bracket, Control
4
8304332 Keyboard, Glass
5 W10172472 User Inferface
6
8303720 Backer, Control
7
8303887 Bracket,
8
4449154 Screw
9
3400832 Screw
10 W10119142 Appliance Manager
11
8304441 Resistor, Drop
12
4449809 Screw
13
9760749 Bumper
(White)
(Stainless)
DESCRIPTION
Panel, Control
Manager
Panel
Touch
Enclosure (2)
3
