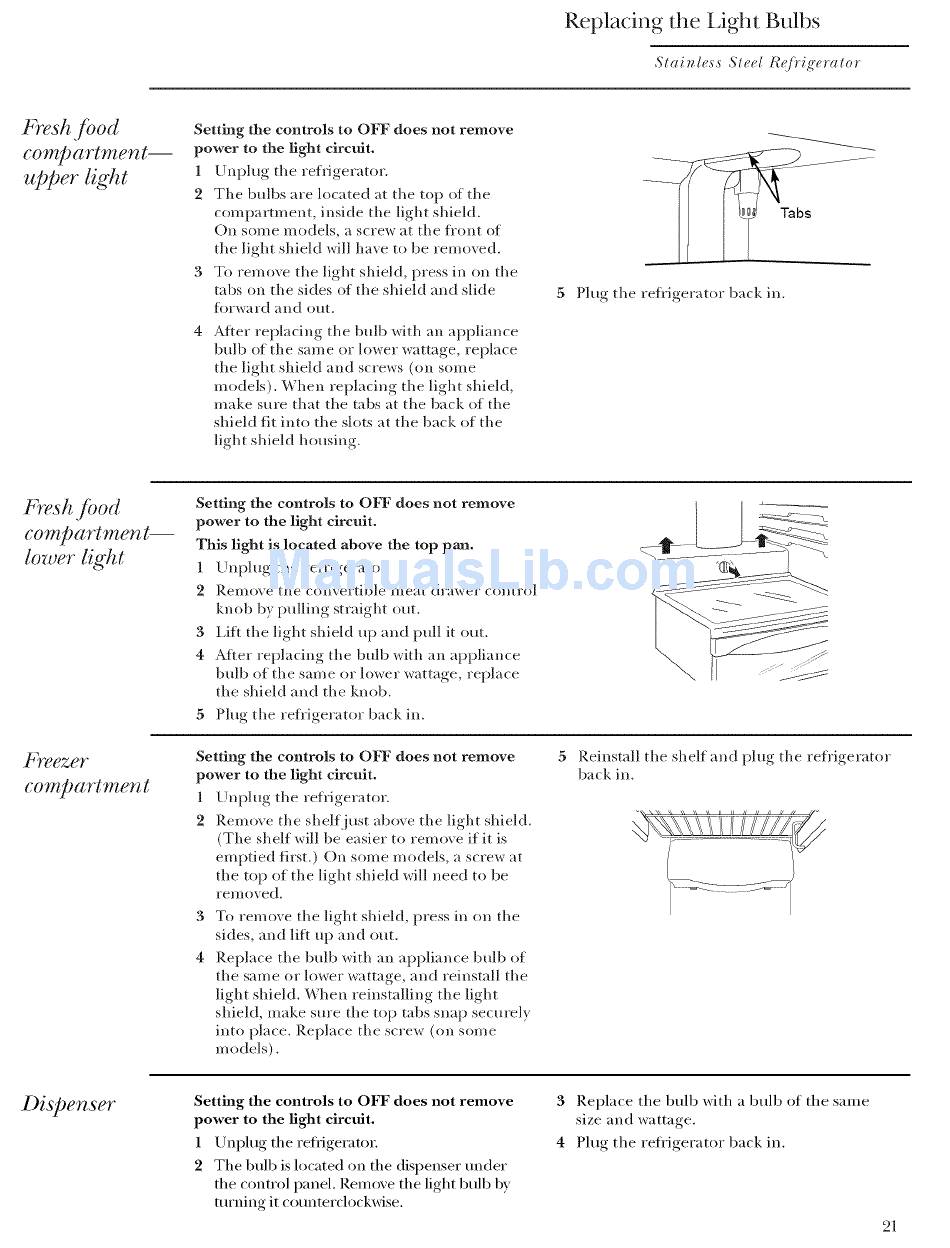

Replacing
the I,ight Bulbs
Stai_dess
Steal
Re,/rh_'erator,
l%sh Jbod
corrzpartment--
upper l ght
Setting
the controls
to OFF does not remove
power
to the fight circuit.
1 Unplug
the refrigerator.
2 The bulbs
are located
at the top of the
compamnent,
inside
the light shiekl.
On some models,
a screw at the front
of
the light shield
will have to be removed.
3 To remove
the light shield,
press
in on the
tabs on the sides of the shield
and slide
fl)rward
and
out.
After replacing
the bulb with an appliance
bulb
of the same or lower wattage,
replace
the light shield
and screws
(on some
models).
When
replacing
the light shield,
make
sure that the tabs at the back of the
shield
fit into the slots at the back of the
light shield
housing.
5 Plug the refrigerator
back in.
l%sh./bod
compartment--
lower light
Setting
the controls
to OFF" does not remove
power
to the light circuit,
This light is located
above
the top pan.
1 Unplug
the refl'igerator.
2 I_emove
tile convertible
meat
drawer
control
knob
by pulling
straight
out.
3 Litt the light shield
up and pull it out.
4 Atter
rephcing
the bulb with an appliance
bulb of the same
or lower wattage,
replace
the shield
and the knob.
5 Plug the refi'igerator
back in.
Setting
the controls
to OFF" does not remove
power
to the light circuit.
1 Unplug
the reti'igerator.
2 I_-emove the shelf just above
the light shield.
(Tile shelf will be easier to remove
if it is
emptied
first.)
On some models,
a screw at
the top of the light shield
will need
to be
removed.
3
4
To remove
tile light shield,
press
in on the
sides, and li_t up and out.
Replace
the bulb with an appliance
bulb
of
the same or lower wattage,
and
reinstall
the
light shield.
When
reinstalling
tile light
shield,
make
sure
the top tabs snap securely
into place.
Replace
the screw
(on some
models).
5 Reinstall the shelf and plug the refrigerator
back in.
Dispenser
Setting
the controls
to OFF does not remove
power
to the light circuit.
1 Unplug
the refiJgeraton
2 The bulb is located
on the dispenser
trader
the control
panel.
Relnove
the light bulb by
turning
it counterclockwise.
3 Replace
the bulb with a bulb of the same
size and wattage.
i eli 1 *ei,
4 Plug the
" ""_
"ator back in
21
