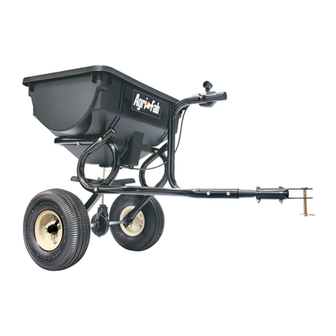

- Page 1 OWNERS MANUAL Model No. 45-0313 BROADCAST SPREADER CAUTION: Read Rules for Safe Operation and Instructions Carefully • Assembly • Operation • Maintenance • Repair Parts FORM NO. 48249 (1/02)
-
Page 2: For Safe Operation
RULES FOR SAFE OPERATION Any power equipment can cause injury if operated improperly or if the user does not understand how to operate the equipment. Exercise caution at all times when operating equipment. • Read the towing vehicle owners manual and tow- •... - Page 3 SHOWN FULL SIZE REF. QTY. DESCRIPTION Hex Bolt, 114 x 1-314" Hex Bolt, 1/4 x 2-114 Hitch Pin Hex Nut, 1/4-20 Hair Cotter Pin, 1/8" REMOVAL OF PARTS FROM CARTON TOOLS REQUIRED ASSEMBLY • Remove all parts and hardware packages from 7/16"...
- Page 4 ASSEMBLYINSTRUCTIONS Assemble vinyl caps onto the ends of the R.H. and Assemble the Hitch Brackets to the Hitch Control L.H. Hitch Tubes. See figure 1. Tube using two 1/4" x 1-314" hex bolts and 1/4" Assemble the R.H. Hitch Tube to the spreader hex nuts.
-
Page 5: Operation
OPERATION APPLICATION TIPS 1. This unit will cover a 4 to 8 foot wide area depending HOW TO USE YOUR SPREADER on the material used and walking speed of the user. To avoid misses or striping, make each pass about 5 ADJUSTING THE FLOW RATE SETTING...
