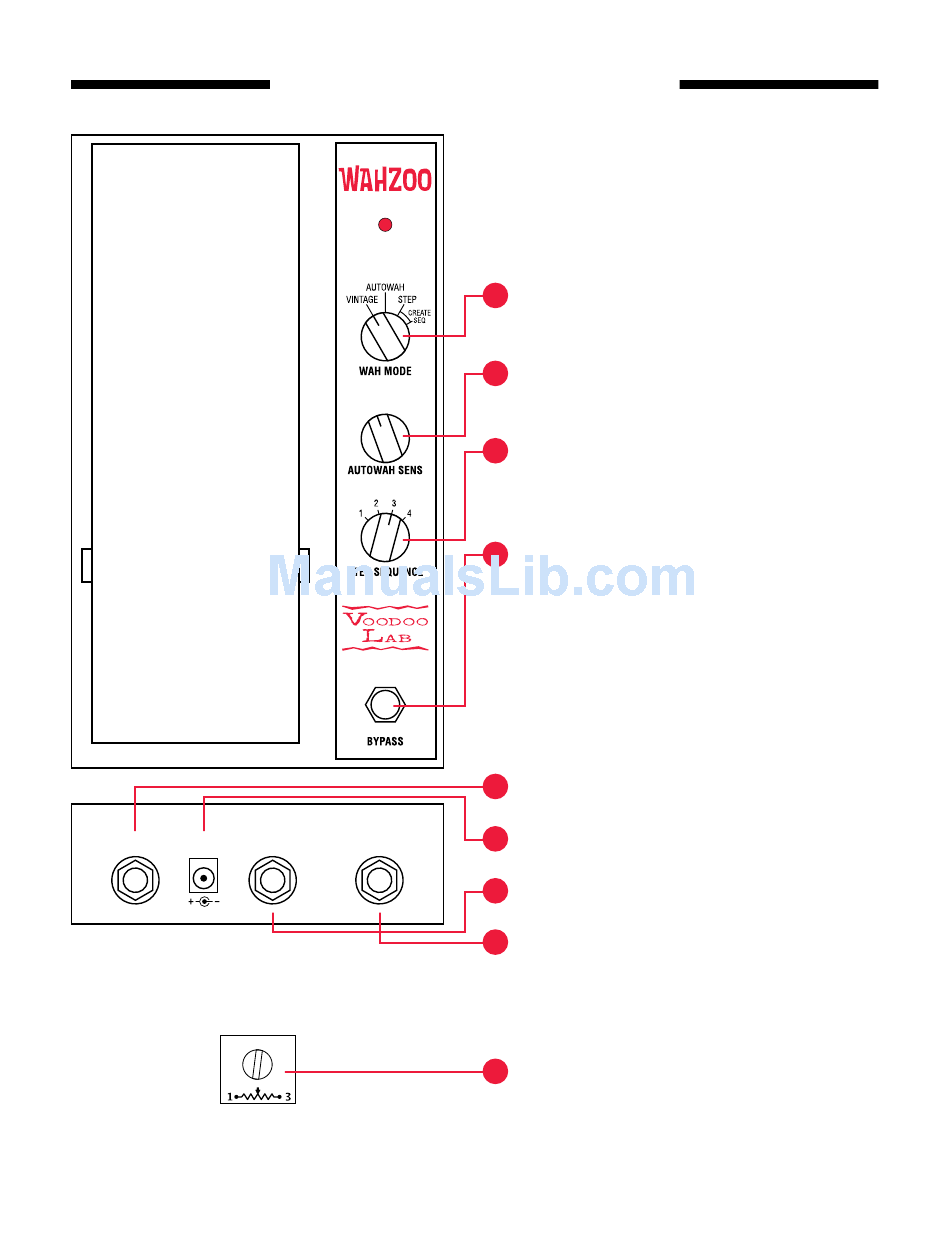

Controls and Connections

INPUT OUTPUT
9VDC
1. Wah mode switch. Select between vintage
(traditional wah), autowah, and stepwah.
2. Autowah sensitivity. Turn down for hotter
pickups, up for longer dwell.
3.
Step sequence selector. Select from 4 user
programmable sequences.
Stepwah only.
4. Bypass footswitch. Switch between effect
and true bypass. Also, enters step positions
to create stepwah sequence.
5. Input jack. Signal from guitar.
MADE IN U.S.A.
6. Power jack.
TAP/ MODE
7. Output jack. Signal to amp.
8. Tap/mode jack. External footswitch connec-
tion to use tap tempo in Stepwah mode and
allow selection between Vintage/Autowah
or Vintage/Stepwah modes.
9.
Treadle adjust. Internal adjustment to fine
tune toe forward position.
3
