R

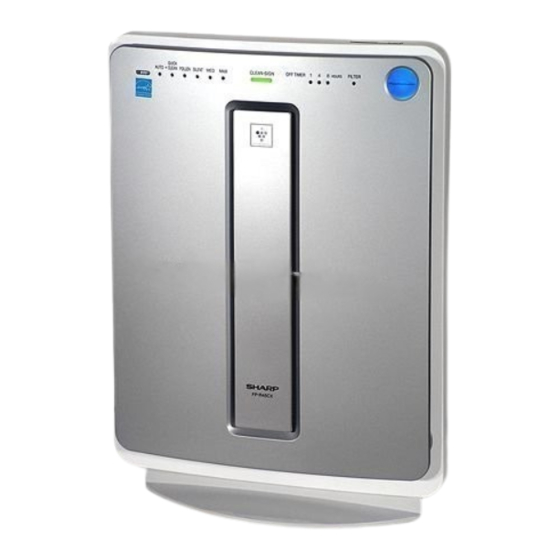

AIR PURIFIER
OPERATION MANUAL
PURIFICATEUR D'AIR
MANUEL D'UTILISATION
This product earned the ENERGY STAR by meeting
strict energy efficiency guidelines set by the US EPA.
US EPA does not endorse any manufacturer claims
of healthier indoor air from the use of this product.
The energy efficiency of this ENERGY STAR quali-
fied model is measured based on a ratio between the
model's CADR for Dust and the electrical energy it
consumes, or CADR/Watt.
Ce produit a le droit de porter la marque ENERGY
STAR après avoir répondu à des critères stricts en ce
qui concerne l'efficacité énergétique, tels qu'établis
par l'agence EPA aux É-U. L'agence EPA aux É-U
n'appuie aucunement les témoignages publicitaires
du fabricant indiquant que ce produit rend l'air intérieur
des locaux plus sain.
L'efficacité énergétique de ce modèle, qui bénéficie
de la reconnaissance ENERGY STAR, est mesurée
par le rapport entre le DAP (débit d'air purifié) du
modèle et l'énergie électrique qu'il consomme, soit le
rapport DAP/Watt.
FP-R45CX

Advertisement

Table of Contents
loading

Summary of Contents for Sharp Plasmacluster FP-R45CX

  • Page 1 ENERGY STAR, est mesurée par le rapport entre le DAP (débit d’air purifié) du *Plasmacluster is a trademark of Sharp Corporation. modèle et l’énergie électrique qu’il consomme, soit le *Plasmacluster est une marque de commerce de Sharp Corporation. rapport DAP/Watt.
  • Page 2 Please read before operating your new Air Purifier The air purifier draws in room air from its air intake, lets the air pass through a Active Carbon Filter (deodorization filter) and a True HEPA Filter (dust collec- tion filter) inside of the unit, then discharges the air from its air outlet. The air purifier unit repeats this process by moving its internal fan.
  • Page 3: Table Of Contents

    TEL: 1-800-BE-SHARP Declaration of Conformity SHARP AIR PURIFIER FP-R45CX This ISM device complies with Canadian Thank you for purchasing the SHARP Air Puri- ICES-001 fier. Please read this manual carefully for the cor- rect usage information. Before using this prod- Responsible Party: SHARP ELECTRONICS OF CANADA LTD.
  • Page 4: For Customer Assistance(U.s

    Address City State Telephone TO PHONE: Dial 1-800-BE-SHARP (237-4277) for: SERVICE (for your nearest Sharp Authorized Servicer) PARTS (for your Authorized Parts Distributor) ACCESSORIES ADDITIONAL CUSTOMER INFORMATION TO WRITE: For service problems, warranty information, missing items and other assistance: Sharp Electronics Corporation...
  • Page 5: Consumer Limited Warranty(U.s

    Product, and shall constitute full satisfaction of all claims, whether based on contract, negligence, strict liability or otherwise. In no event shall Sharp be liable, or in any way responsible, for any damages or defects in the Product which were caused by repairs or attempted repairs performed by anyone other than an authorized servicer. Nor shall Sharp be liable or in any way responsible for any incidental or consequential economic or property damage.
  • Page 6: For Customer Assistance(Canada

    City Province Postal Code Telephone TO PHONE: Dial 1-905-568-7140 for: SERVICE (for your nearest Sharp Authorized Servicer) PARTS (for your Authorized Parts Distributor) ACCESSORIES ADDITIONAL CUSTOMER INFORMATION TO WRITE: For service problems, warranty information, missing items and other assistance: Sharp Electronics of Canada Ltd.
  • Page 7: Limited Warranty(Canada

    Sharp product or the loss of information. The purchaser will be responsible for any removal, reinstallation, transportation and insurance costs incurred.
  • Page 8: Important Safety Instructions

    • Use care when cleaning the air purifier. Strong corrosive cleansers may damage the exterior. • Only Sharp Authorized Servicers should service this air purifier. Contact the nearest Servicer for any problems, adjustments, or repairs. • The batteries must be removed from the remote control before disposal, and the batteries must be disposed of safely.
  • Page 9: Cautions Concerning Operation

    IMPORTANT SAFETY INSTRUCTIONS CAUTIONS CONCERNING OPERATION • Do not block the intake and air outlet. • Do not use the unit near or on hot objects, such as range or where it may come into contact with steam. • Do not use the unit on its side. •...
  • Page 10: Part Names

    PART NAMES MAIN UNIT DISPLAY OFF Timer Display Indicator Lights AUTO Operation Indicator Light Odor Sensor QUICK CLEAN operation Indicator Light Filter Indicator Light Pollen Mode Indicator Light Remote Control Receiver Plasmacluster Fan Speed Indicator Lights Indicator Light CLEAN-SIGN Light Odor Sensor Dust Sensor POWER ON/OFF Button...
  • Page 11: Preparation

    PREPARATION INSERTING BATTERIES IN THE REMOTE CONTROL Remove the back cover Press and slide the back cover to re- move. Insert batteries Insert batteries with shown below. Close the back cover Battery Information • The battery life is about 1 year. •...
  • Page 12: Filter Installation

    PREPARATION Be sure to remove the power plug from the wall outlet. FILTER INSTALLATION To maintain the quality of the filters, they are installed in the main unit within plastic bags. Be sure to remove the filters from the plastic bags before using the unit. Remove the filters Remove the Front Panel.
  • Page 13: Install The Filters

    True HEPA Filter Install the filters Place the True HEPA Filter within the Filter Frame. Please make sure that the True HEPA Filter is placed in proper Filter Frame orientation. Do not install the filter backwards or the unit will not operate properly. Band Place the Active Carbon Filter on Active Carbon Filter...
  • Page 14: Operation

    OPERATION Main Unit Controls • AUTO • QUICK CLEAN • POLLEN MAIN UNIT OPERATION • SILENT • MEDIUM • MAX Plasmacluster Indicator Light Filter Indicator Light MODE Selection Button CLEAN-SIGN Light Power ON/OFF Button Power ON/OFF Button • Used to start operation (short beep) and stop operation (long beep) •...
  • Page 15: Filter Indicator Light

    DETERMINING THE BASE IMPURITY RATE For the first 30 seconds after the power plug is inserted into the wall outlet, the unit will check the conditions of the air. If operation is set to ON during this time, the CLEAN-SIGN LIGHT will alternately flash in green, orange and red. PLASMACLUSTER INDICATOR LIGHT Plasmacluster ion operation is selected using the remote control.
  • Page 16: Remote Control Operation

    OPERATION Operations available with the Remote Control • AUTO • MANUAL REMOTE CONTROL OPERATION • POLLEN • OFF TIMER • QUICK CLEAN • Lights ON/OFF Plasmacluster Ion mode selections POWER ON/OFF Button • ION AUTO • CLEAN • When you press the •...
  • Page 17: Care And Maintenance

    CARE AND MAINTENANCE To maintain optimum performance of this air purifier, please clean the unit including the sensor and filters periodically. When cleaning the unit, be sure to unplug the power cord, and never handle the plug with wet hands. Electrical shock and/or bodily injury may occur as a result. Odor Sensor Dust Sensor Main Unit...
  • Page 18: Washable Active Carbon Filter Care

    CARE AND MAINTENANCE WASHABLE ACTIVE CARBON FILTER CARE Dry the filter outdoors HAND WASH ONLY! if possible in a well DO NOT TUMBLE DRY! ventilated area. Care Cycle When the Filter Indicator Light lights up, this indicates that the filter needs to be cleaned. If the unit is kept on 24 hours a day then the Fil- ter Indicator Light will activate in about 2 months.
  • Page 19: Filter Replacement Guidelines

    If you need a True HEPA Filter or a Washable Active Carbon Filter only : • True HEPA Filter : PFIL-A097KKEZ • Washable Active Carbon Filter : PFIL-A098KKEZ For replacement filters contact Sharp for information. (U.S.A) 1-800-BE-SHARP or website at www.sharpusa.com (CANADA) (905) 568-7140 or website at www.sharp.ca Disposal of Filters Please dispose of replaced filters according to the local disposal laws and regulations.
  • Page 20: Troubleshooting

    TROUBLESHOOTING Before calling for repair, please review the list below, since the problem may not be a unit malfunction. SYMPTOM REMEDY (not a malfunction) The Remote Control does not • Have the batteries been depleted? • Are the batteries inserted correctly? work •...
  • Page 21: Specifications

    SPECIFICATIONS FP-R45CX Model 120V / 60Hz Power supply Fan Speed Adjustment SILENT Speed Rated Power 50 W 7.5 W 3.5 W Operation Fan Speed CFM (m /min.) 17 (0.5) 177 (5.0) 70 (2.0) Applicable Floor Surface 253 sq.ft.* (23.5m 157 / 163 / 156 CADR(Dust/Smoke/Pollen) Cord Length 8.3 ft (2.5m)
  • Page 22 Veuillez lire ces instructions avant de faire fonctionner votre nouveau purificateur d’air Le purificateur aspire l’air de la pièce par sa prise d’air, le fait circuler à travers un filtre au charbon actif (action désodorisante) et un véritable filtre HEPA (collection de la poussière) placés à...
  • Page 23 335 Britannia Road East, Mississauga, Ontario L4Z 1W9 Canada TEL: (905) 568-7140 Merci d’avoir choisi un purificateur d’air SHARP. SVP lisez attentivement ce mode d’emploi pour faire fonctionner correctement votre appareil. Avant d’utiliser ce produit, assurez-vous de lire la section «...
  • Page 24: Pour Vous Protéger

    Ville Province Code Postal Téléphone POUR TÉLÉPHONER : Composez le 1-905-568-7140 pour : SERVICE (Pour obtenir les coordonnées du Centre de service agréé Sharp le plus proche) PIÈCES (Pour le nom d’un Revendeur de Pièces Agréé) ACCESSOIRES AUTRES INFORMATIONS POUR NOUS ÉCRIRE : Pour de I’aide côté service, des informations sur la garantie, des pièces manquantes ou autre :...
  • Page 25 1 an (excepté filtres) Pour obtenir le nom et I’adresse du Centre de service ou du Détaillant autorisé au service Sharp le plus proche, veuillez écrire ou téléphoner à : SHARP ÉLECTRONIQUE DU CANADA LTÉE., 335 Britannia Road East, Mississauga, Ontario, L4Z 1W9...
  • Page 26: Importantes Consignes De Sécurité

    Faites attention lors du nettoyage du purificateur d’air. Les nettoyants corrosifs puissants risquent d’endommager l’extérieur de l’appareil. • L’entretien du purificateur ne devrait être confié qu’à un centre de service agréé Sharp. Contactez le centre de service le plus près pour toute défectuosité, pour un réglage ou une réparation. •...
  • Page 27: Précautions Concernant Le Fonctionnement

    IMPORTANTES CONSIGNES DE SÉCURITÉ PRÉCAUTIONS CONCERNANT LE FONCTIONNEMENT • Ne bloquez pas les entrées et sorties d’air. • N’utilisez pas l’appareil près ou sur des sources de chaleur comme une cuisinière ou là où il est exposé à de la vapeur. •...
  • Page 28: Désignation Des Pièces

    DÉSIGNATION DES PIÈCES AFFICHAGE DE L’UNITÉ PRINCIPALE Voyants de minuterie d’arrêt Capteur d’odeur Voyant de fonctionnement AUTO Voyant de l’état du filtre Voyant de fonctionnement QUICK CLEAN Voyant d’élimination du pollen Récepteur de la télécommande Indicateur Voyants de vitesse du ventilateur Voyant CLEAN SIGN Plasmacluster Capteur d’odeur...
  • Page 29: Préparation

    PRÉPARATION INSERTION DES PILES DANS LA TÉLÉCOMMANDE Retirez le couvercle arrière Appuyez sur le couvercle et faites glisser pour le retirer. Insertion des piles Insérez les piles en respectant les polarités tel qu’illustré. Replacez le couvercle arrière. Renseignements sur les piles •...
  • Page 30 PRÉPARATION Assurez-vous de débrancher la fiche de la prise murale. POSE DES FILTRES Les filtres sont installés dans l’unité principale dans leurs sacs de plastique pour préserver leur qualité. Assurez-vous de retirer les filtres de leur sac avant d’utiliser l’appareil. Retrait des filtres Retirez le panneau avant.
  • Page 31: Pose Des Filtres

    Filtre HEPA Véritable Pose des filtres Placez le filtre HEPA véritable à l’intérieur du cadre des filtres. Assurez-vous que le filtre HEPA Cadre des filtres véritable est correctement orienté. N’installez pas le filtre à l’envers sinon l’appareil ne fonctionnera pas correctement. Bande Placez le filtre au charbon Filtre au charbon actif...
  • Page 32: Fonctionnement

    FONCTIONNEMENT Commandes de l’unité principale • AUTO • QUICK CLEAN • POLLEN FONCTIONNEMENT DE L’UNITÉ PRINCIPALE • SILENCIEUX • MOYEN • Indicateur Plasmacluster Voyant de l’état du filtre Bouton de sélection de MODE Bouton MARCHE/ARRÊT Voyant CLEAN SIGN Bouton Marche/Arrêt •...
  • Page 33 DÉTERMINATION DE LA PURETÉ DE L’AIR Au cours des 30 secondes suivant le branchement de l’appareil dans la prise murale, l’appareil vérifiera la qualité de l’air. Si le fonctionnement est réglé sur ON à ce moment, le voyant CLEAN SIGN clignotera alternativement en vert, orange et rouge.
  • Page 34: Fonctionnement De La

    FONCTIONNEMENT Fonctions disponibles avec la télécommande •AUTO • MANUAL (Manuel) FONCTIONNEMENT DE • POLLEN • OFF TIMER (Minuterie d’arrêt) LA TÉLÉCOMMANDE • QUICK CLEAN • LIGHTS ON/OFF (Activation des voyants) Sélection de mode d’ions Bouton Marche/Arrêt Plasmacluster • Lorsque vous appuyez sur le •...
  • Page 35: Soin Et Entretien

    SOIN ET ENTRETIEN Afin de maintenir l’efficacité optimale de ce purificateur d’air, nettoyez périodiquement cet appareil ainsi que le capteur et les filtres. Lorsque vous nettoyez l’appareil, assurez-vous de le débrancher et ne manipulez pas la fiche avec des mains humides. Cela pourrait causer une électrocution et des blessures.
  • Page 36 SOIN ET ENTRETIEN ENTRETIEN DU FILTRE AU CHARBON ACTIF LAVABLE Faites sécher à l’extérieur si LAVAGE À LA MAIN SEULEMENT possible dans un endroit bien NE PAS SÉCHER À LA MACHINE aéré. Cycle d’entretien Lorsque le voyant du filtre s’allume, le moment est venu de nettoyer le filtre.
  • Page 37: Guide De Remplacement Des Filtres

    Filtre au charbon actif lavable : PFIL-A098KKEZ Pour obtenir des filtres de rechange, contactez Sharp. États-Unis : 1-800-BE-SHARP ou notre site Internet www.sharpusa.com Canada : (905) 568-7140 ou notre site Internet www.sharp.ca Élimination des filtres Débarrassez-vous des filtres selon la législation locale.
  • Page 38: Résolution De Problèmes

    RÉSOLUTION DE PROBLÈMES Avant de faire appel au service, vérifiez les symptômes ci-dessous pour déterminer une solution possible, car le problème n’est peut être pas un mauvais fonctionnement de l’appareil. SYMPTÔMES SOLUTIONS (pas un mauvais fonctionnement) • Est-ce que les piles sont à plat ? •...
  • Page 39: Caractéristiques

    CARACTÉRISTIQUES Modèle FP-R45CX Alimentation 120 V / 60 Hz Réglage de la vitesse du ventilateur MOYENNE SILENCIEUSE Fonctionne≤ment avec changement 50 W 7,5 W 3,5W Puissance nominale de vitesse de ventilation Vitesse du ventilateur m /min. (pi /min.) 5,0 (177) 2,0 (70) 0,5 (17) 23,5 m...
  • Page 40 SHARP ELECTRONICS OF CANADA LTD. SHARP ELECTRONICS CORPORATION 335 Britannia Road East Mississauga, Sharp Plaza, Mahwah, Ontario L4Z 1W9 Canada New Jersey 07430-2135 U.S.A. SHARP CORPORATION SHARP CORPORATION Osaka, Japan Osaka, Japan Printed in China / Imprimé en Chine TINSKA002KKRZ 05E-...
