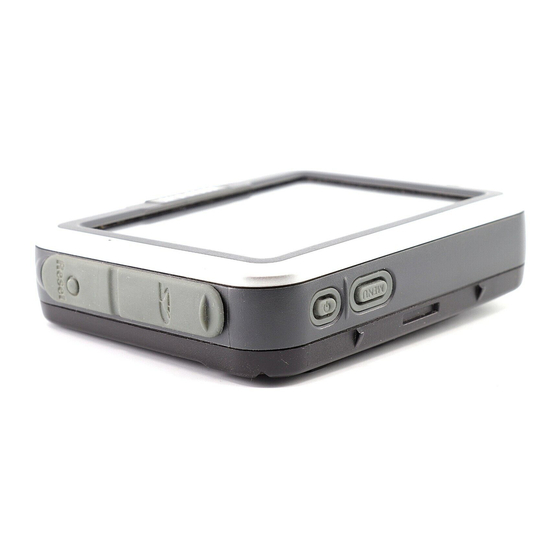

Holux GPSmile 53 Product User Manual

Portable automobile navigation system
Hide thumbs Also See for GPSmile 53:
Table of Contents

Advertisement

Quick Links

GPSmile 53 Portable Automobile
Product User Manual
Version: V1.01
November 2006
Registered info
HOLUX and GPSmile are trademarks of HOLUX Technology, Inc.
All other trademarks belong to each registered companies.
Note
Contents of this manual will be modified without further notice.
The proper operation temperature of the product is between 0℃~40℃.
Operating or recharging in an environment with temperature over 45℃
might cause system to stop functioning. yet this should be considered as a
normal phenomenon. Please do not operate in an extreme temperature
environment.

Navigation System

i
GPSmile53

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GPSmile 53 and is the answer not in the manual?

Questions and answers

Related Manuals for Holux GPSmile 53

Summary of Contents for Holux GPSmile 53

  • Page 1: Navigation System

    Product User Manual Version: V1.01 November 2006 Registered info HOLUX and GPSmile are trademarks of HOLUX Technology, Inc. All other trademarks belong to each registered companies. Note Contents of this manual will be modified without further notice. The proper operation temperature of the product is between 0℃~40℃.
  • Page 2 GPSmile53...

  • Page 3: Safety Precautions

    Safety Precautions • Use the power adapter included with the package, using power adapters other than the one provided will result in malfunction and could prove dangerous. • The device should only be used with the supplied batteries. • About the power adapter 1.

  • Page 4: Warranty Statement

    Holux Technology, or repairs done by anyone other than Holux Technology and authorized retail/service provider.

  • Page 5: Technical Support

    Technical Support • If there are any questions regarding the use of this product, please logon to the website www.holux.com and see the FAQ. • If answers cannot be found on the website, please send us an e-mail info@holux.com , stating your query and location.

  • Page 6: Table Of Contents

    Table of Contents Warranty Statement ............iv Technical Support.............v Maintenance Service............v Preface ................1 Symbols ................1 Important Notice ...............1 Other Functions ..............2 First time use..............3 Copyright .................. 3 Important Notice ..............3 Package Contents .............4 Basic Operation ..............5 Introduction ................5 Front View ..................5 Rear View ..................
  • Page 7 Operating Methods ............14 Startup ..................14 Shutdown................14 Using Functions ..............15 Function Menu ..............16 Entering the Operation Menu ..........16 Music Playback Function............17 Storing MP3 files onto SD memory cards......17 Starting music playback............17 Image Browsing Function............. 19 Other ................20 Video..................
  • Page 8 Operating temperature..............35 Avoid exposure to sunlight ............35 Using the stylus ................35 Cleaning the screen............... 35 Do not disassemble............... 35 Storage..................35 Appendix................36 Specifications ................. 36 Federal regulations ............37 GPSmile53...

  • Page 9: Preface

    Preface We appreciate your purchase of the GPSmile 53. Please read all instructions thoroughly for a full understanding of the products’ features. Symbols For fast reference to the data you wish to find, this manual uses the following symbols. This icon means to take note to messages and to read for while during use.

  • Page 10: Other Functions

    • Do not leave this unit under your front windshield after you leave the vehicle. Exposure to high temperatures might be dangerous and cause overheating to the battery, resulting in malfunction of the device. • Window tinting might interfere with the reception of satellite signals. We recommend you install a vehicle antenna to strengthen and stabilize the signal.

  • Page 11: First Time Use

    First time use Copyright Without the written consent of HOLUX Technology, Inc, this manual including the product and the software may not be duplicated, transmitted, recorded or saved on storage devices; nor shall it be translated under any circumstances into any other languages.

  • Page 12: Package Contents

    Package Contents Your product should include the following accessories: NAV-53 Unit In Vehicle Bracket Bracket fixing Home / Travel Adapter SD Memory Card Car Adapter (Optional) (Optional) CD-ROM Quick Guide GPSmile53...

  • Page 13: Basic Operation

    Basic Operation Introduction Front View 3.5” TFT LCD Charging with touch indicator LED screen Charging: Red Full: Green Rear View Stylus Speaker System power switch I/O interface GPSmile53...

  • Page 14: Left Side

    Left Side External Antenna port USB port Right Side Stylus SD card slot Reset button Top View Power button Menu button Note: The Menu button is only functional during GPS navigation. GPSmile53...

  • Page 15: Getting Started

    Getting Started If you are a first-time system user, the following explanations will help you quickly understand the system operations, and experience the system’s powerful and convenient functions. SD memory card installation This unit is equipped with a SD memory card slot; you can purchase SD (Secure Digital) Cards to expand the memory capacity.

  • Page 16: Using The Stylus

    Using the stylus This unit can be controlled easily though the touch screen. The stylus is an assist tool for operating this unit and is concealed in a pen slot at the rear. Pull out to use. Stylus I/O interface The I/O interface has five pins, and each pin function is described as below.

  • Page 17: Charging

    Charging Using Home / Travel adapter: Before using the device for the first time, we strongly suggest you use a fully charged battery. Insert the USB connector into the unit. Plug the adapter into a power outlet. GPSmile53...

  • Page 18: Using The Car Charger

    Using the car charger: While using the device in a vehicle, use the included car charger for long periods of usage. Plug in the small plug into the power jack on the rear of the in vehicle bracket. Insert the other end into the cigarette lighter. GPSmile53...
  • Page 19 This device uses a built-in rechargeable battery, please note the following: • Please do not charge in a hot environment, such as on a balcony or expose to direct sunlight. • Do not wait until the battery is depleted to recharge. •...

  • Page 20: Using The In Vehicle Bracket

    Using the In Vehicle Bracket The included in vehicle bracket set can be securely suctioned on the front windshield, or using the adhesive plate, securing on top of the glove compartment. This device will effectively secure the GPS unit in the vehicle. Follow the procedures below to secure the bracket: Follow the arrows and stable the unit into the in-vehicle bracket fitting holes to secure.
  • Page 21 Bend the bracket support to a proper angle. Suction the vehicle bracket securely to the windshield, ensuring its base is resting firmly on the dashboard. Follow the directions to insert the bracket into the slots on the bracket, and slide to fix the set The in vehicle bracket assembly is complete.

  • Page 22: Operating Methods

    Operating Methods Startup For first time use, please turn the system power switch at the rear side On. Press and hold the power button for about two seconds to turn on the power. Note: Before the first time use, please switch the system power on. Shutdown While power is on, press the power button to turn off power.

  • Page 23: Using Functions

    Using Functions During the first startup, the screen will show the main screen consisting of four functions: navigation, music, photo, and settings. Directly select the icon onscreen to use the function. Loads the navigation program and navigation screen Note: If the SD card with navigator software is inserted, the system will enter GPS function automatically after startup.

  • Page 24: Function Menu

    Function Menu Entering the Operation Menu Under the navigation screen, press the Menu button to enter the operational menu. Menu button GPSmile53...

  • Page 25: Music Playback Function

    Music Playback Function This unit has an MP3 Music Playback function that is capable of playing back MP3 files stored on SD memory cards. Storing MP3 files onto SD memory cards On your computer, you must first convert the music from an audio CD into MP3 files, then save them onto the SD memory card.
  • Page 26 The Music Playback Window. Use the buttons to control each playback function. Play Progress bar Stop Timer Previous Music Status Repeat mode Repeat mode indicator Next Volume display Battery indicator Time Exit GPSmile53...

  • Page 27: Image Browsing Function

    Image Browsing Function The system has an Image Browsing function that is capable of displaying images/photographs stored on SD memory cards. All the files need to be stored under the Image directory, and the file format needs to be “*.jpg”. Insert the SD memory card with stored image files into the SD memory card slot on the unit.

  • Page 28: Other

    Other The other function gives you the ability to adjust the basic system options, including time settings, volume control, screen calibration, startup message, backlight setting, version info, and GPS reset etc. You can modify the settings according to personal preferences. Video Video can read the film with the following data format: __.wmv, __.asf.
  • Page 29 On the sub menu, select [ Video ] icon to enter. Use the arrow key right/left to forward/backward the film. Video Title Play Video status Stop Screen Forward Volume Next Time Full Screen Exit Previous Timer / Total Video Time Battery GPSmile53...
  • Page 30 Full Screen Mode Double click at anywhere on the screen to exit full screen mode Press "X" to exit the film viewer. GPSmile53...

  • Page 31: Ebook

    eBook eBook can only read file with __txt format, please save them onto the SD memory card in a folder named "ebook". 1. Insert the SD memory card with ebook files into the SD memory card slot on the unit. 2.
  • Page 32 4. Use the arrow key up and down to change between books. eBook Title Next Screen Page up Time Page down Exit Page Status Previous Battery 5. Press "X" to exit the ebook reader. GPSmile53...

  • Page 33: Setting

    Setting Time 1. After system startup, select [Other] from the main screen to go into the System Settings window. GPSmile53...

  • Page 34: Volume

    2. Select from the Hour pull down menu and choose the correct value. 3. Select from the Minute pull down menu and choose the correct value. Hour Minute 4. Select to confirm, or select to keep original settings. 5. Select to return to main menu screen.

  • Page 35: Startup Message

    Startup Message Under the settings window, check on the Warning Voice to (check / uncheck)for whether the startup message is to be broadcasted. GPSmile53...

  • Page 36: Stylus Adjustment

    Stylus Adjustment Control of the unit is accomplished primarily through the stylus by touching/writing on the screen. If the system cannot correctly identify your stylus’ input, please run through the screen calibration procedure. From the settings window, select [Stylus Adjustment] to start the screen calibration procedure.

  • Page 37: Backlight Setting

    Backlight Setting The backlight setting will adjust the brightness of the backlight and the auto-off time. Under the setting window, select Backlight to enter the backlight setting window. Select the time to turn off backlight when running off the battery / external power (1 min, 3 min, 5 min, 10 min, 30 min, Always).

  • Page 38: Version

    Version 1. Under the setting window, select Version to enter the version window. 2. The screen display will show the version information. 3. Select to exit the Version screen. GPSmile53...

  • Page 39: About

    About 1. Under the Other window, select About to enter the about page. 2. The screen display will show instructions for all function. GPSmile53...
  • Page 40 3. Select to exit the about screen. GPSmile53...

  • Page 41: Using The Cd

    Using the CD Troubleshooting System reset Only under extremely few circumstances will it be required to reboot the system. Reset your system if the following situations occur: Heavy lag experienced with screen refresh or operations, resulting in an inoperable system. Cannot turn off the system with power button.

  • Page 42: Quick Troubleshooting

    Quick Troubleshooting Power Cannot startup Insufficient battery charge, please connect to the adapter and restart system. Screen No screen After powering up, if the system does not displayed respond, try the following: 1. Connect adapter, restart system. 2. Reset system. Display speed 1.

  • Page 43: Keep Away From Strong Magnetic Fields

    Keep away from strong magnetic fields When using or storing, please keep away from strong electromagnetic/radioactive or magnetic field equipment. Operating temperature The products operating temperature is between 0°C ~ 40°C; please do not operate under extreme temperatures. Avoid exposure to sunlight Please avoid long periods of sunlight or high temperature exposure.

  • Page 44: Appendix

    Appendix Specifications Integrated GPS Receiver 20 parallel channels •Reacquisition : 0.1 sec. •Hot start : 1 sec. Acquisition Time •Warm start : 38 sec. •Cold start : 42 sec. Position: 10 m. for 90% Accuracy Velocity: 0.1 m/s GPS antenna Built-in patch antenna Companion CD: Adobe Acrobat Reader®...

  • Page 45: Federal Regulations

    Federal regulations This equipment is in compliance with the essential requirements and other relevant provisions of directive 1999/5/EC. GPSmile53...
