HOLUX M-1000B Bluetooth GPS Receiver User's Manual
M-1000B

Bluetooth GPS Receiver

User's Guide
June,2007
Rev.A
HOLUX
Technology Inc.
1F, No. 30, R&D Rd. II, HsinChu City 300, Science-based Industrial Park, Taiwan
TEL: 03-6687000 FAX: 03-6687111
Website: www.holux.com
All Right Reserved

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M-1000B and is the answer not in the manual?

Questions and answers

Summary of Contents for Holux M-1000B

  • Page 1: Bluetooth Gps Receiver

    HOLUX M-1000B Bluetooth GPS Receiver User’s Manual M-1000B Bluetooth GPS Receiver User’s Guide June,2007 Rev.A HOLUX Technology Inc. 1F, No. 30, R&D Rd. II, HsinChu City 300, Science-based Industrial Park, Taiwan TEL: 03-6687000 FAX: 03-6687111 Website: www.holux.com All Right Reserved...
  • Page 2: Table Of Contents

    HOLUX M-1000B Bluetooth GPS Receiver Manual TABLE OF CONTENTS ...2 OVERVIEW ...3 PACKING LIST ...4 MAIN FEATURES ...5 4.1. ASIC PECIFICATION 4.2. CQUISITION 4.3. ECEIVER CCURACY 4.4..6 IMITATION 4.5..6 OWER UPPLY 4.6. UTPUT AND NTERFACE 4.7..7 HYSICAL 4.8.
  • Page 3: Overview

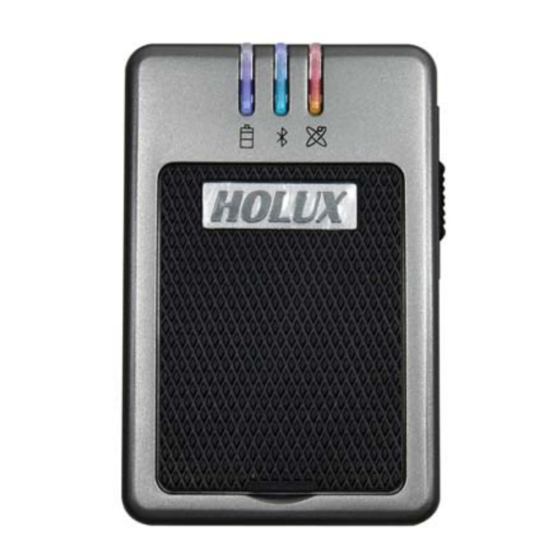

    HOLUX M-1000B Bluetooth GPS Receiver Manual 1. Overview The HOLUX M-1000B Bluetooth GPS Receiver (Fig. 1) is a total solution GPS receiver with Bluetooth, UART interface and built-in rechargeable battery for high sensitivity to tracking signal. M-1000B design is based on Media Tek Inc.(MTK) GPS solution-MT3318 low power Architecture.
  • Page 4: Packing List

    HOLUX M-1000B Bluetooth GPS Receiver Manual 2. Packing List Thank you for purchasing the M-1000B Bluetooth GPS Receiver. Before you start, make sure that the following items are included in your package. If any of these items are missing, please contact your original local HOLUX dealer or distributor.
  • Page 5: A Cquisition

    HOLUX M-1000B Bluetooth GPS Receiver Manual 3. Main features Built in MTK MT3318 Low power consumption GPS chipset. 32 parallel satellite-tracking channels for fast acquisition and reacquisition. Superior sensitivity up to -159 dBm. Built-in WAAS/EGNOS Demodulator without any additional hardware.
  • Page 6: Acquisition Time

    External Voltage: 5V DC +/-5% Batteries: Main Power: Built-in rechargeable Lithium-ion for system power. Working voltage: 40~50mA (Normal mode). Auto Power Saving mode. Circuit protection on M-1000B when over-temperature condition 50℃ occurs. 4.6. Output and Interface Output I. Output protocol Baud Rate: 38400 bps Data bit:...
  • Page 7: Physical

    HOLUX M-1000B Bluetooth GPS Receiver Manual GPGSV (1time /5 sec.), GPRMC (1time /1 sec.), GPVTG (1 time/1 sec), (GLL, or MTK NMEA Command for optional). III. Datum: WGS84. Input/ Output Interface: I. Compatible Bluetooth Serial Port Profile (SPP), Version1.2 and class 2(up to 10 meter range).
  • Page 8: Getting Started

    HOLUX M-1000B Bluetooth GPS Receiver Manual 5. Getting Started STEP 1. Charge Battery Please charge battery till LED off for the first time. Power cable plug in Power cable connect to power socket ↓ Charge Battery Battery indicator light: Power too low --------...
  • Page 9: Hardware Description

    Steady orange Search GPS -- LED on ↓ Orange Position Fixed -- LED blinking 5.1. Hardware Description 1). M-1000B Body description see Fig. 2: LED of GPS (Orange) Bluetooth LED (Blue) LED of Battery(Red / Green) M-1000B Turn off power ↓...
  • Page 10 HOLUX M-1000B Bluetooth GPS Receiver Manual 2). LED status : SYMBOL COLOR Blue Bluetooth Green Battery Orange 3). Power Switch : a. Power on, Orange b. Power off, Orange 4). Power Jack & Data Port, see Fig.3 Jack type: Mating face of 5 pin Mini USB Type B female.
  • Page 11 5). Optional accessories, and connector description, see Fig. 4 PC/Notebook USB port USB Cable (GR230-A2) Mini USB Notics : This data cable is designed by HOLUX specially for G-mouse function, can’t be replaced by common USB cable. The ordinary USB cable can only provide the charging function. (Fig.4)
  • Page 12: Bluetooth Device Connection Installation

    HOLUX M-1000B Bluetooth GPS Receiver Manual 5.2. Bluetooth device connection installation The following is the steps of software installation to setup on PDA, DELL AXIM x51v with Bluetooth Manager. For other PDA or laptop device, the steps might vary. 1. In Pocket PC setting system panel, enable “manage GPS automatically”.
  • Page 13: Installation Of Mini Gps Viewer Program

    HOLUX M-1000B Bluetooth GPS Receiver Manual 6. Go to the “COM ports” panel to tap “New Outgoing Port”, choose “HOLUX_M-1000B” device and tap “Next”. 7. Select the COM port, then tap finish, it will show as right figure, and tap “OK”...
  • Page 14 GPS receiver is over 0.5 hour power off but you are no longer in the previous position , it takes more time for the GPS receiver to get GPS position fix soon. We suggest you can click “Cold Start” or “Warm start”...
  • Page 15: Optional Cable Accessory

    II. Connect GR-230-A2 USB data cable to computer. System will search new hardware and install the driver automatically III. Connect M-1000B GPS receiver with USB data cable. 7.3 Important Verify the COM port to start using your own navigation software.
  • Page 16: Warranty

    HOLUX M-1000B Bluetooth GPS Receiver Manual 8. Warranty The M-1000B is warranted to be free from defects in material and functions for a period of one year from the date of purchase. Any failure of this product within this period under normal conditions will be replaced at no charge to the customers.
  • Page 17: Troubleshooting

    HOLUX M-1000B Bluetooth GPS Receiver Manual Troubleshooting Problems Possible Reasons Weak or no GPS signal at the place of M-1000B No GPS output but GPS timer is The ephemeris and almanac data counting in GPS memory is no longer valid after no use for a long time.
  • Page 18: Federal Communications Commission (Fcc) Statement

    HOLUX M-1000B Bluetooth GPS Receiver Manual Federal Communications Commission (FCC) Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
