Summary of Contents for KitchenAid KSRS25QAAL10

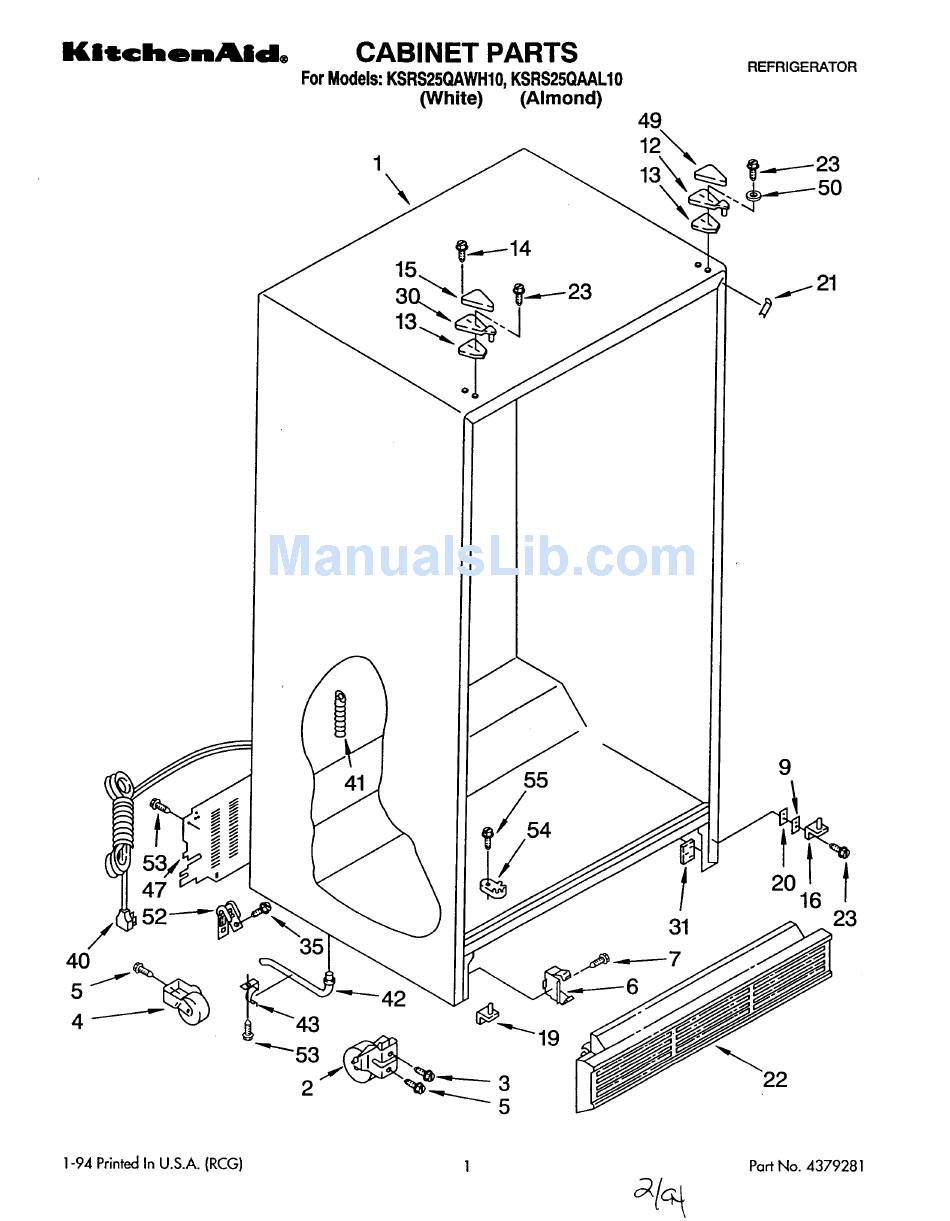

- Page 2 Cabinet (Not A Serviceable Part) 2152011 Front Roller (2) 489393 Screw 981122 Roller (Rear) (2) 488454 Screw 2155013 Clip, Grille 489242 Screw 836196 Shim 1117937 Hinge Top (R.H.) 1123515 Shim, Hinge Top 489284 Screw Hinge Cover 1129262 White 2150343 Almond 2155321 Hinge Bottom (R.H) 2155323...
- Page 4 Liner (Not A Serviceable Part) 985468 Escutcheon, Meat Pan Control 984102 Slide Meat Pan Control 992358 Foam Pad 1125675 Stud, Pan Cover 1110718 Stud (9) 1116794 Ladder, Shelf (2) 658944 Stud, Shelf (2) 486298 Screw (2) 487539 Screw 487559 Screw (2) 941839 Plug, Hole 1126137...
- Page 6 1125597 Shelf Assembly, Cantilever (2) 1125593 Glass, Shelf 1125594 Retainer, Glass 1125786 Gasket, Front 2161771 Cover, Pan Assembly (2) 1125705 Gasket, Cover (Front) 1125706 Gasket, Cover (Rear) 1125822 Glass, Cover (2) 2161760 Pan Shelf & Slide Assembly (Includes 13, 14, & 15) 1125595 Glass, Shelf 1125814...
- Page 8 Liner (Not A Serviceable Part) 1125824 Shelf, Top Compartment 1125657 Door, Ice Compartment 946356 Stud, R.S. Front 842534 Clip, Air Duct (2) 1115317 Support, Stud (4) 946355 Support, Stud (2) 1110779 Grommet (2) Slide, Container 1119237 Left Side 1119293 Right Side 2155683 Shelf 489100...
- Page 10 1118386 Bracket, Motor 2155263 Motor, Dispenser 2152713 Soleniod Assembly 2149100 Guide, Solenoid 1115374 Clip, Wiring 2149192 Wiring Assembly, Ice Dispenser 489399 Screw 983663 Coupling, Motor 489242 Screw 851067 Socket, Light 1115339 Cover, Motor 2152702 Ice Container 983668 Coupling, Conveyor 1118480 Stop, Cone 1119074 Feeder Cone...
- Page 12 Refrigerator Door (Includes #7) 2159404 White 2159405 Almond 1117999 Load, Lock (4) 2159136 Door, Compartment 1125981 Holder, Beverage 1125936 Butter Dish Insert, Handle 1117948 White 1117949 Almond 2159079 Door Gasket, Magnetic (Service) 1107341 End Cap, Handle 489075 Screw 1107215 Handle Assembly 487909 Screw 1107651...
- Page 14 Freezer Door (Includes #8 And Dispenser Front Parts) 2159351 White 2159352 Almond 1107215 Handle Assembly 1107341 End Cap (2) 487909 Screw 1107651 Spacer, Handle 489075 Screw 2156016 Shelf Bin (4) 2159078 Door Gasket, Magnetic (Service) Insert, Handle 1117948 White 1117949 Almond 2157603 Trim, Door Shelf...
- Page 16 Housing, Dispenser (Not A Servicable Item) 488687 Screw Tube, Water (See Item #22) Frame, Slides 2152717 White 2152718 Almond Slide, Cube/Crush Switch 2152720 White 2152721 Almond 2157651 Door, Ice 2157650 Door Mechanism Assembly 1120581 Mechanism Delay Grille, Overflow 1126120 White 1126121 Almond 987917...
- Page 18 486692 Speed Nut 1108179 Fan, Blade 2164504 Condenser Assembly 489337 Screw 2155658 Clip, Wire 489019 Screw 934011 Clip, Tube (3) 2161302 Sleeve 2158826 Dampener Strap 943322 Production 938384 Service Cover 1105055 Production 1108115 Service Overload 2162218 Production (Includes Relay) 2154761 Service (Includes Relay) Relay (See Overload) Running Capacitor...
- Page 19 2150347 Union Following Parts Not Illustrated and Optional Parts Not Included 978025 Valve, Access (1/4") 978026 Valve, Access (5/16") 978027 Valve, Access (3/8") 978028 Valve, Access (1/2") 978029 Valve, Access (5/8") 978030 Valve, Access (3/4") 876764 Valve, Access (3/16") REFRIGERANT CHARGE 6.5 OZ. Production Compressor Requires Production Electrical Components.
- Page 21 489084 Screw 836489 Fitting, Water Tube 488878 Clamp, Tube 841707 Insert, Tube 628379 Clip, Fuse 2155294 Tube, Water 1106508 Seal, Gasket 489242 Screw 2002182 Valve, Solenoid 627018 Nut, Compression 2155247 Tube, Water Inlet 489385 Tube Clamp 628355 Cover 488649 Screw 628228 Mold &...
- Page 23 2155594 Fan Scroll 2155590 Retainer, Fan Motor 2161231 Air Scoop 489176 Screw 2155575 Air Duct Freezer 2149299 Fan Motor 2169142 Fan Blade 2155589 Fan Grommet (2) 1115381 Duct, Icemaker 2161327 Harness, Fan Evaporator, And Heater, Bi-Metal 2155789 Gasket Cover 2155774 Wire Tie 2155782 Gasket...
- Page 25 2169149 Control Box 1115241 Tube Barrier, Thermostat 489214 Screw 1123923 Light Switch 2162046 Defrost Timer 489398 Screw (2) 940014 Hole Plug 2161282 Thermostat Assembly 1126028 Window 1125592 Slide, Air Control 1125591 Slide, Thermostat 489242 Screw 1118072 Light Bar 2161306 Pivot Arm 627068 Screw 1110690...
- Page 26 799833 Kit, Evaporator Repair (Aluminum Epoxy) 833938 Kit, Terminal Connector 515393 Transformer (115-230 Volts) 2152710 Ice Container Asm 2149072 Ice Crusher Asm Refinishing Material 799340 Enamel, Black (1 Qt. Uncut) 799344 Enamel, White (1 Qt. Uncut) 978883 Enamel, Almond (1 Qt. Uncut) LITERATURE PARTS LIT2161900 Use And Care Guide...
