KitchenAid KSSS36FMB00 Parts List
36" built in refrigerator
Hide thumbs
Also See for KSSS36FMB00:
- Use & care manual (60 pages) ,
- Use & care manual (60 pages) ,
- Installation instructions manual (72 pages)
Related Manuals for KitchenAid KSSS36FMB00
Summary of Contents for KitchenAid KSSS36FMB00
- Page 1 CABINET PARTS 36" BUILT IN REFRIGERATOR For Models: KSSS36FMB00, KSSS36FMX00 (Black) (Etched Aluminum) 4−04 Litho In U.S.A. (mek) Part No. 8198475...
-
Page 2: Cabinet Parts

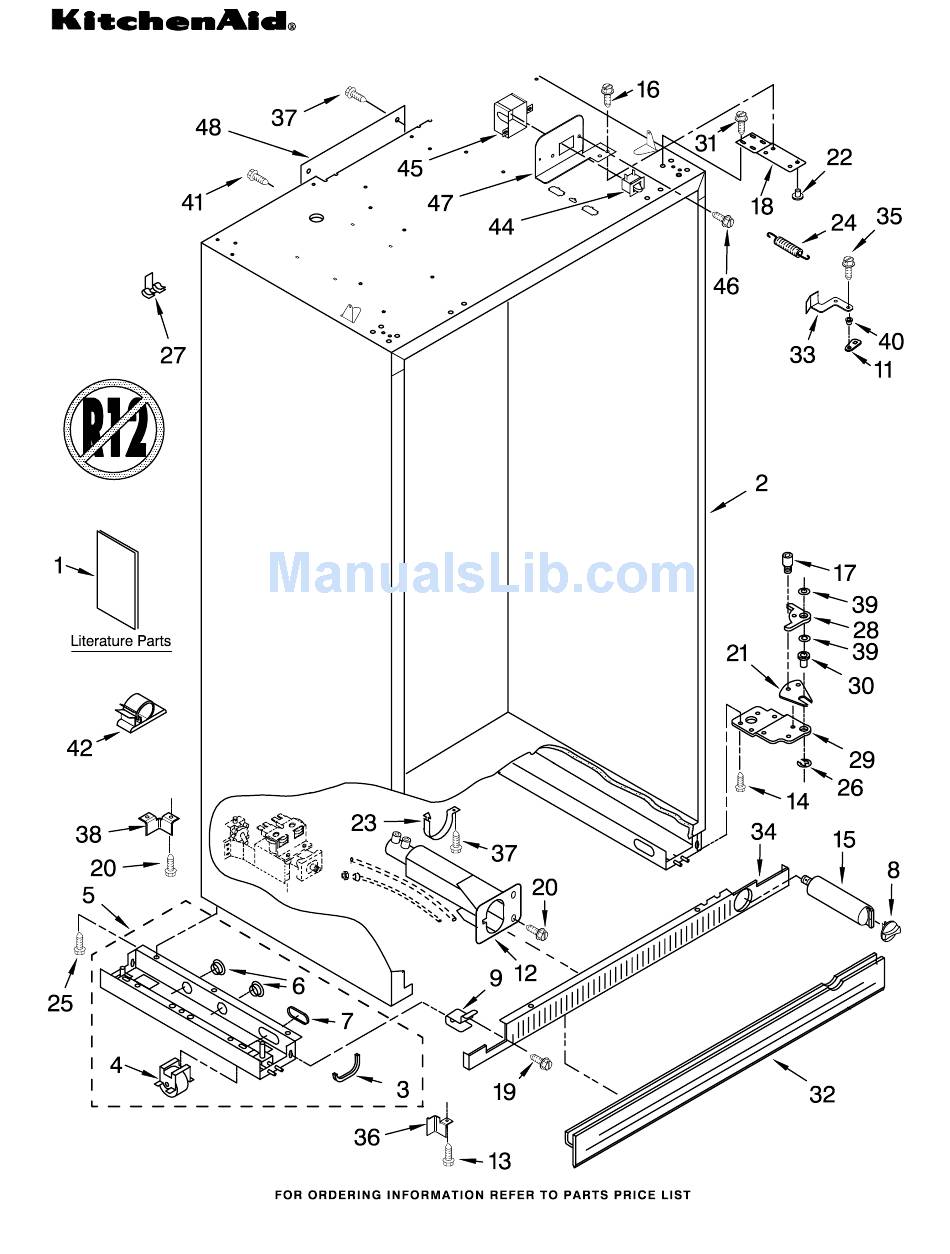

CABINET PARTS For Models: KSSS36FMB00, KSSS36FMX00 (Black) (Etched Aluminum) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 488500 Screw Extension Arm, Literature Parts 3400525 Screw Door Closer LIT2266808 Use & Care Guide 2255709 Filter, Water 2221095 Right LIT2266816 Energy Label 489399 Screw 2221094 Left LIT2300021 Service &... - Page 3 CABINET TRIM PARTS For Models: KSSS36FMB00, KSSS36FMX00 (Black) (Etched Aluminum) Illus. Part DESCRIPTION Cabinet, Trim (Right Side) 2222552B Black 2222552X Etched Aluminum 486194 Screw 1163283 Screw 2254724 Cabinet, Trim (Bottom) 486194 Screw 2257366 Cabinet, Trim Top Cabinet Trim (Left Side) 2222553B Black 2222553X Etched Aluminum 2005925 Seal−Trim, Side...
-
Page 4: Freezer Shelf Parts
FREEZER SHELF PARTS For Models: KSSS36FMB00, KSSS36FMX00 (Black) (Etched Aluminum) Illus. Part DESCRIPTION 2256203 Shelf, Wire (3) 2266955 Spacer, Ice Door 2259002 Shelf, Fixed (2) 2259081 Basket (2) 2256269 Front, Basket Slide, Basket 2259317 Right Side 2259318 Left Side 8533928 Screw 2266933 Door, Ice 8533929 Screw 2266930 Ice Bucket... -
Page 5: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Models: KSSS36FMB00, KSSS36FMX00 (Black) (Etched Aluminum) 8198475... - Page 6 REFRIGERATOR LINER PARTS For Models: KSSS36FMB00, KSSS36FMX00 (Black) (Etched Aluminum) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2208970 Air Duct 2209204 Clip, Thermistor 2259077 Ladder, Shelf (2) 520965 Screw Support, Ladder (8) 2006475 Screw 487539 Screw 2257528 Lid, Baffle 2257526 Baffle Control Assembly 2171846 Release Valve...
-
Page 7: Control Panel Parts
CONTROL PANEL PARTS For Models: KSSS36FMB00, KSSS36FMX00 (Black) (Etched Aluminum) Illus. Part DESCRIPTION 2215715 Control Box 2215670 Insert, Control 2252110 Circuit Board, Housing Control 2187424 Control Box Wire Harness 2258914 Panel, Control 2221121 Support, Control 489006 Screw (2) 2252067 Pad, Touch 2252068 Display Board, Temperature Controlled Pan... - Page 8 TOP GRILLE AND UNIT COVER PARTS For Models: KSSS36FMB00, KSSS36FMX00 (Black) (Etched Aluminum) Illus. Part DESCRIPTION Top Grille Assembly 2257401B Black 2257401X Etched Aluminum 2259320 Cover, Unit 487415 Screw 2256466 Panel, Back 2259095 Cover, Unit Front 2215910 Grommet, Flexible 1157158 Screw 2187429 Wire Assembly, RC/FC Light Switch 489348 Clamp, Tube...
-
Page 9: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Models: KSSS36FMB00, KSSS36FMX00 (Black) (Etched Aluminum) 8198475... - Page 10 REFRIGERATOR SHELF PARTS For Models: KSSS36FMB00, KSSS36FMX00 (Black) (Etched Aluminum) Illus. Part DESCRIPTION 2222591 Shelf Assembly 2179404 Rack, Wine 2221071 Egg Bin Assembly 2256276 Glass, Meat Pan Cover 2256426 Glass, Crisper 2257611 Trim, Side Glass 2169935 Cover 2257581 Trim, Rear Glass 2252411 Crisper Pan (2) Slide, Meat Pan 2256246 Right Side...
- Page 11 FREEZER LINER AND AIR FLOW PARTS For Models: KSSS36FMB00, KSSS36FMX00 (Black) (Etched Aluminum) 8198475...
- Page 12 FREEZER LINER AND AIR FLOW PARTS For Models: KSSS36FMB00, KSSS36FMX00 (Black) (Etched Aluminum) Illus. Part DESCRIPTION 2259385 Fan Motor 488687 Screw 2169142 Fan Blade 2155590 Retainer, Fan Motor 2302816 Gasket, Cover 2208968 Grommet 486194 Screw 8281185 Screw 488500 Screw, Ground 2162085 Socket, Light (2) 488937 Clamp, Nylon 2255743 Light Bulb (2)
-
Page 13: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: KSSS36FMB00, KSSS36FMX00 (Black) (Etched Aluminum) 8198475... - Page 14 REFRIGERATOR DOOR PARTS For Models: KSSS36FMB00, KSSS36FMX00 (Black) (Etched Aluminum) Illus. Part DESCRIPTION 2252329 Refrigerator Door Panel (Includes Item 9) 2266854 Hinge Assembly, 2256381 Spacer−Door, 489282 Screw 2256389 Hinge Assembly, Bottom 2222795 Rail, Utility Lid 2222981 Gasket, Utility 2222810 Door Gasket, Magnetic Handle, Door 2256473B Black...
-
Page 15: Freezer Door Parts
FREEZER DOOR PARTS For Models: KSSS36FMB00, KSSS36FMX00 (Black) (Etched Aluminum) 8198475... - Page 16 FREEZER DOOR PARTS For Models: KSSS36FMB00, KSSS36FMX00 (Black) (Etched Aluminum) Illus. Part DESCRIPTION 2252326 Freezer Door Panel (Includes Item 9) 2256381 Spacer, Top Door 2256390 Hinge, Bottom 489282 Screw 2266854 Hinge, Top Top & Bottom 2222813 Door Gasket, Magnetic 2001230 Washer, Nylon 2257637 Spacer, Door (Bottom) Screw...
- Page 17 UPPER UNIT PARTS For Models: KSSS36FMB00, KSSS36FMX00 (Black) (Etched Aluminum) 8198475...
- Page 18 UPPER UNIT PARTS For Models: KSSS36FMB00, KSSS36FMX00 (Black) (Etched Aluminum) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2266802 Switch, Power 2187679 Wire, Jumper 2221559 Inverter Box Disconnect 487522 Screw 489373 Screw, Compressor 487294 Screw, Ground 857547 Wire Tie (2) Mounting (4) 2187625 Wiring Harness, 2252363 Drier...
- Page 19 LOWER UNIT AND TUBE PARTS For Models: KSSS36FMB00, KSSS36FMX00 (Black) (Etched Aluminum) 8198475...
- Page 20 LOWER UNIT AND TUBE PARTS For Models: KSSS36FMB00, KSSS36FMX00 (Black) (Etched Aluminum) Illus. Part DESCRIPTION 2196155 Defrost Bi−Metal 2187520 Wire Harness 486194 Screw 2215508 Bracket 2259244 Side Support 2259303 Suction Tube 2300191 Tube, Connect (Drier) 2259329 Heater, Drain Pan 2209450 Hanger, Heater 2005908 Shield, Drain Pan 2259352 Tube, Discharge 2213442 Thermistor...
-
