Installation and Assembly

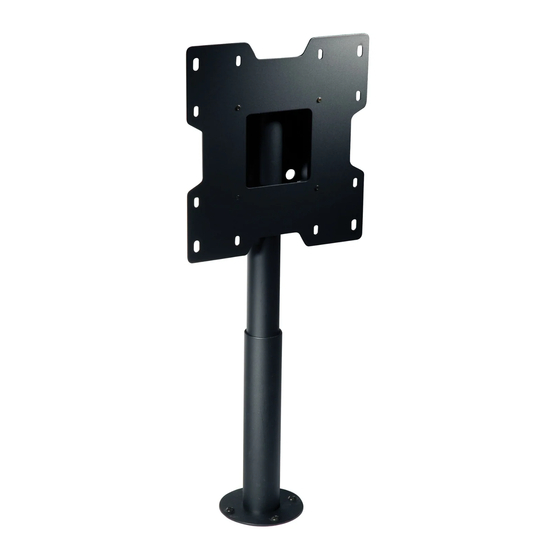

Desktop Swivel Mount
Model: HP432-002, HP432-002-S, HP432-002-GB
Max Load Capacity: 80 lbs (36.3 kg)
3215 W. North Ave. • Melrose Park, IL 60160 • (800) 865-2112 or (708) 865-8870 • Fax: (708) 865-2941 • www.peerlessmounts.com
ISSUED: 8-29-07 SHEET #: 124-9102-3 8-13-08
Advertisement
Related Manuals for PEERLESS HP432-002
Summary of Contents for PEERLESS HP432-002
- Page 1 Installation and Assembly Desktop Swivel Mount Model: HP432-002, HP432-002-S, HP432-002-GB Max Load Capacity: 80 lbs (36.3 kg) 3215 W. North Ave. • Melrose Park, IL 60160 • (800) 865-2112 or (708) 865-8870 • Fax: (708) 865-2941 • www.peerlessmounts.com ISSUED: 8-29-07 SHEET #: 124-9102-3 8-13-08...
- Page 2 Note: Read entire instruction sheet before you start installation and assembly. WARNING • Do not begin to install your Peerless product until you have read and understood the instructions and warnings contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, please call Peerless customer care at 1-800-865-2112.
-
Page 3: Parts List
Parts List HP432-002 HP432-002-GB HP432-002-S Description QTY. Part # adapter plate 095-1322 095-P1322 095-4322 adapter box 124-1794 124-P1794 124-4794 swivel tube 124-1792 124-P1792 124-4792 base tube 124-1796 124-P1796 124-4796 bushing 590-1088 590-1088 590-1088 M5 x 6 mm socket pin screw 520-1114 520-1114 520-2062... - Page 4 CAUTION • Installations to desktops that have a gap between two supporting boards are not acceptable mounting surfaces for the HP line of desktop swivel mounts. Determine mount position on desktop and using Insert swivel tube (C) into base tube (D), adjust the base tube (D) as a template, mark and drill swivel tube to desired height and secure using four 5/16"...
- Page 5 ISSUED: 8-29-07 SHEET #: 124-9102-3 08-13-08 Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-865-2112 or 708-865-8870. © 2008, Peerless Industries, Inc. All rights reserved. All other brand and product names are trademarks or registered trademarks of their respective owners.
