Video Connections

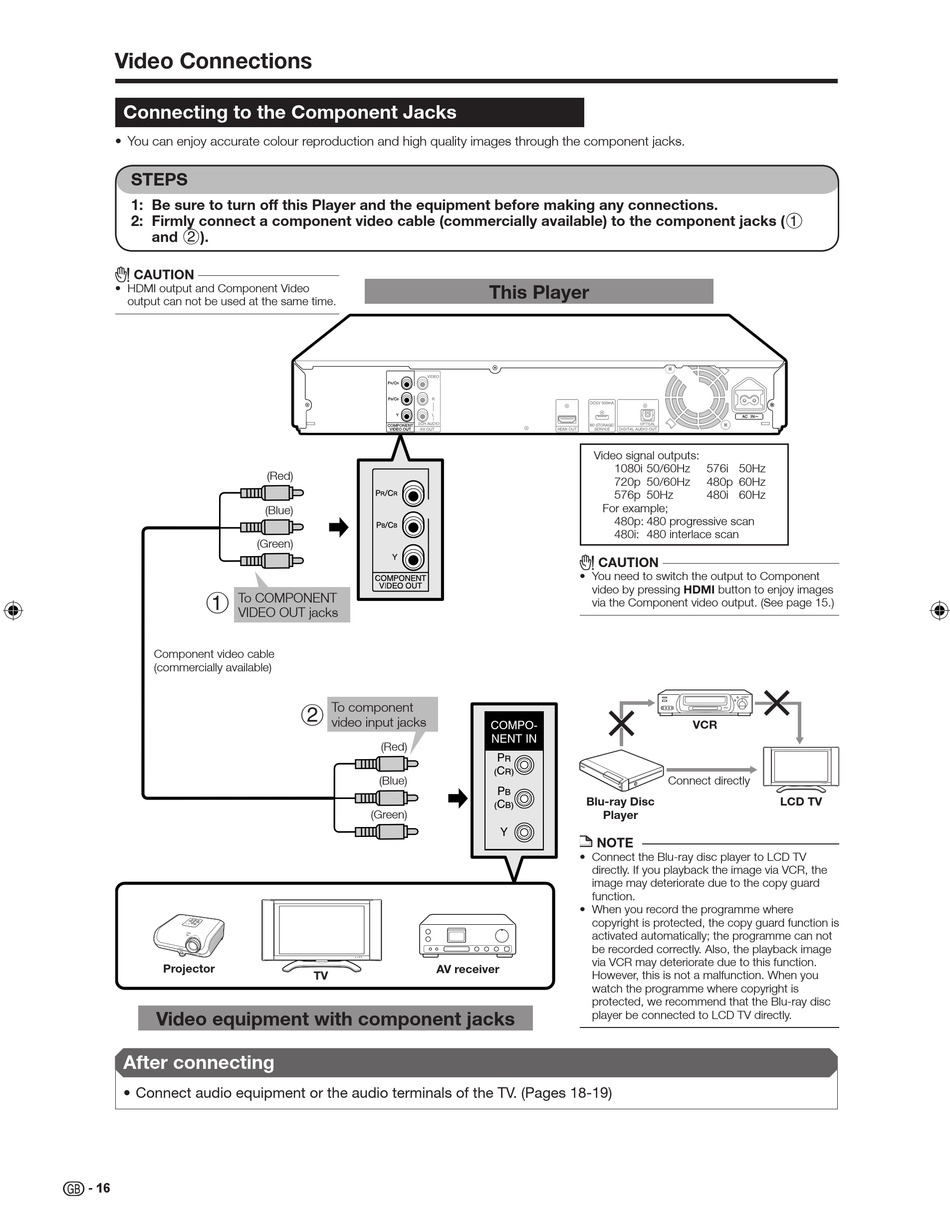

Connecting to the Component Jacks

You can enjoy accurate colour reproduction and high quality images through the component jacks.
STEPS
1:
Be sure to turn off this Player and the equipment before making any connections.
2:
Firmly connect a component video cable (commercially available) to the component jacks (1
and 2).
CAUTION
HDMI output and Component Video
output can not be used at the same time.
1
To COMPONENT
VIDEO OUT jacks
Component video cable
(commercially available)
Projector
Video equipment with component jacks
After connecting
Connect audio equipment or the audio terminals of the TV. (Pages 18-19)
16
(Red)
(Blue)
(Green)
To component
2
video input jacks
(Red)
(Blue)
(Green)
TV
This Player
Video signal outputs:
You need to switch the output to Component
video by pressing HDMI button to enjoy images
via the Component video output. (See page 15.)
COMPO-
NENT IN
P
R
C
(
R)
P
B
Blu-ray Disc
C
(
B)
Y
Connect the Blu-ray disc player to LCD TV
directly. If you playback the image via VCR, the
image may deteriorate due to the copy guard
function.
When you record the programme where
copyright is protected, the copy guard function is
activated automatically; the programme can not
be recorded correctly. Also, the playback image
via VCR may deteriorate due to this function.
AV receiver
However, this is not a malfunction. When you
watch the programme where copyright is
protected, we recommend that the Blu-ray disc
player be connected to LCD TV directly.
1080i 50/60Hz
576i 50Hz
720p 50/60Hz
480p 60Hz
576p 50Hz
480i 60Hz
For example;
480p: 480 progressive scan
480i: 480 interlace scan
CAUTION
VCR
Connect directly
Player
NOTE
LCD TV
