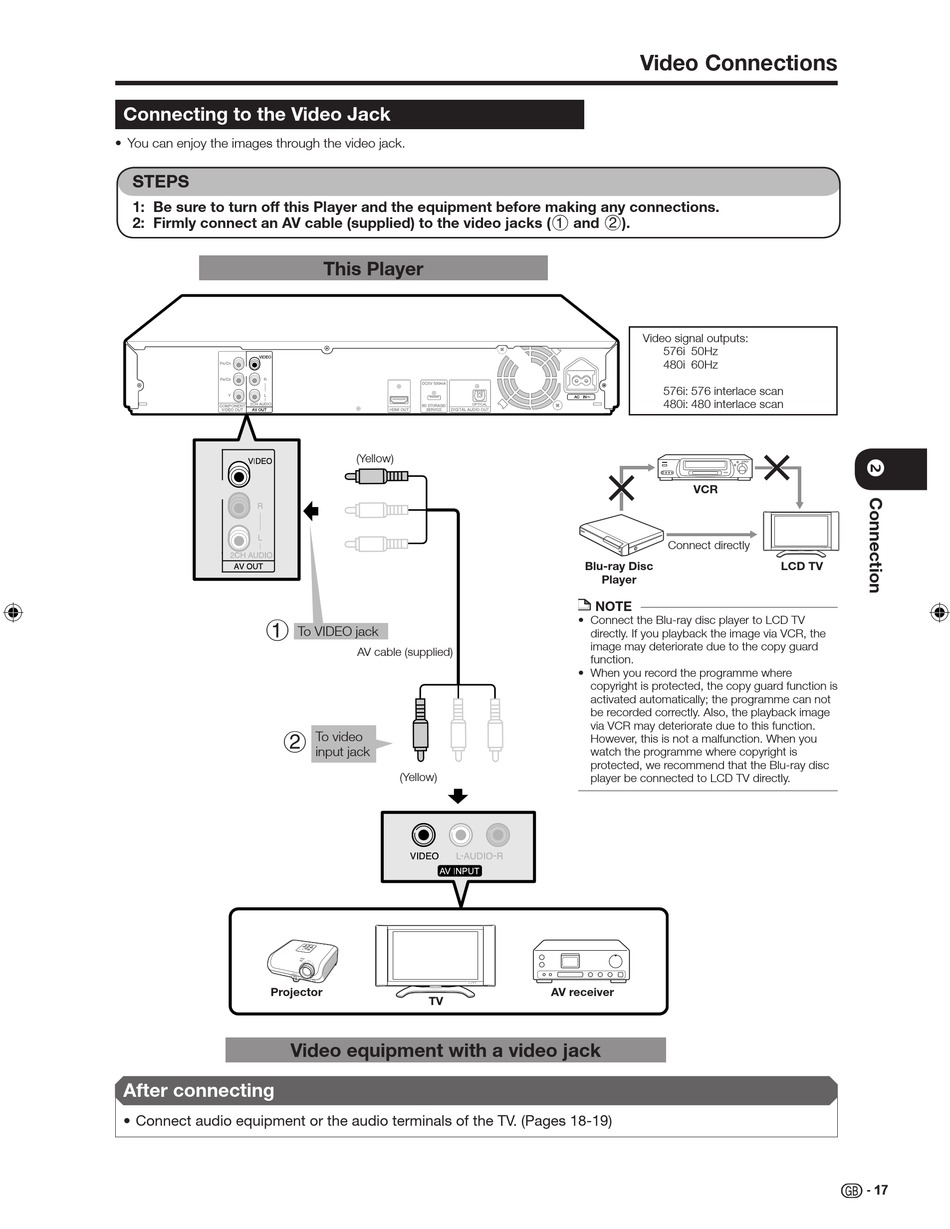

Connecting to the Video Jack

•
You can enjoy the images through the video jack.
STEPS
1:
Be sure to turn off this Player and the equipment before making any connections.
Firmly connect an AV cable (supplied) to the video jacks (1 and 2).
2:
1
Projector
After connecting
•
Connect audio equipment or the audio terminals of the TV. (Pages 18-19)
This Player
(Yellow)
To VIDEO jack
AV cable (supplied)
2
To video
input jack
(Yellow)
TV
Video equipment with a video jack

Video Connections

Video signal outputs:
576i 50Hz
480i 60Hz
576i: 576 interlace scan
480i: 480 interlace scan
VCR
Connect directly
Blu-ray Disc
Player
NOTE
•
Connect the Blu-ray disc player to LCD TV
directly. If you playback the image via VCR, the
image may deteriorate due to the copy guard
function.
•
When you record the programme where
copyright is protected, the copy guard function is
activated automatically; the programme can not
be recorded correctly. Also, the playback image
via VCR may deteriorate due to this function.
However, this is not a malfunction. When you
watch the programme where copyright is
protected, we recommend that the Blu-ray disc
player be connected to LCD TV directly.
AV receiver
LCD TV
