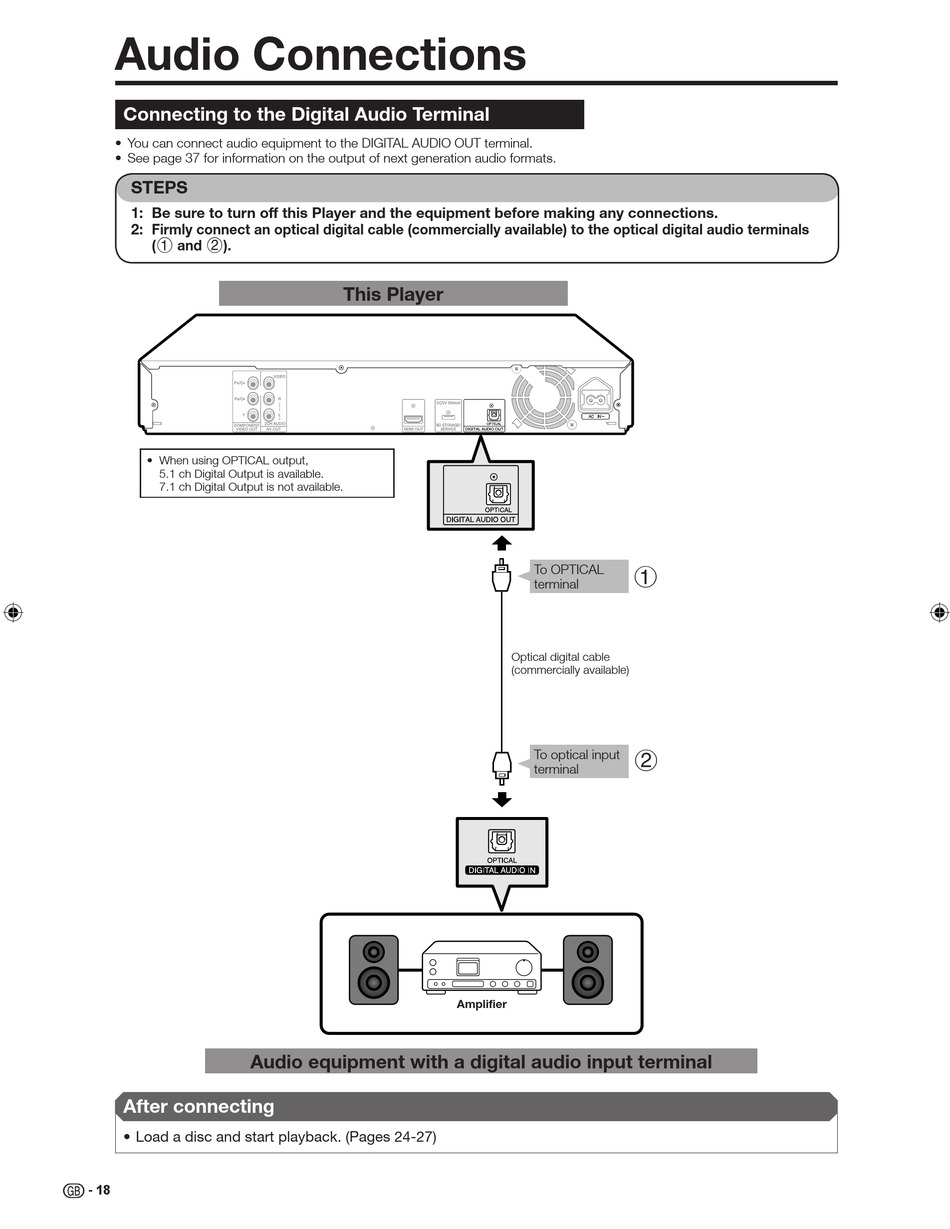

Audio Connections

Connecting to the Digital Audio Terminal

You can connect audio equipment to the DIGITAL AUDIO OUT terminal.
See page 37 for information on the output of next generation audio formats.
STEPS
1:
Be sure to turn off this Player and the equipment before making any connections.
2:
Firmly connect an optical digital cable (commercially available) to the optical digital audio terminals
(1 and 2).
When using OPTICAL output,
5.1 ch Digital Output is available.
7.1 ch Digital Output is not available.
Audio equipment with a digital audio input terminal
After connecting
Load a disc and start playback. (Pages 24-27)
18
This Player
Amplifier
To OPTICAL
1
terminal
Optical digital cable
(commercially available)
To optical input
2
terminal
